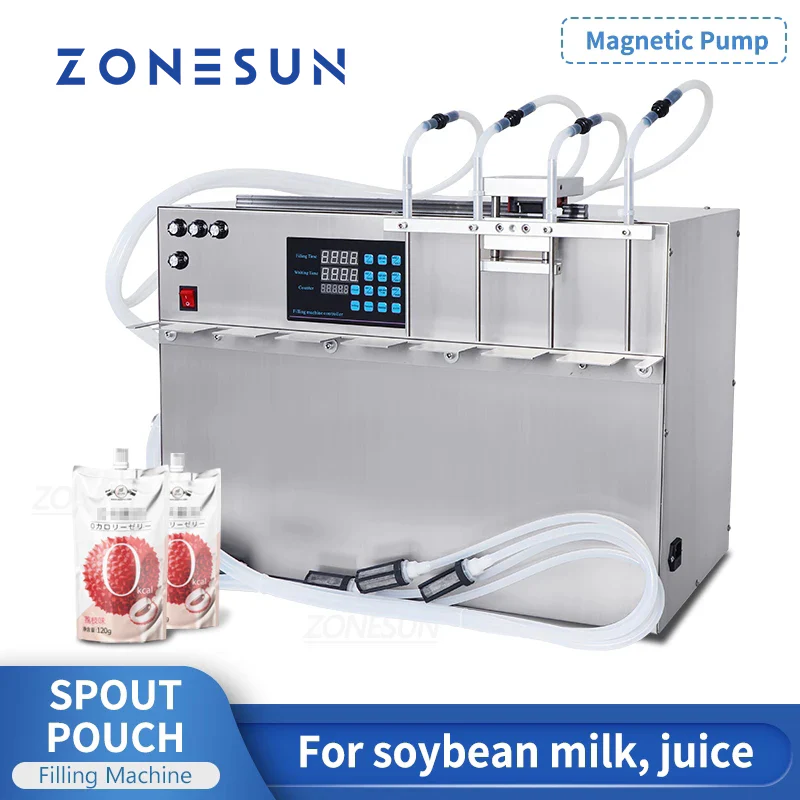

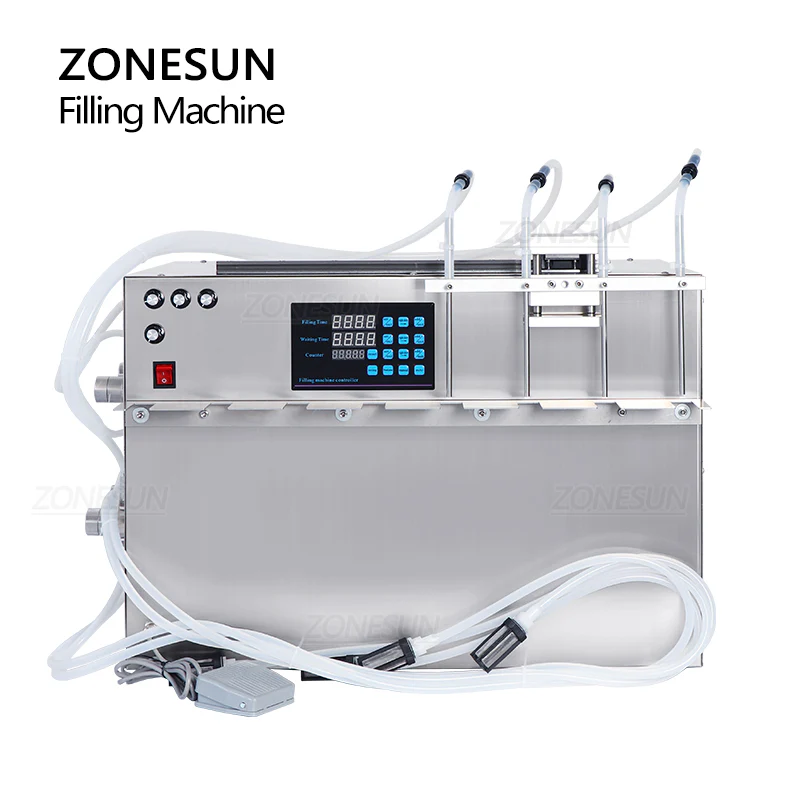

ZONESUN ZS‑MPSP4 4‑Nozzle Spout Pouch Liquid Filling Machine
The ZONESUN ZS‑MPSP4 4‑Nozzle Spout Pouch Liquid Filling Machine is designed for fast, precise filling of low‑viscosity liquids such as soybean milk, juice, and other beverages packaged in spout pouches. Equipped with four 316 stainless steel magnetic pumps, it delivers a maximum flow rate of 6 L/min × 4 with a filling accuracy of ±0.3 g.
The adjustable filling range of 30 – 300 ml and customizable number of nozzles make it adaptable for different pouch sizes and production needs. With a compact footprint and user‑friendly operation, this machine is ideal for beverage manufacturers seeking high efficiency, clean filling, and consistent quality.
Parameter Details
Machine Model ZS‑MPSP4
Voltage 220 V / 110 V, 50‑60 Hz
Power 350 W

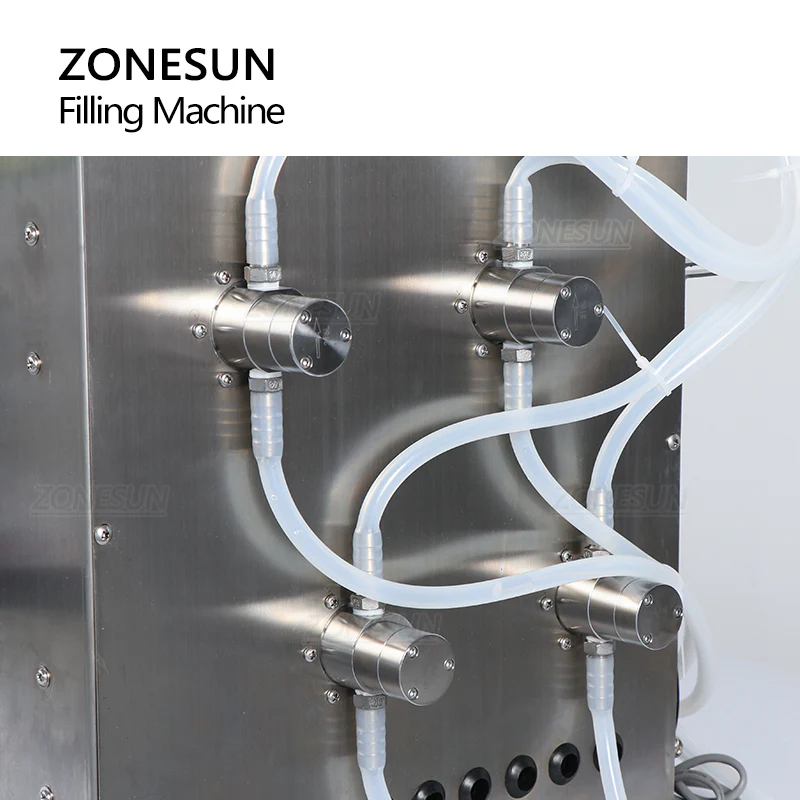

Machine Pump 316 Stainless Steel Magnetic Pump
Recommended Filling Range 30 – 300 ml
Max Flow Rate 6 L/min × 4 (based on water)
Suitable Pouch Nozzle OD 10 mm ~ 20 mm (customizable)
Size of Card Slot 10.5 mm / 13 mm (standard, customizable)
Filling Nozzle Diameter OD 6 mm
Machine Size Approx. 655 × 350 × 465 mm
Machine Weight Approx. 24 kg
Package Size Approx. 770 × 480 × 600 mm
Package Weight Approx. 40 kg
The ZONESUN ZS‑MPSP4 4‑Nozzle Spout Pouch Liquid Filling Machine is designed for fast, precise filling of low‑viscosity liquids such as soybean milk, juice, and other beverages packaged in spout pouches. Equipped with four 316 stainless steel magnetic pumps, it delivers a maximum flow rate of 6 L/min × 4 with a filling accuracy of ±0.3 g.
The adjustable filling range of 30 – 300 ml and customizable number of nozzles make it adaptable for different pouch sizes and production needs. With a compact footprint and user‑friendly operation, this machine is ideal for beverage manufacturers seeking high efficiency, clean filling, and consistent quality.
Parameter Details
Machine Model ZS‑MPSP4
Voltage 220 V / 110 V, 50‑60 Hz
Power 350 W
Machine Pump 316 Stainless Steel Magnetic Pump
Recommended Filling Range 30 – 300 ml
Max Flow Rate 6 L/min × 4 (based on water)
Suitable Pouch Nozzle OD 10 mm ~ 20 mm (customizable)
Size of Card Slot 10.5 mm / 13 mm (standard, customizable)
Filling Nozzle Diameter OD 6 mm
Machine Size Approx. 655 × 350 × 465 mm
Machine Weight Approx. 24 kg
Package Size Approx. 770 × 480 × 600 mm
Package Weight Approx. 40 kg
Original: $1,199.00
-70%$1,199.00
$359.70Description
The ZONESUN ZS‑MPSP4 4‑Nozzle Spout Pouch Liquid Filling Machine is designed for fast, precise filling of low‑viscosity liquids such as soybean milk, juice, and other beverages packaged in spout pouches. Equipped with four 316 stainless steel magnetic pumps, it delivers a maximum flow rate of 6 L/min × 4 with a filling accuracy of ±0.3 g.
The adjustable filling range of 30 – 300 ml and customizable number of nozzles make it adaptable for different pouch sizes and production needs. With a compact footprint and user‑friendly operation, this machine is ideal for beverage manufacturers seeking high efficiency, clean filling, and consistent quality.
Parameter Details
Machine Model ZS‑MPSP4
Voltage 220 V / 110 V, 50‑60 Hz
Power 350 W
Machine Pump 316 Stainless Steel Magnetic Pump
Recommended Filling Range 30 – 300 ml
Max Flow Rate 6 L/min × 4 (based on water)
Suitable Pouch Nozzle OD 10 mm ~ 20 mm (customizable)
Size of Card Slot 10.5 mm / 13 mm (standard, customizable)
Filling Nozzle Diameter OD 6 mm
Machine Size Approx. 655 × 350 × 465 mm
Machine Weight Approx. 24 kg
Package Size Approx. 770 × 480 × 600 mm
Package Weight Approx. 40 kg
