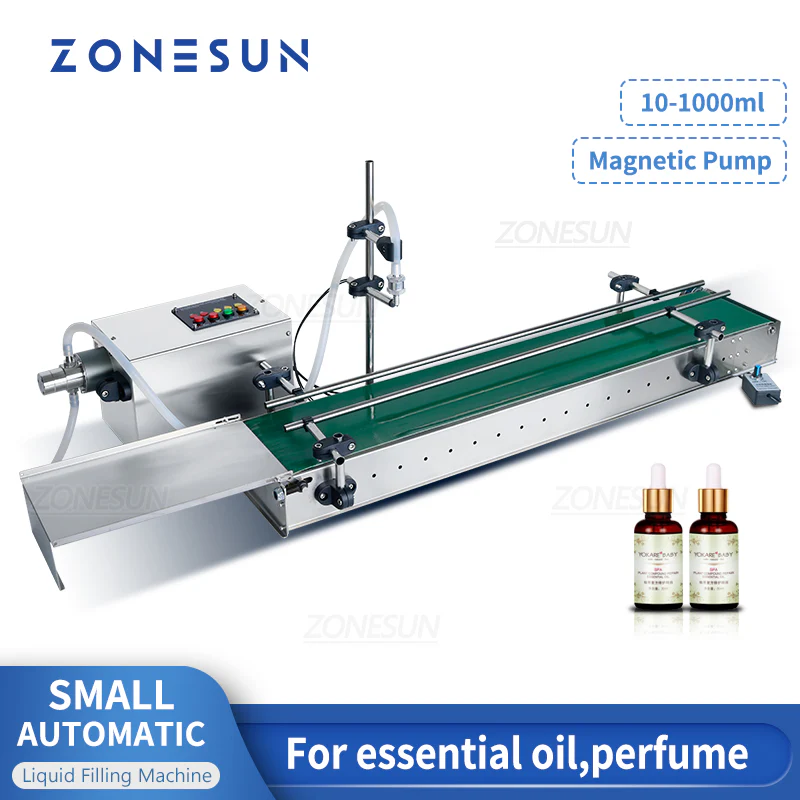

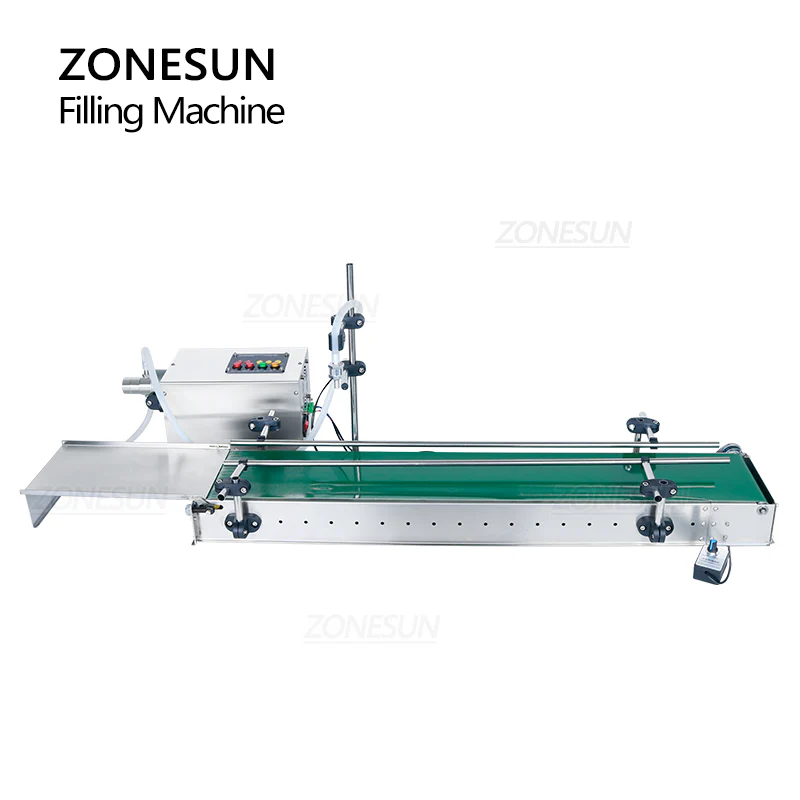

The ZONESUN ZS-MYT60H is a compact, automatic liquid filling machine designed for low-viscosity products such as essential oils, perfumes, and inks. Equipped with a 316 stainless steel magnetic pump, it offers precise filling from 10–100ml with ±1% accuracy. Its integrated conveyor belt supports continuous bottle transport, while the heated nozzle allows filling liquids up to 100°C. With a max flow rate of 3L/min and suction distance of 2 meters, this machine is ideal for cosmetic, beverage, and daily chemical industries seeking efficient small-batch production.

ZS-MYT60H Magnetic Pump Liquid Filling Machine – Technical Specification
Item Specification
Machine Model ZS-MYT60H
Voltage 220V / 110V, 50–60Hz
Power 100W
Filling Range 10–100ml

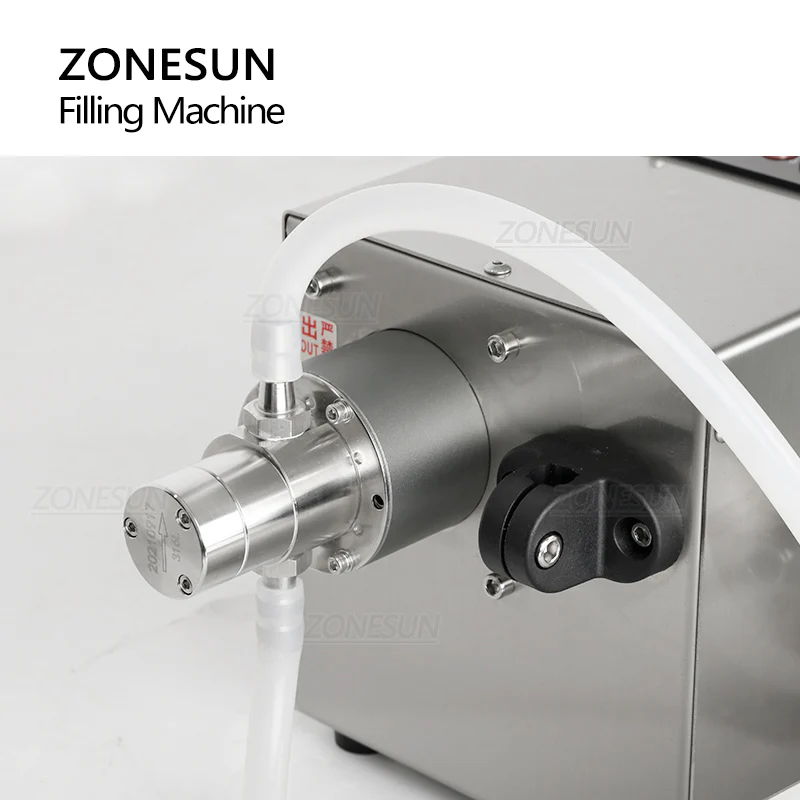

Machine Pump Type 316 Stainless Steel Magnetic Pump
Filling Speed Approx. 20–30 bottles/min (depends on liquid & bottle)
Filling Accuracy ±1%
Suitable Liquid Diameter Max OD 8.4mm

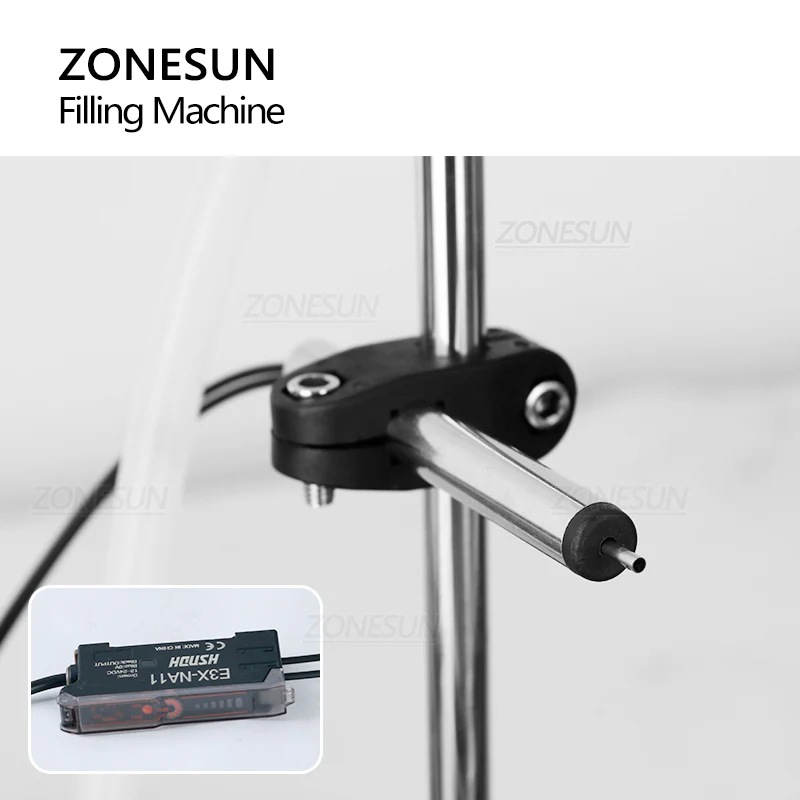

Filling Nozzle Temperature Up to 100°C
Conveyor Belt Size 316mm × 80mm (W × L)
Conveyor Belt Capacity 2kg
Max Suction Distance 2m
Max Flow Rate 3L/min
Machine Dimensions Approx. 245mm × 153mm × 160mm
Machine Weight Approx. 3kg
Package Size Main Machine: 355mm × 197mm × 183mm <br> Conveyor Belt: 925mm × 127mm × 123mm
Package Weight Approx. 12kg
