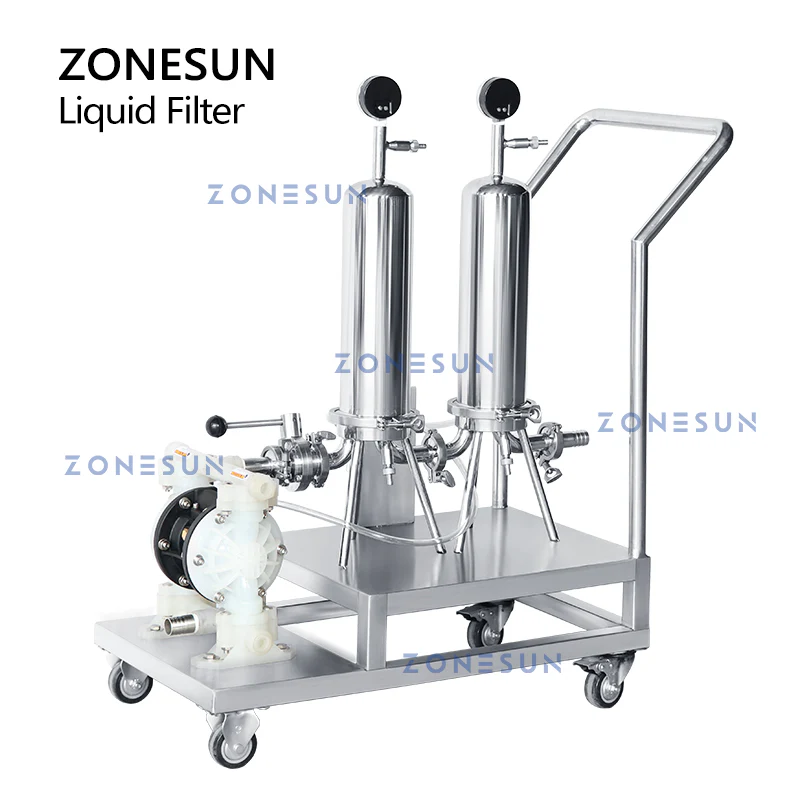

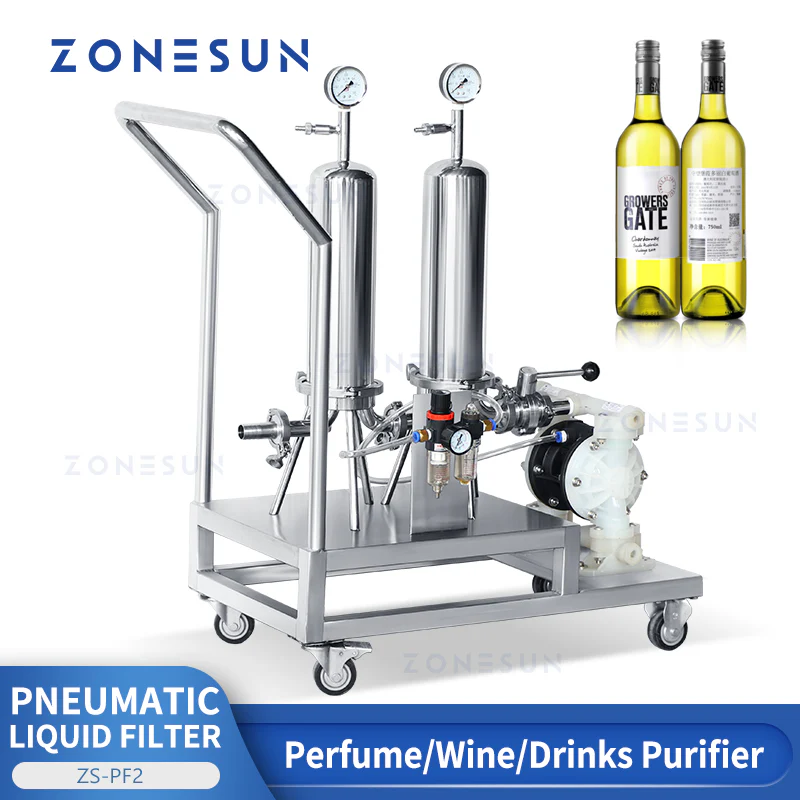

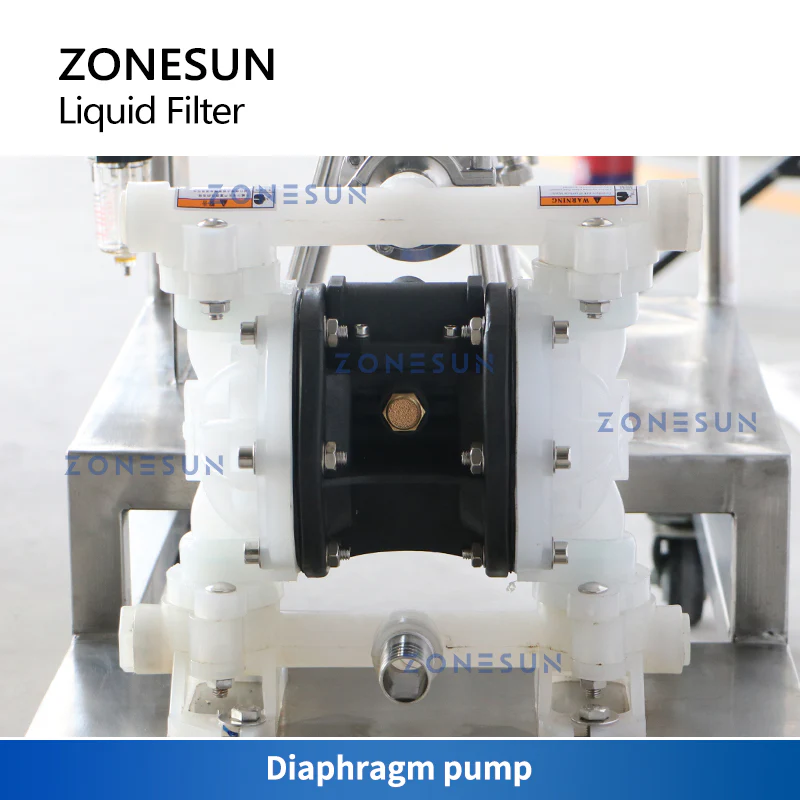

The ZONESUN ZS-PF2 is a fully pneumatic liquid purification system designed for safe and efficient filtration in industrial environments. Equipped with dual filters, a diaphragm pump, and a mobile cart, it uses a polypropylene microporous membrane to remove impurities from liquids such as alcohol, perfume, and chemicals. Its antistatic and explosion-proof design makes it ideal for use in food, cosmetic, and chemical production lines. With a pump capacity of up to 2.4 tons/hour and stainless steel construction, it offers durability, mobility, and high-performance filtration.

ZS-PF2 Pneumatic Filtration Machine – Technical Specifications
Item Specification
Machine Model ZS-PF2
Driven Type Fully Pneumatic
Sealing Ring Material Silicone Rubber
Working Pressure 0.4 MPa
Filter Area 0.05 m²
Filter Material PP (Polypropylene) Microporous Membrane
Shell Material Stainless Steel
Pump Capacity 0–2.4 tons/hour
Machine Weight Approx. 35 kg
Package Size Approx. 930 × 470 × 990 mm
Package Weight Approx. 57 kg
