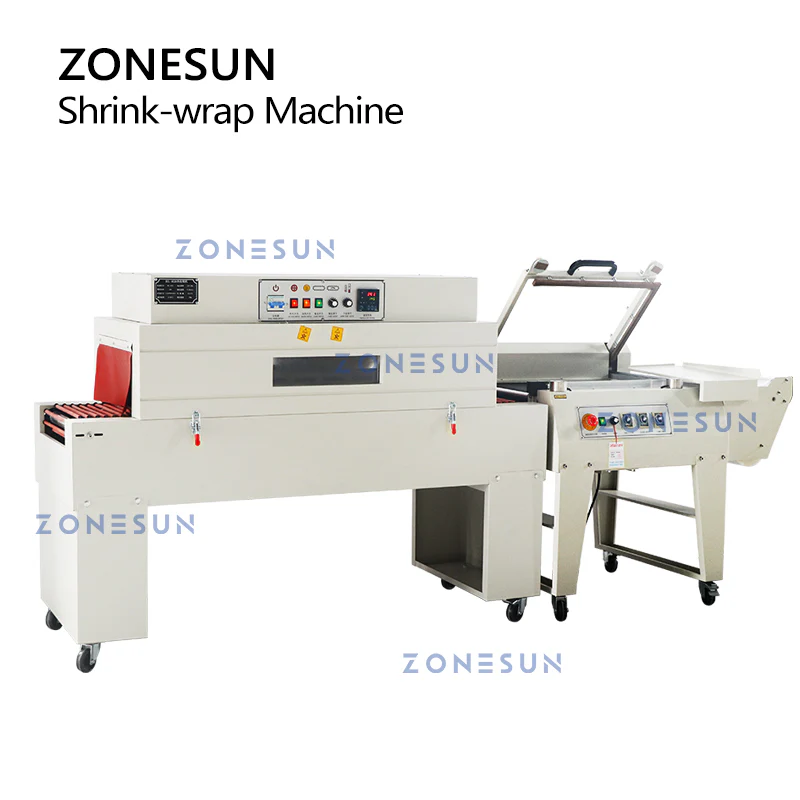

The ZONESUN ZS-SPL3 is a compact, high-performance packaging solution combining an L-bar sealer and shrink tunnel. Designed for PVC and polyolefin shrink films, it efficiently seals and shrinks packaging around boxed goods, electronics, cosmetics, and more. The ZS-FQB450 L-bar sealer delivers clean, consistent cuts with adjustable speed, while the ZS-BSB4020 shrink tunnel ensures a tight, professional finish. Built with durable all-steel construction, this system integrates easily into automated production lines, offering years of reliable service and high-quality seals.

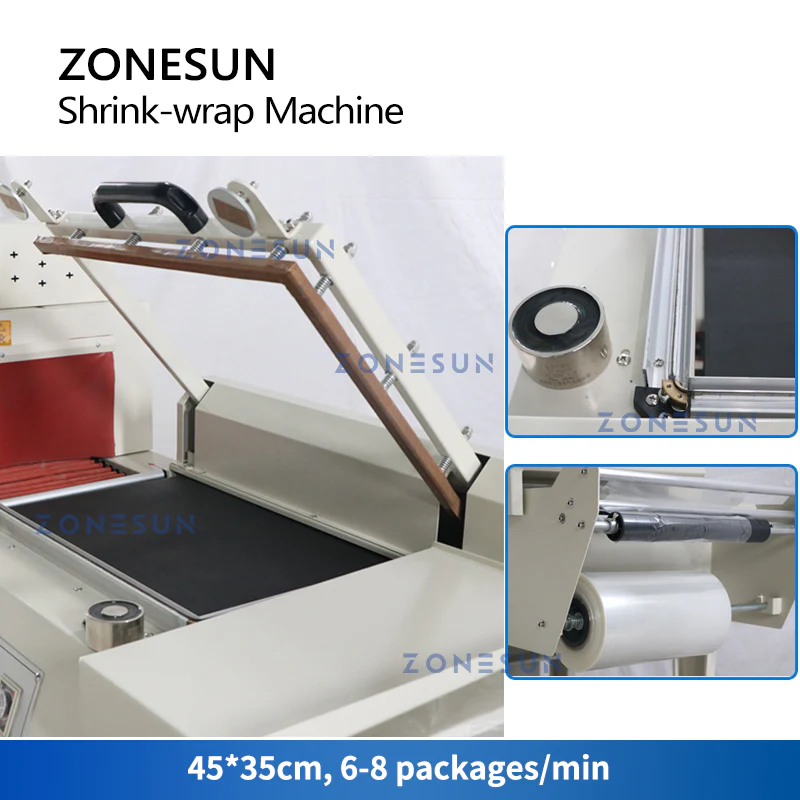

L-bar Sealer Parameter

• Machine model：ZS-FQB450

• Voltage：220-380V 50-60Hz

• Power：1.5KW

• Conveying speed：0-15m/min

• Max sealing and cutting size：450*350mm

• Applicable film：POF/PE/PP

• Machine size：About 1080*720*910mm

• Machine weight：About 80kg

• Package size：About 1160*790*1010mm

• Package weight：About 100kg

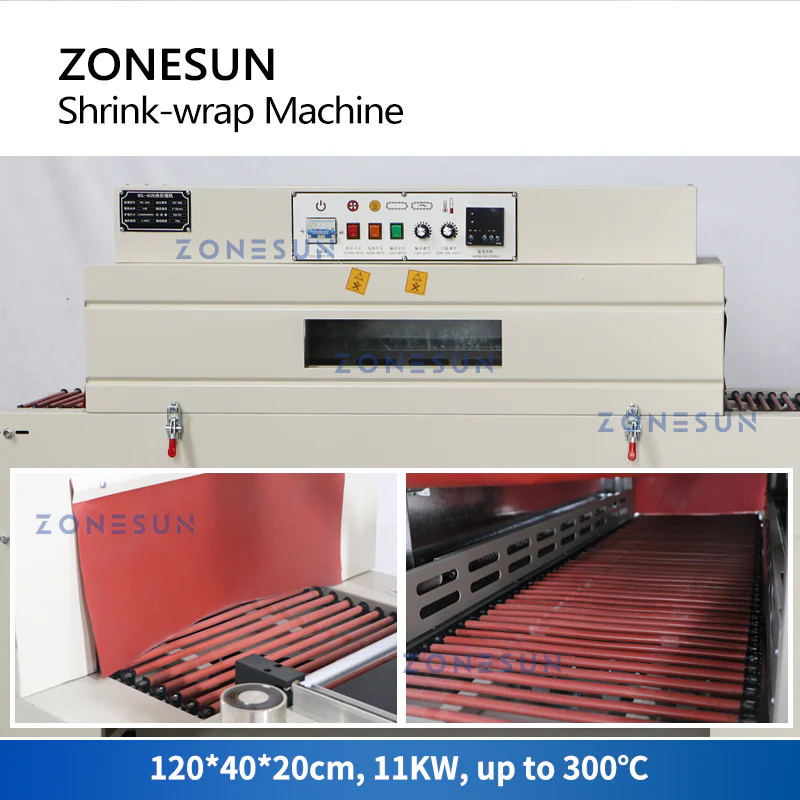

Shrink Tunnel

• Machine model：ZS-BSB4020

• Voltage：220-380V 50-60Hz

• Power：8.5KW

• Tunnel size：About 800*400*200mm

• Conveying speed：0-15m/min

• Transport load：15kg

• Applicable film：PVC / POF

• Machine size：About 1120*620*750mm

• Machine weight：About 90kg

• Package size：About 1710*690*830mm

• Package weight：About 135kg
