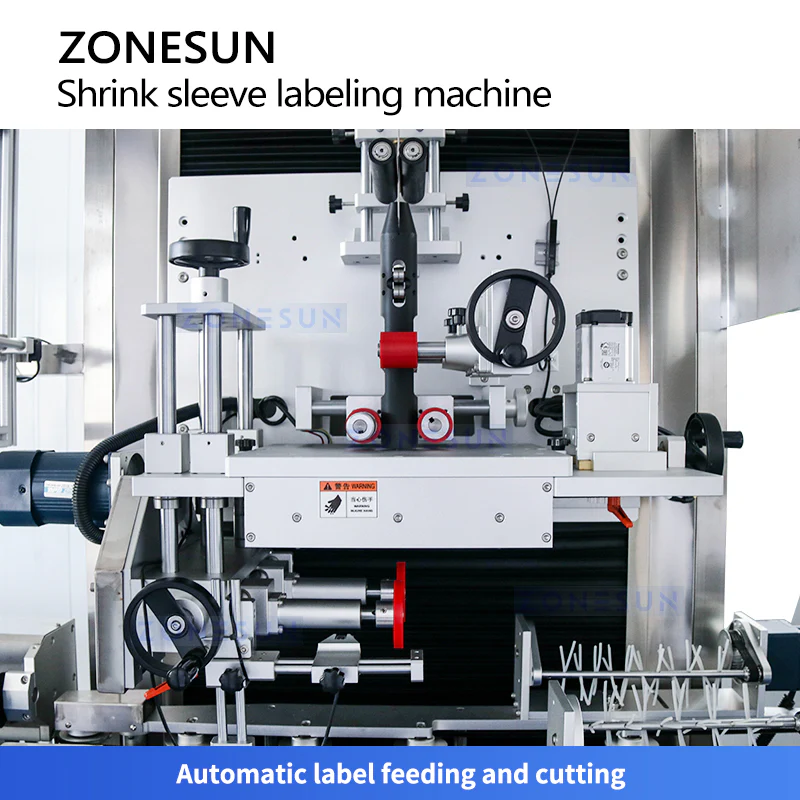

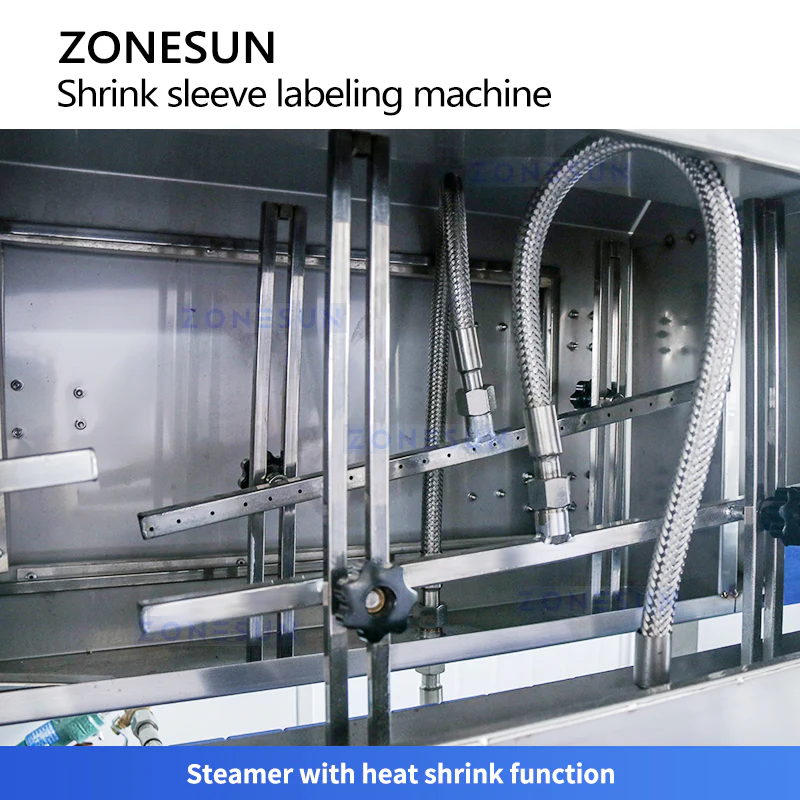

The ZS-STB150L is a fully automatic shrink sleeve labeling system designed to apply and shrink full-body sleeve labels or tamper-evident bands on bottles of various shapes. It includes a sleeve applicator, shrink tunnel modules, a steam generator, and a stainless steel conveyor. With precise label positioning and contour-enhancing shrink performance, this machine delivers professional packaging results for round, square, oval, and irregular containers.

ZS-STB150 Sleeve Label Machine – Technical Specifications
Parameter Details
Machine Model ZS-STB150
Bottle Diameter Range Φ28mm–Φ125mm (customizable)
Bottle Height Range 30mm–280mm (customizable)
Label Length 30mm–250mm (customizable)
Label Thickness 0.03mm–0.13mm (compatible with PVC, PET, OPS materials)
Sleeve Standard Error ±1.5mm
Paper Tube Inner Diameter 5"–10" (adjustable)
Machine Speed Up to 150 bottles/min (depends on label length)
Voltage 220V, Single Phase
Power Consumption 15KW

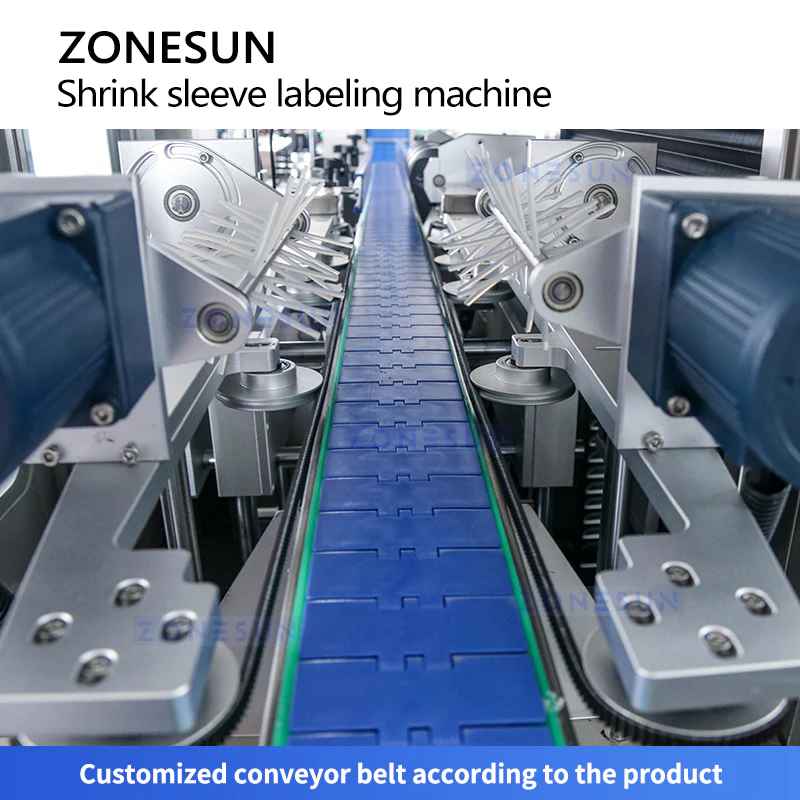

Conveyor Belt Standard 2 meters
Machine Dimensions Approx. 2950 × 1030 × 1870mm (L × W × H)
Machine Weight Approx. 464kg

Sleeve Label Machine – Heat Tunnel Specifications
Specification Details
Tunnel Length Approx. 1800mm
Tunnel Width Approx. 395mm
Tunnel Height Approx. 360mm
Suitable Bottle Diameter ≤80mm
Conveyor Height Approx. 900mm
Machine Dimensions Approx. 3050 × 480 × 1330mm (L × W × H)
Machine Weight Approx. 86kg
Package Dimensions Approx. 1905 × 610 × 1720mm
Package Weight Approx. 143kg
