ZONESUN ZS-TB832 Flat Surface Automatic Labeling Machine
The ZONESUN ZS-TB832 Automatic Flat Page Labeling Machine is designed for labeling or applying self-adhesive film on the top surface of flat items such as books, folders, boxes, and cartons. It supports high-speed labeling up to 120 pieces per minute with ±1.0mm accuracy. The adjustable labeling mechanism allows for application on uneven surfaces, making it ideal for large-format flat products. Optional integration with ribbon or inkjet printers enables simultaneous coding of batch numbers, production dates, and expiration dates—streamlining operations and boosting efficiency. The machine is built to accommodate custom label and bottle sizes upon request.
Item Specification
Model ZS-TB832
Power Supply 110V/220V 50–60Hz, 820W
Labeling Accuracy ±1.0mm (based on product and label size)
Labeling Speed 40–120 pieces/min (based on product size)
Suitable Product Size 40–300mm × 40–200mm × 0.2–5mm (L × W × H)

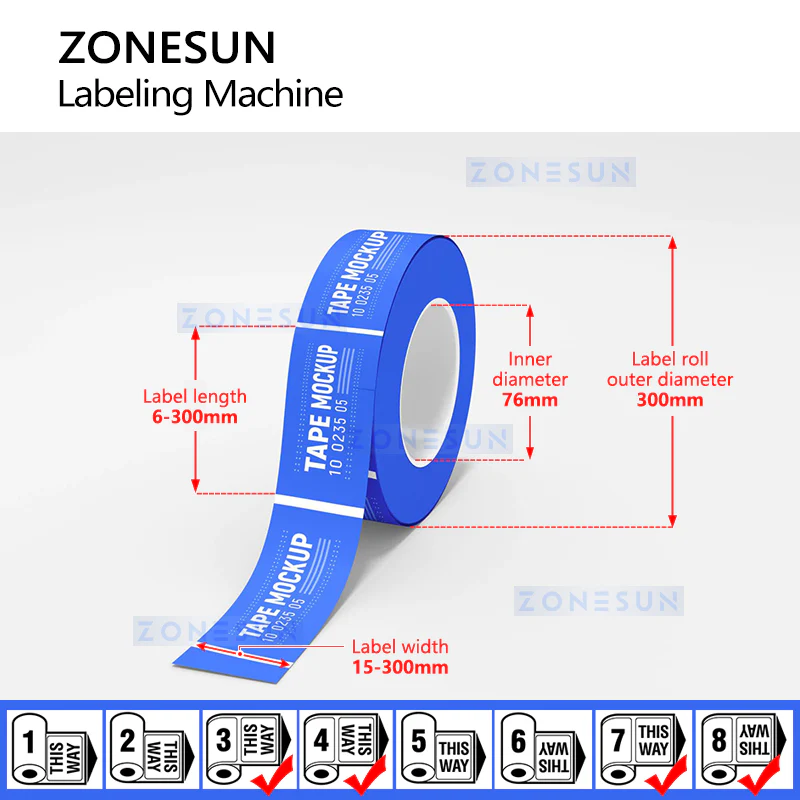

Suitable Label Size 6–300mm × 15–130mm (L × W)
Label Roll ID Ø76mm
Label Roll OD Ø300mm
Machine Size About 2440 × 830 × 1350mm (L × W × H)
Package Size About 2145 × 900 × 1460mm (L × W × H)
Net/Gross Weight About 224kg / 325kg
The ZONESUN ZS-TB832 Automatic Flat Page Labeling Machine is designed for labeling or applying self-adhesive film on the top surface of flat items such as books, folders, boxes, and cartons. It supports high-speed labeling up to 120 pieces per minute with ±1.0mm accuracy. The adjustable labeling mechanism allows for application on uneven surfaces, making it ideal for large-format flat products. Optional integration with ribbon or inkjet printers enables simultaneous coding of batch numbers, production dates, and expiration dates—streamlining operations and boosting efficiency. The machine is built to accommodate custom label and bottle sizes upon request.
Item Specification
Model ZS-TB832
Power Supply 110V/220V 50–60Hz, 820W
Labeling Accuracy ±1.0mm (based on product and label size)
Labeling Speed 40–120 pieces/min (based on product size)
Suitable Product Size 40–300mm × 40–200mm × 0.2–5mm (L × W × H)
Suitable Label Size 6–300mm × 15–130mm (L × W)
Label Roll ID Ø76mm
Label Roll OD Ø300mm
Machine Size About 2440 × 830 × 1350mm (L × W × H)
Package Size About 2145 × 900 × 1460mm (L × W × H)
Net/Gross Weight About 224kg / 325kg
Original: $5,799.00
-70%$5,799.00
$1,739.70Description
The ZONESUN ZS-TB832 Automatic Flat Page Labeling Machine is designed for labeling or applying self-adhesive film on the top surface of flat items such as books, folders, boxes, and cartons. It supports high-speed labeling up to 120 pieces per minute with ±1.0mm accuracy. The adjustable labeling mechanism allows for application on uneven surfaces, making it ideal for large-format flat products. Optional integration with ribbon or inkjet printers enables simultaneous coding of batch numbers, production dates, and expiration dates—streamlining operations and boosting efficiency. The machine is built to accommodate custom label and bottle sizes upon request.
Item Specification
Model ZS-TB832
Power Supply 110V/220V 50–60Hz, 820W
Labeling Accuracy ±1.0mm (based on product and label size)
Labeling Speed 40–120 pieces/min (based on product size)
Suitable Product Size 40–300mm × 40–200mm × 0.2–5mm (L × W × H)
Suitable Label Size 6–300mm × 15–130mm (L × W)
Label Roll ID Ø76mm
Label Roll OD Ø300mm
Machine Size About 2440 × 830 × 1350mm (L × W × H)
Package Size About 2145 × 900 × 1460mm (L × W × H)
Net/Gross Weight About 224kg / 325kg
