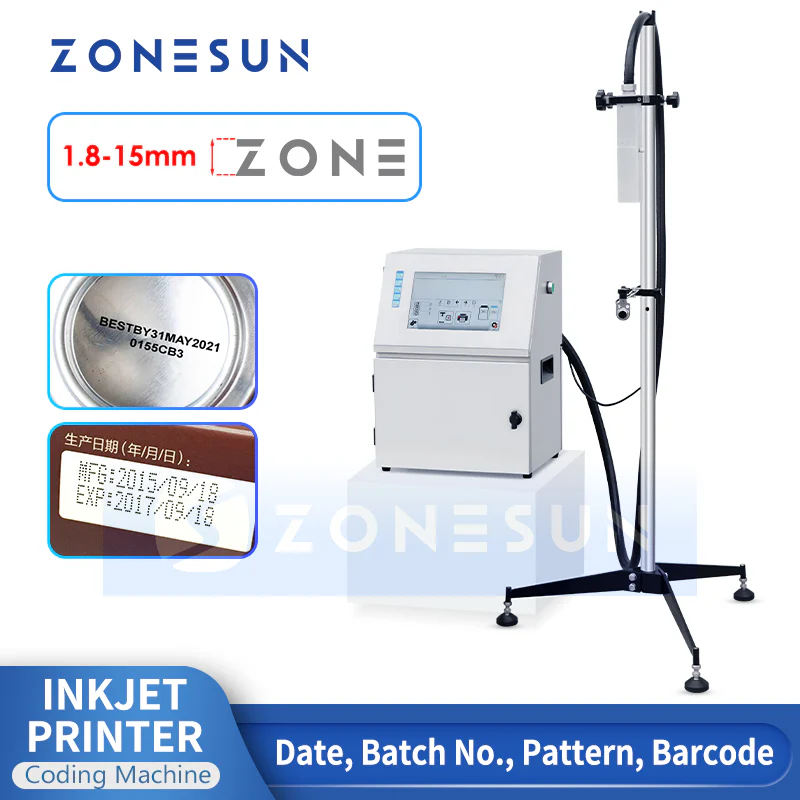

ZONESUN ZS‑TIP15 High‑Speed Multilingual Inkjet Date Coding Machine
The ZS‑TIP15 is a versatile inkjet printer designed for high‑efficiency production lines. Featuring a separate print head for flexible installation, it can integrate seamlessly with conveyors to create automated workflows. With crisp, clear marking on a wide range of surfaces, it delivers exceptional speed and consistent results for date coding, batch numbers, and more.
Machine Specifications — Model ZS‑TIP15
Parameter Details
Model ZS‑TIP15
Resolution 1280 × 800

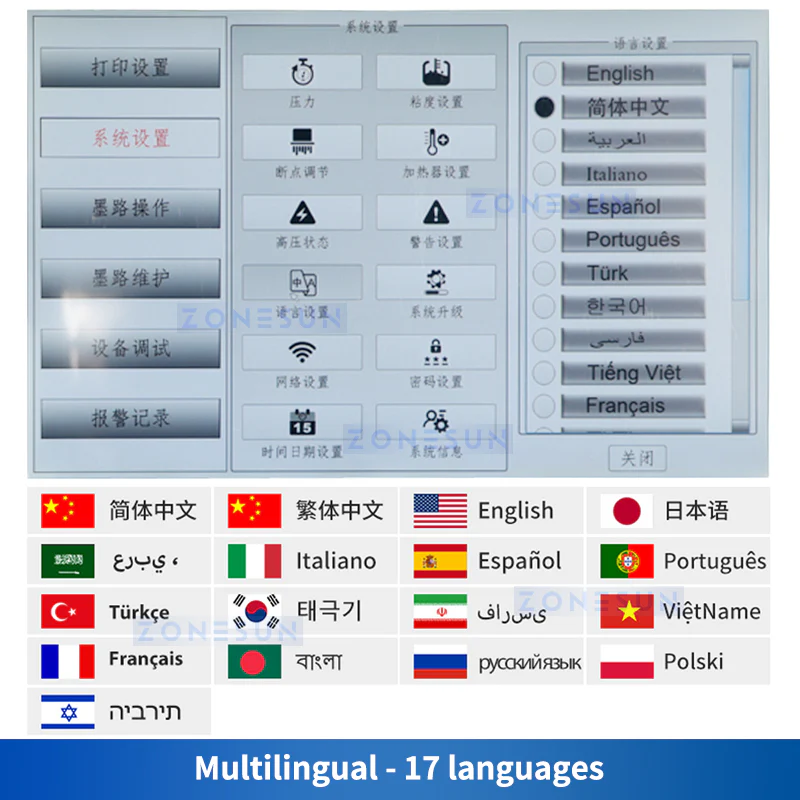

Language Support 17 languages
Printing Rows 1 – 4 (5×7 dot) / 1 – 5 (5×5 dot)
Dot Matrix Options 5×5, 5×7, 7×9, 10×12, 12×16, 18×24, 24×32
Printing Contents Date, time, batch number, serial number, lot number, barcode, QR code, logo, pattern, variable data, text

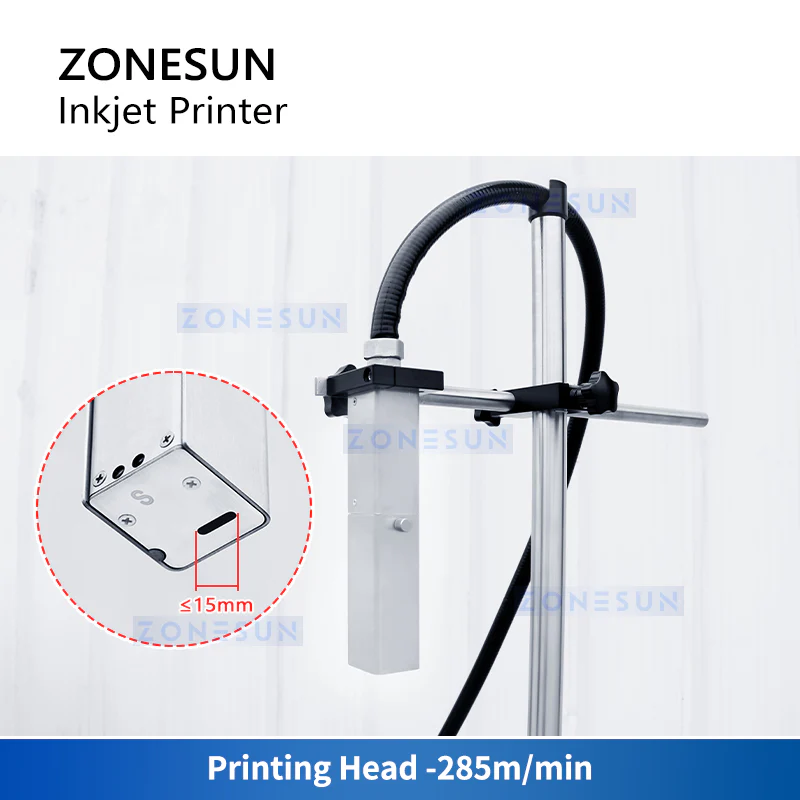

Printing Speed 285 m/min
Character Height 1.8 – 15 mm
Printing Head to Base Distance 3 mm
Printing Distance ≤ 30 mm (from printing head to object)
Operating Temperature & Humidity 5 – 45 °C, 30 – 90 %
Power Consumption 220 W
Voltage 200 – 240 V AC, 50/60 Hz
Machine Size 370 × 310 × 510 mm
Net Weight 23 kg
The ZS‑TIP15 is a versatile inkjet printer designed for high‑efficiency production lines. Featuring a separate print head for flexible installation, it can integrate seamlessly with conveyors to create automated workflows. With crisp, clear marking on a wide range of surfaces, it delivers exceptional speed and consistent results for date coding, batch numbers, and more.
Machine Specifications — Model ZS‑TIP15
Parameter Details
Model ZS‑TIP15
Resolution 1280 × 800
Language Support 17 languages
Printing Rows 1 – 4 (5×7 dot) / 1 – 5 (5×5 dot)
Dot Matrix Options 5×5, 5×7, 7×9, 10×12, 12×16, 18×24, 24×32
Printing Contents Date, time, batch number, serial number, lot number, barcode, QR code, logo, pattern, variable data, text
Printing Speed 285 m/min
Character Height 1.8 – 15 mm
Printing Head to Base Distance 3 mm
Printing Distance ≤ 30 mm (from printing head to object)
Operating Temperature & Humidity 5 – 45 °C, 30 – 90 %
Power Consumption 220 W
Voltage 200 – 240 V AC, 50/60 Hz
Machine Size 370 × 310 × 510 mm
Net Weight 23 kg
Original: $3,599.00
-70%$3,599.00
$1,079.70Description
The ZS‑TIP15 is a versatile inkjet printer designed for high‑efficiency production lines. Featuring a separate print head for flexible installation, it can integrate seamlessly with conveyors to create automated workflows. With crisp, clear marking on a wide range of surfaces, it delivers exceptional speed and consistent results for date coding, batch numbers, and more.
Machine Specifications — Model ZS‑TIP15
Parameter Details
Model ZS‑TIP15
Resolution 1280 × 800
Language Support 17 languages
Printing Rows 1 – 4 (5×7 dot) / 1 – 5 (5×5 dot)
Dot Matrix Options 5×5, 5×7, 7×9, 10×12, 12×16, 18×24, 24×32
Printing Contents Date, time, batch number, serial number, lot number, barcode, QR code, logo, pattern, variable data, text
Printing Speed 285 m/min
Character Height 1.8 – 15 mm
Printing Head to Base Distance 3 mm
Printing Distance ≤ 30 mm (from printing head to object)
Operating Temperature & Humidity 5 – 45 °C, 30 – 90 %
Power Consumption 220 W
Voltage 200 – 240 V AC, 50/60 Hz
Machine Size 370 × 310 × 510 mm
Net Weight 23 kg
