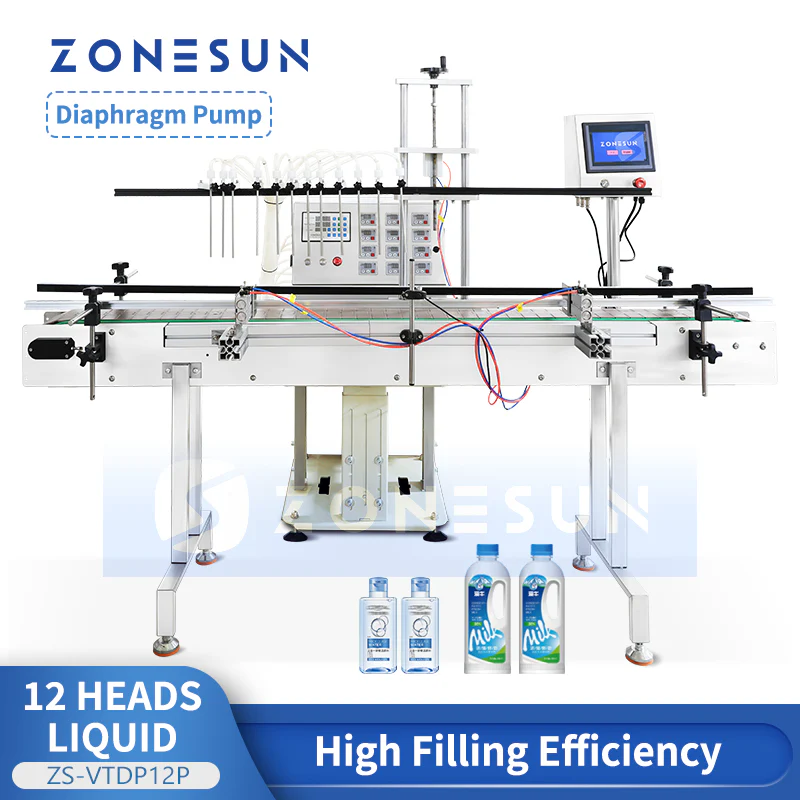

ZONESUN ZS‑VTDP12P 12‑Head Diaphragm Pump Automatic Liquid Filling Machine
The ZONESUN ZS‑VTDP12P Diaphragm Pump Liquid Filling Machine delivers high‑capacity, precise filling with 12 independent pumps, each capable of dispensing 30–4000 ml at up to 4 L/min (based on water). Controlled by a micro‑computer, it ensures smooth, accurate liquid flow through adjustable pump timing and motor speed. The stainless steel body meets GMP standards, featuring an LCD display, anti‑drip design, and optimized interface for ease of use. Two operation modes — pedal and automatic — allow flexible workflow control. Ideal for low‑viscosity liquids such as juice, soybean milk, and other beverages, it’s widely applied in food, cosmetics, and pharmaceutical industries.
ZS‑VTDP12P — Specifications
Parameter Details
Machine Model ZS‑VTDP12P
Voltage 220 V / 110 V, 50‑60 Hz
Rated Power 700 W
Machine Pump Diaphragm (each pump) × 12
Filling Range 30 – 4000 ml (each pump) × 12
Working Speed Approx. 10 – 40 bottles/min (based on bottle size & liquid)
Maximum Suction Distance 1.5 m
Maximum Flow Rate 4 L/min (each pump) × 12
Filling Accuracy ± 1 % (depending on liquid)
OD of Filling Nozzle OD 6 mm
Conveyor Size (W × L) Approx. 114 × 1900 mm
Machine Weight Approx. 131 kg
Machine Size — Filling Machine Approx. 500 × 250 × 580 mm
Machine Size — Conveyor (900 mm) Approx. 300 × 380 × 1600 mm
Machine Size — Bracket for Filling Machine Approx. 520 × 520 × 770 mm
The ZONESUN ZS‑VTDP12P Diaphragm Pump Liquid Filling Machine delivers high‑capacity, precise filling with 12 independent pumps, each capable of dispensing 30–4000 ml at up to 4 L/min (based on water). Controlled by a micro‑computer, it ensures smooth, accurate liquid flow through adjustable pump timing and motor speed. The stainless steel body meets GMP standards, featuring an LCD display, anti‑drip design, and optimized interface for ease of use. Two operation modes — pedal and automatic — allow flexible workflow control. Ideal for low‑viscosity liquids such as juice, soybean milk, and other beverages, it’s widely applied in food, cosmetics, and pharmaceutical industries.
ZS‑VTDP12P — Specifications
Parameter Details
Machine Model ZS‑VTDP12P
Voltage 220 V / 110 V, 50‑60 Hz
Rated Power 700 W
Machine Pump Diaphragm (each pump) × 12
Filling Range 30 – 4000 ml (each pump) × 12
Working Speed Approx. 10 – 40 bottles/min (based on bottle size & liquid)
Maximum Suction Distance 1.5 m
Maximum Flow Rate 4 L/min (each pump) × 12
Filling Accuracy ± 1 % (depending on liquid)
OD of Filling Nozzle OD 6 mm
Conveyor Size (W × L) Approx. 114 × 1900 mm
Machine Weight Approx. 131 kg
Machine Size — Filling Machine Approx. 500 × 250 × 580 mm
Machine Size — Conveyor (900 mm) Approx. 300 × 380 × 1600 mm
Machine Size — Bracket for Filling Machine Approx. 520 × 520 × 770 mm
Original: $2,744.99
-70%$2,744.99
$823.50Description
The ZONESUN ZS‑VTDP12P Diaphragm Pump Liquid Filling Machine delivers high‑capacity, precise filling with 12 independent pumps, each capable of dispensing 30–4000 ml at up to 4 L/min (based on water). Controlled by a micro‑computer, it ensures smooth, accurate liquid flow through adjustable pump timing and motor speed. The stainless steel body meets GMP standards, featuring an LCD display, anti‑drip design, and optimized interface for ease of use. Two operation modes — pedal and automatic — allow flexible workflow control. Ideal for low‑viscosity liquids such as juice, soybean milk, and other beverages, it’s widely applied in food, cosmetics, and pharmaceutical industries.
ZS‑VTDP12P — Specifications
Parameter Details
Machine Model ZS‑VTDP12P
Voltage 220 V / 110 V, 50‑60 Hz
Rated Power 700 W
Machine Pump Diaphragm (each pump) × 12
Filling Range 30 – 4000 ml (each pump) × 12
Working Speed Approx. 10 – 40 bottles/min (based on bottle size & liquid)
Maximum Suction Distance 1.5 m
Maximum Flow Rate 4 L/min (each pump) × 12
Filling Accuracy ± 1 % (depending on liquid)
OD of Filling Nozzle OD 6 mm
Conveyor Size (W × L) Approx. 114 × 1900 mm
Machine Weight Approx. 131 kg
Machine Size — Filling Machine Approx. 500 × 250 × 580 mm
Machine Size — Conveyor (900 mm) Approx. 300 × 380 × 1600 mm
Machine Size — Bracket for Filling Machine Approx. 520 × 520 × 770 mm
