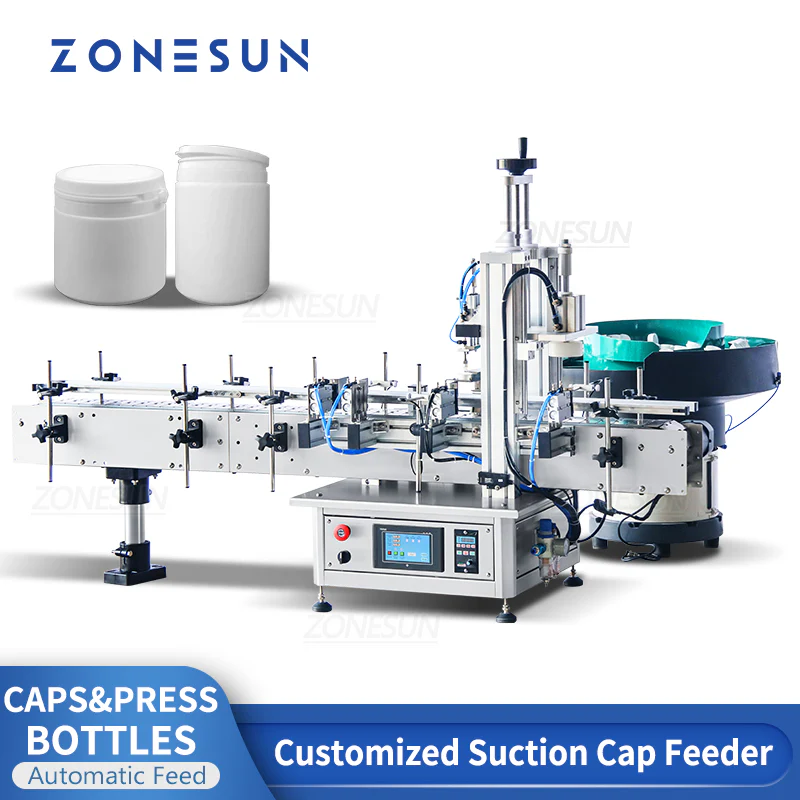

ZONESUN ZS‑XG1870G Automatic Cap Pressing Machine with Cap Feeder

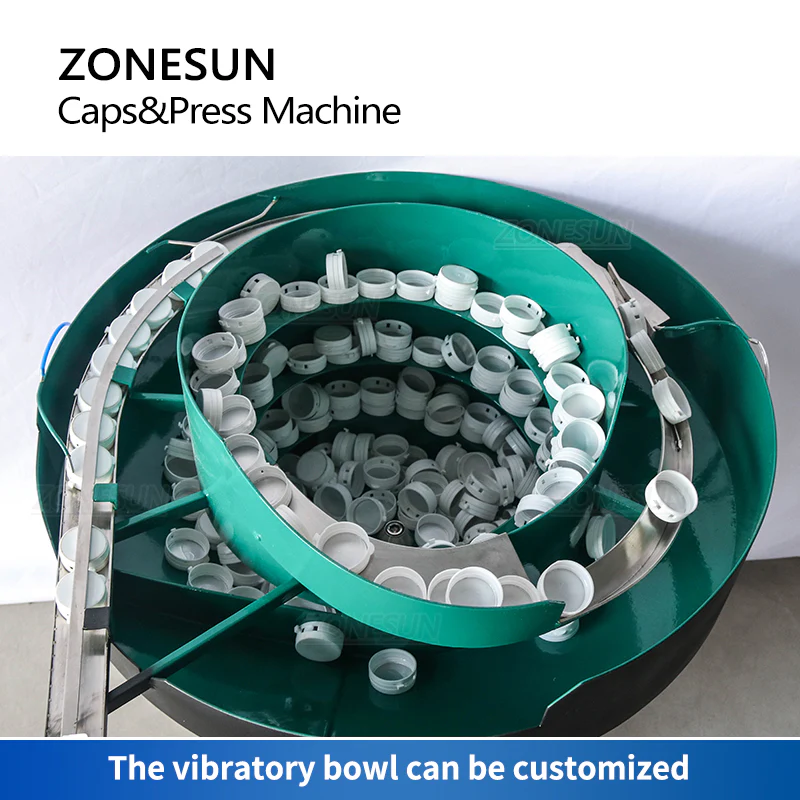

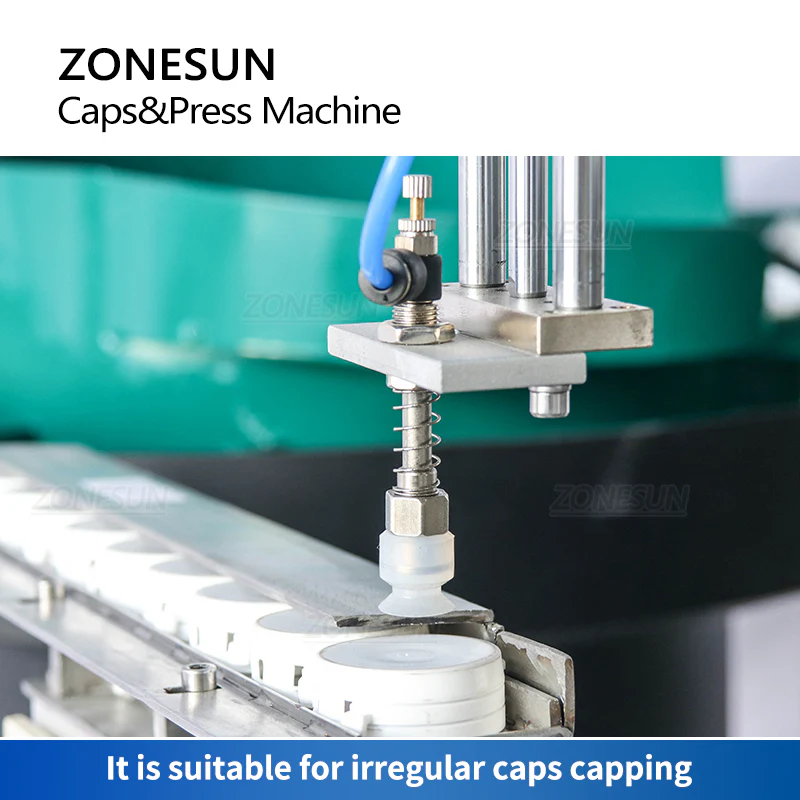

The ZONESUN ZS‑XG1870G is an automatic cap pressing machine equipped with a vibratory cap feeder for handling irregular caps, such as tear‑off flip tops. Using suction to pick caps and a precision pressing system, it streamlines the capping process for improved efficiency. Built for versatility, it accommodates bottle heights from 60 mm to 270 mm and supports customized cap diameters. With a speed of 20‑40 bottles per minute, it is widely used in the food, cosmetics, and daily chemical industries, delivering consistent results and reducing manual labor.
ZONESUN ZS‑XG1870G — Specifications
Parameter Details
Machine Model ZS‑XG1870G
Working Voltage AC 220 V / 110 V, 50–60 Hz
Working Pressure 0.4 – 0.6 MPa
Bottle Height 60 – 270 mm
Bottle Cap Diameter Customized
Working Speed 20 – 40 bottles/min (depending on bottle & cap)
Conveyor Size (L×W) Approx. 1780 × 115 mm
Machine Size Approx. 1780 × 580 × 1140 mm (Machine) + 650 × 650 × 560 mm (Vibratory Bowl)
Machine Weight Approx. 83 kg (Machine) + 72 kg (Vibratory Bowl)
Package Size Approx. 1220 × 790 × 1250 mm (Machine) + 700 × 700 × 780 mm (Vibratory Bowl)
Package Weight Approx. 123 kg (Machine) + 92 kg (Vibratory Bowl)
The ZONESUN ZS‑XG1870G is an automatic cap pressing machine equipped with a vibratory cap feeder for handling irregular caps, such as tear‑off flip tops. Using suction to pick caps and a precision pressing system, it streamlines the capping process for improved efficiency. Built for versatility, it accommodates bottle heights from 60 mm to 270 mm and supports customized cap diameters. With a speed of 20‑40 bottles per minute, it is widely used in the food, cosmetics, and daily chemical industries, delivering consistent results and reducing manual labor.
ZONESUN ZS‑XG1870G — Specifications
Parameter Details
Machine Model ZS‑XG1870G
Working Voltage AC 220 V / 110 V, 50–60 Hz
Working Pressure 0.4 – 0.6 MPa
Bottle Height 60 – 270 mm
Bottle Cap Diameter Customized
Working Speed 20 – 40 bottles/min (depending on bottle & cap)
Conveyor Size (L×W) Approx. 1780 × 115 mm
Machine Size Approx. 1780 × 580 × 1140 mm (Machine) + 650 × 650 × 560 mm (Vibratory Bowl)
Machine Weight Approx. 83 kg (Machine) + 72 kg (Vibratory Bowl)
Package Size Approx. 1220 × 790 × 1250 mm (Machine) + 700 × 700 × 780 mm (Vibratory Bowl)
Package Weight Approx. 123 kg (Machine) + 92 kg (Vibratory Bowl)
Original: $4,899.00
-70%$4,899.00
$1,469.70Description
The ZONESUN ZS‑XG1870G is an automatic cap pressing machine equipped with a vibratory cap feeder for handling irregular caps, such as tear‑off flip tops. Using suction to pick caps and a precision pressing system, it streamlines the capping process for improved efficiency. Built for versatility, it accommodates bottle heights from 60 mm to 270 mm and supports customized cap diameters. With a speed of 20‑40 bottles per minute, it is widely used in the food, cosmetics, and daily chemical industries, delivering consistent results and reducing manual labor.
ZONESUN ZS‑XG1870G — Specifications
Parameter Details
Machine Model ZS‑XG1870G
Working Voltage AC 220 V / 110 V, 50–60 Hz
Working Pressure 0.4 – 0.6 MPa
Bottle Height 60 – 270 mm
Bottle Cap Diameter Customized
Working Speed 20 – 40 bottles/min (depending on bottle & cap)
Conveyor Size (L×W) Approx. 1780 × 115 mm
Machine Size Approx. 1780 × 580 × 1140 mm (Machine) + 650 × 650 × 560 mm (Vibratory Bowl)
Machine Weight Approx. 83 kg (Machine) + 72 kg (Vibratory Bowl)
Package Size Approx. 1220 × 790 × 1250 mm (Machine) + 700 × 700 × 780 mm (Vibratory Bowl)
Package Weight Approx. 123 kg (Machine) + 92 kg (Vibratory Bowl)
