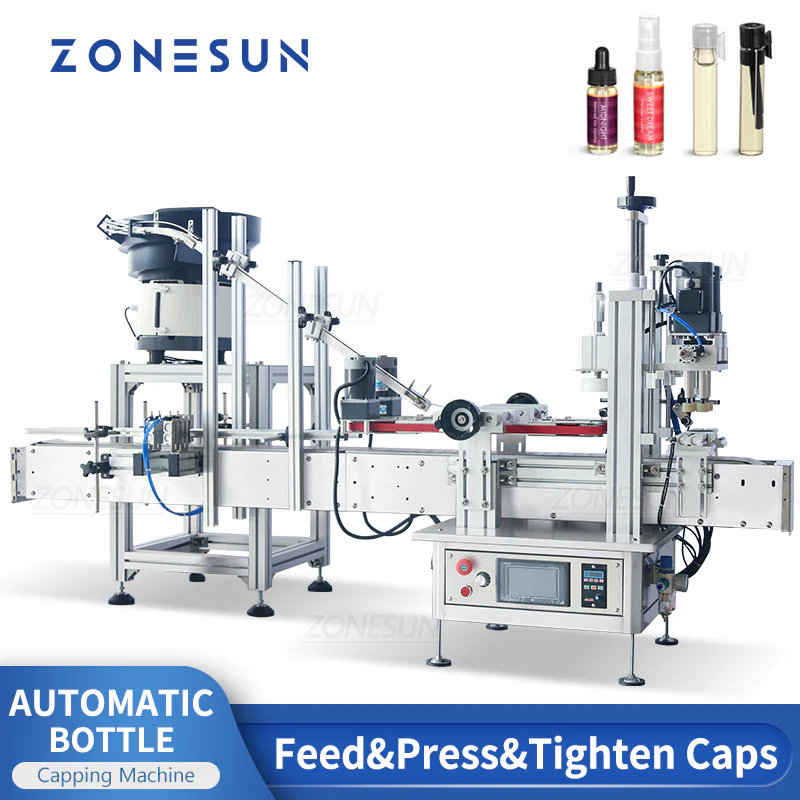

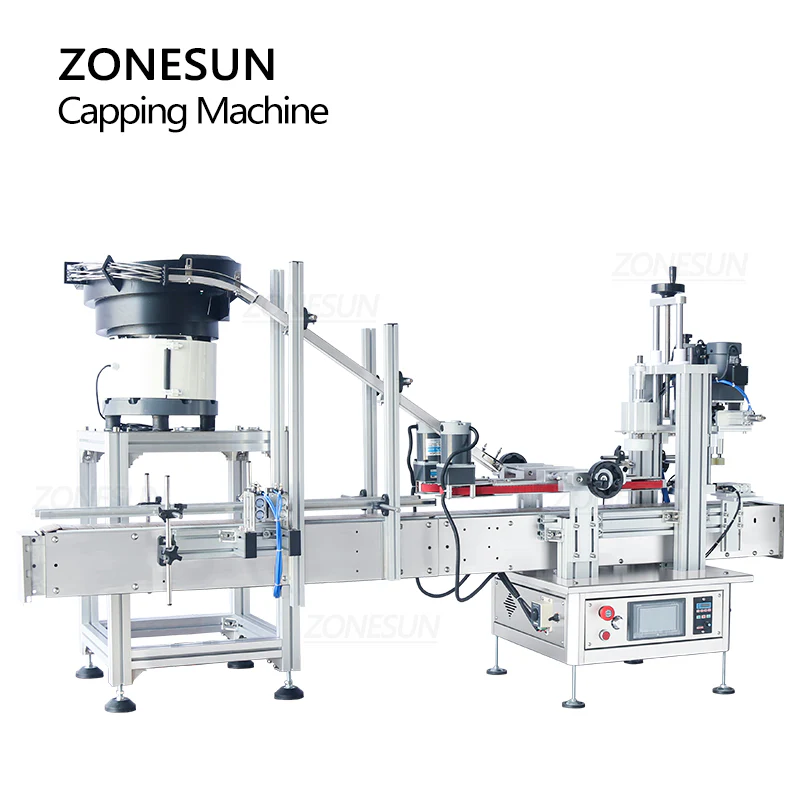

ZONESUN ZS‑XG1870P Automatic Capping Machine with Cap Unscrambler

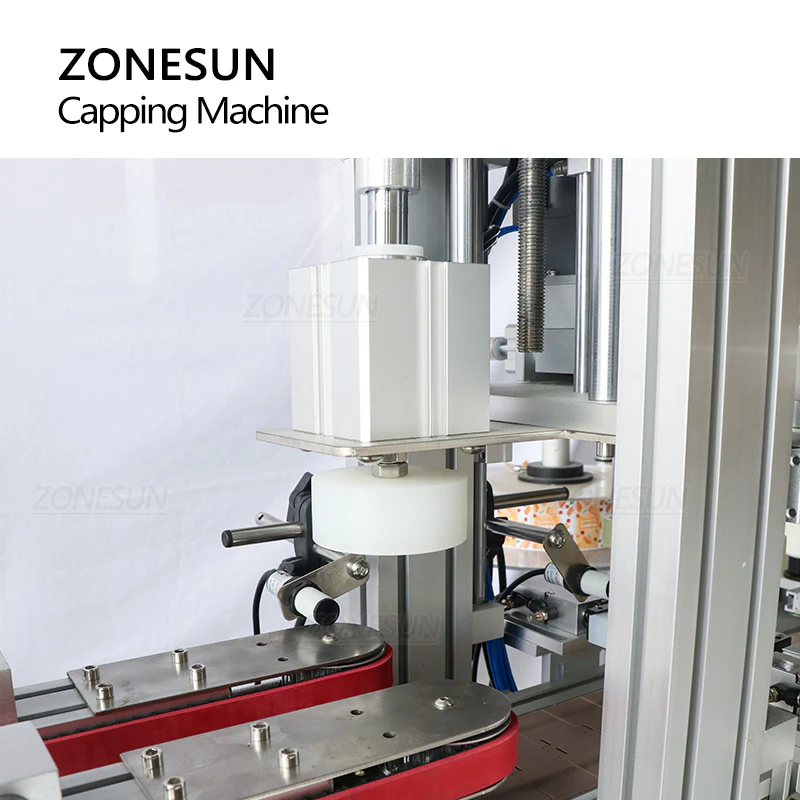

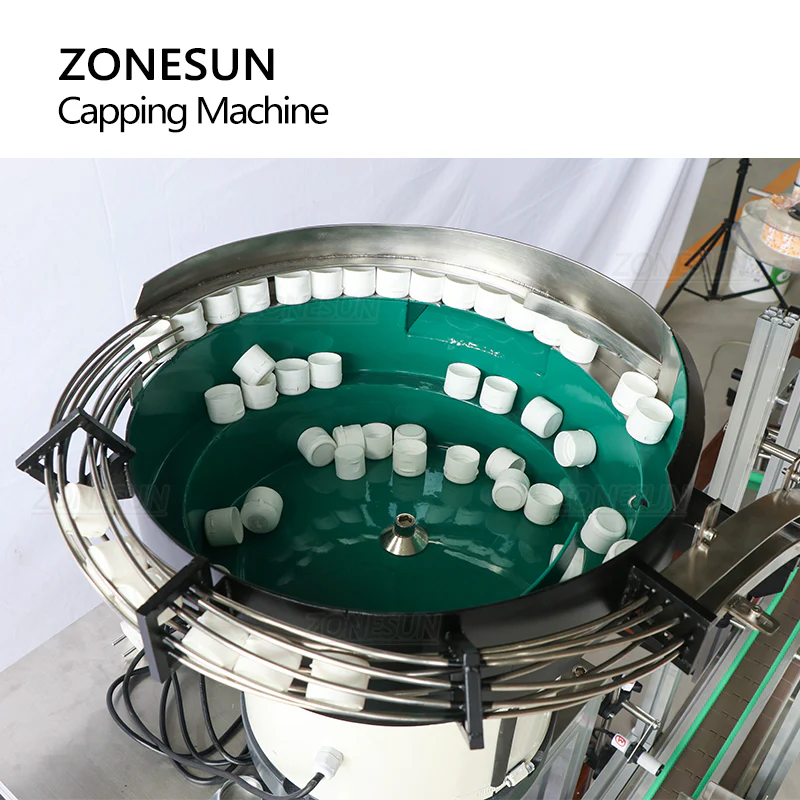

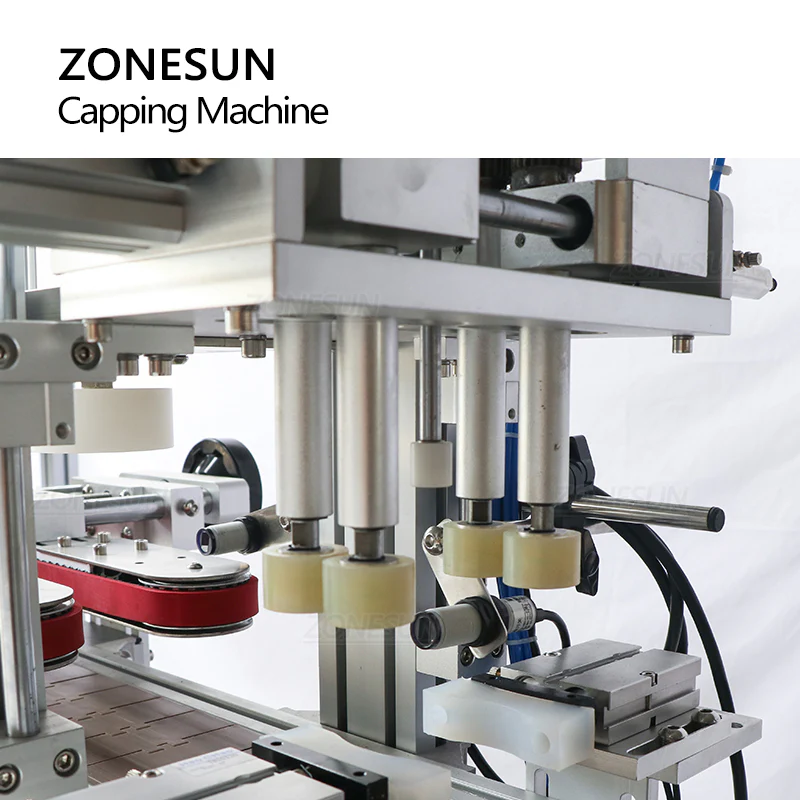

The ZONESUN ZS‑XG1870P Automatic Capping Machine is equipped with a cap vibratory bowl for efficient sorting and feeding of caps. A rubber head secures each cap, while four spinning heads ensure stable, versatile capping for various closure types. Compatible with plastic, metal, and specialty caps, it can integrate seamlessly with filling and labeling machines to form a complete automated production line—ideal for high‑efficiency packaging operations.
ZONESUN ZS‑XG1870P Automatic Capping Machine Specifications
Parameter Details
Model ZS‑XG1870P
Voltage AC 220V / 110V, 50–60Hz
Power 200W
Bottle Height 60–270 mm
Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle & cap size)
Conveyor Length 1117 mm
Working Pressure 0.4–0.6 MPa
Air Compressor Connector Size Outer Diameter 8 mm
Machine Dimensions Approx. 2100 × 580 × 1200 mm
Vibratory Bowl Dimensions Approx. 500 × 500 × 1180 mm
Packing Size – Machine Approx. 1140 × 615 × 1105 mm
Packing Size – Vibratory Bowl Approx. 1165 × 680 × 710 mm
Net Weight Approx. 85 kg (Machine) + 88 kg (Vibratory Bowl)
Gross Weight Approx. 114 kg (Machine) + 116 kg (Vibratory Bowl)
The ZONESUN ZS‑XG1870P Automatic Capping Machine is equipped with a cap vibratory bowl for efficient sorting and feeding of caps. A rubber head secures each cap, while four spinning heads ensure stable, versatile capping for various closure types. Compatible with plastic, metal, and specialty caps, it can integrate seamlessly with filling and labeling machines to form a complete automated production line—ideal for high‑efficiency packaging operations.
ZONESUN ZS‑XG1870P Automatic Capping Machine Specifications
Parameter Details
Model ZS‑XG1870P
Voltage AC 220V / 110V, 50–60Hz
Power 200W
Bottle Height 60–270 mm
Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle & cap size)
Conveyor Length 1117 mm
Working Pressure 0.4–0.6 MPa
Air Compressor Connector Size Outer Diameter 8 mm
Machine Dimensions Approx. 2100 × 580 × 1200 mm
Vibratory Bowl Dimensions Approx. 500 × 500 × 1180 mm
Packing Size – Machine Approx. 1140 × 615 × 1105 mm
Packing Size – Vibratory Bowl Approx. 1165 × 680 × 710 mm
Net Weight Approx. 85 kg (Machine) + 88 kg (Vibratory Bowl)
Gross Weight Approx. 114 kg (Machine) + 116 kg (Vibratory Bowl)
Original: $6,199.00
-70%$6,199.00
$1,859.70Description
The ZONESUN ZS‑XG1870P Automatic Capping Machine is equipped with a cap vibratory bowl for efficient sorting and feeding of caps. A rubber head secures each cap, while four spinning heads ensure stable, versatile capping for various closure types. Compatible with plastic, metal, and specialty caps, it can integrate seamlessly with filling and labeling machines to form a complete automated production line—ideal for high‑efficiency packaging operations.
ZONESUN ZS‑XG1870P Automatic Capping Machine Specifications
Parameter Details
Model ZS‑XG1870P
Voltage AC 220V / 110V, 50–60Hz
Power 200W
Bottle Height 60–270 mm
Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle & cap size)
Conveyor Length 1117 mm
Working Pressure 0.4–0.6 MPa
Air Compressor Connector Size Outer Diameter 8 mm
Machine Dimensions Approx. 2100 × 580 × 1200 mm
Vibratory Bowl Dimensions Approx. 500 × 500 × 1180 mm
Packing Size – Machine Approx. 1140 × 615 × 1105 mm
Packing Size – Vibratory Bowl Approx. 1165 × 680 × 710 mm
Net Weight Approx. 85 kg (Machine) + 88 kg (Vibratory Bowl)
Gross Weight Approx. 114 kg (Machine) + 116 kg (Vibratory Bowl)
