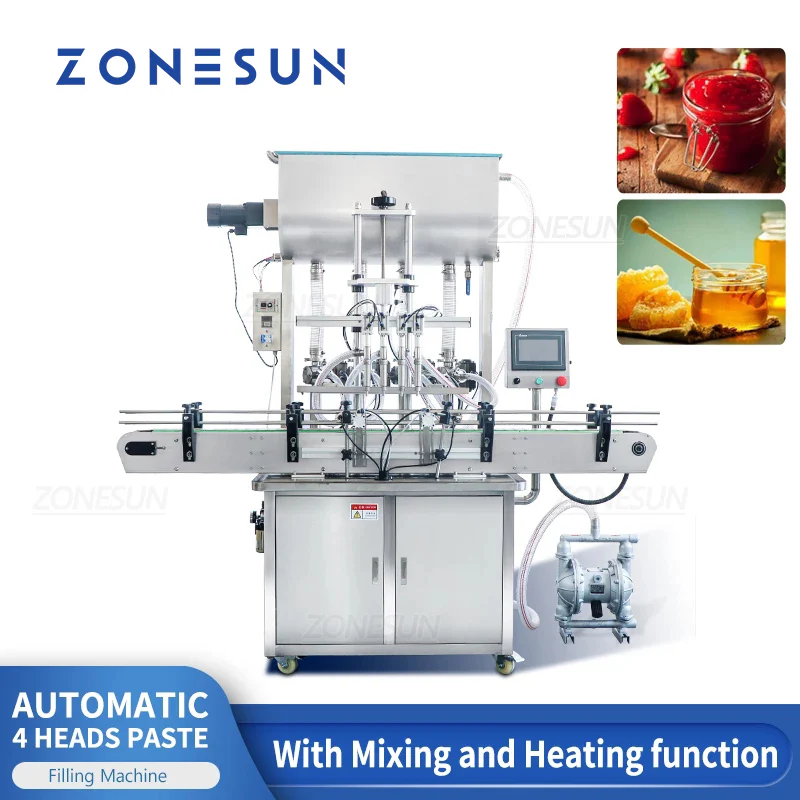

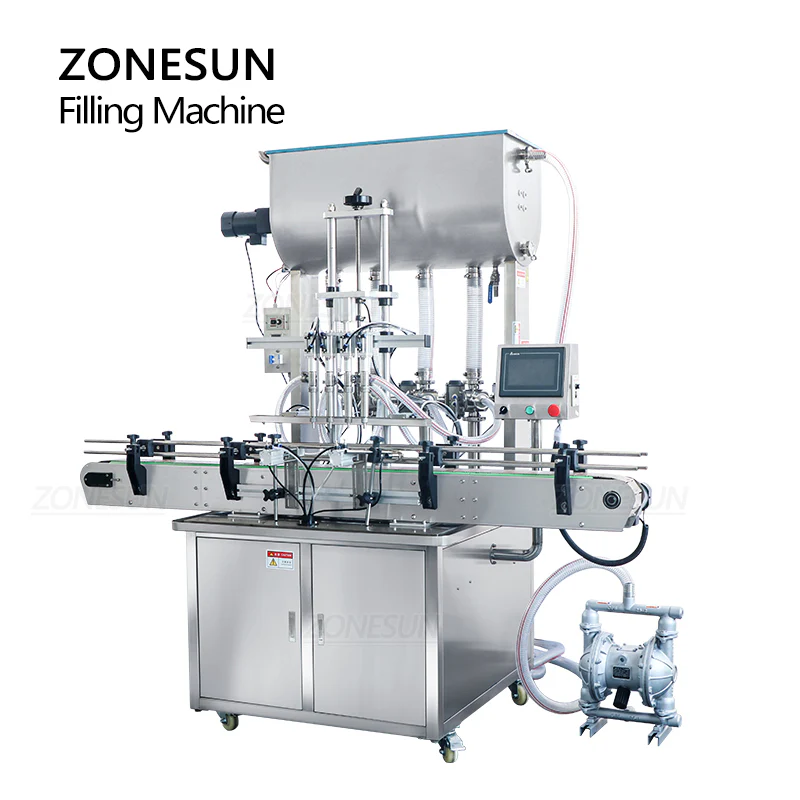

ZONESUN ZS-YT4T-4PM Paste Filling Machine with Heating & Mixing Function
The ZONESUN ZS-YT4T-4PM Automatic Paste/Liquid Filling Machine is engineered for precision filling of viscous products such as chocolate, honey, and chili paste. Equipped with integrated mixing and heating functions, it ensures consistent texture and temperature control during filling. With adjustable filling ranges and speeds, it supports a wide variety of container sizes. Compatible with automatic capping and labeling systems, this machine streamlines production for industries including food, beverage, and daily chemicals.
ZS-YT4T-4PM Automatic Paste/Liquid Filling Machine – Technical Specifications
Parameter Specification
Machine Model ZS-YT4T-4PM
Voltage 110V / 220V, 50–60Hz, 600W
Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml / 300–3000ml / 1000–5000ml
Working Speed 20–50 bottles/min (depends on bottle size & material)
Heating Temperature Approx. 0–300°C
Mixing Speed Approx. 1200 r/min
Filling Accuracy < ±1%
Air Pressure Requirement 0.5–0.7MPa
Conveyor Size (L × W) Approx. 2000 × 100mm

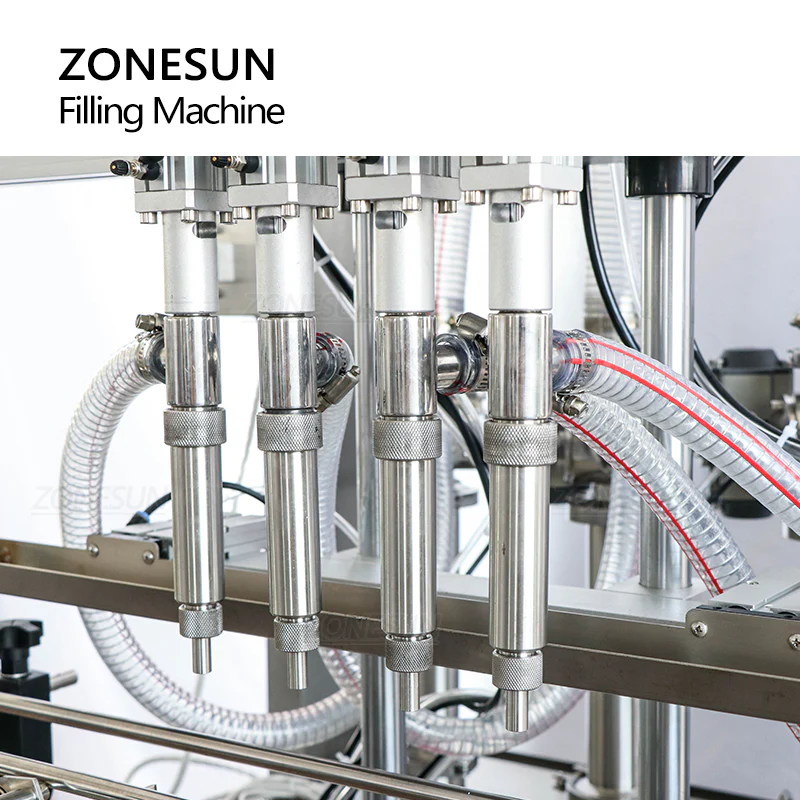

Filling Nozzle Diameter φ10mm
Air Compressor Connector Size φ8mm
Machine Dimensions (L × W × H) Approx. 975 × 1020 × 2010mm
Machine Weight Approx. 329kg
Package Dimensions (L × W × H) Approx. 1660 × 1130 × 2130mm
Package Weight Approx. 329kg
The ZONESUN ZS-YT4T-4PM Automatic Paste/Liquid Filling Machine is engineered for precision filling of viscous products such as chocolate, honey, and chili paste. Equipped with integrated mixing and heating functions, it ensures consistent texture and temperature control during filling. With adjustable filling ranges and speeds, it supports a wide variety of container sizes. Compatible with automatic capping and labeling systems, this machine streamlines production for industries including food, beverage, and daily chemicals.
ZS-YT4T-4PM Automatic Paste/Liquid Filling Machine – Technical Specifications
Parameter Specification
Machine Model ZS-YT4T-4PM
Voltage 110V / 220V, 50–60Hz, 600W
Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml / 300–3000ml / 1000–5000ml
Working Speed 20–50 bottles/min (depends on bottle size & material)
Heating Temperature Approx. 0–300°C
Mixing Speed Approx. 1200 r/min
Filling Accuracy < ±1%
Air Pressure Requirement 0.5–0.7MPa
Conveyor Size (L × W) Approx. 2000 × 100mm
Filling Nozzle Diameter φ10mm
Air Compressor Connector Size φ8mm
Machine Dimensions (L × W × H) Approx. 975 × 1020 × 2010mm
Machine Weight Approx. 329kg
Package Dimensions (L × W × H) Approx. 1660 × 1130 × 2130mm
Package Weight Approx. 329kg
Original: $7,284.09
-70%$7,284.09
$2,185.23Description
The ZONESUN ZS-YT4T-4PM Automatic Paste/Liquid Filling Machine is engineered for precision filling of viscous products such as chocolate, honey, and chili paste. Equipped with integrated mixing and heating functions, it ensures consistent texture and temperature control during filling. With adjustable filling ranges and speeds, it supports a wide variety of container sizes. Compatible with automatic capping and labeling systems, this machine streamlines production for industries including food, beverage, and daily chemicals.
ZS-YT4T-4PM Automatic Paste/Liquid Filling Machine – Technical Specifications
Parameter Specification
Machine Model ZS-YT4T-4PM
Voltage 110V / 220V, 50–60Hz, 600W
Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml / 300–3000ml / 1000–5000ml
Working Speed 20–50 bottles/min (depends on bottle size & material)
Heating Temperature Approx. 0–300°C
Mixing Speed Approx. 1200 r/min
Filling Accuracy < ±1%
Air Pressure Requirement 0.5–0.7MPa
Conveyor Size (L × W) Approx. 2000 × 100mm
Filling Nozzle Diameter φ10mm
Air Compressor Connector Size φ8mm
Machine Dimensions (L × W × H) Approx. 975 × 1020 × 2010mm
Machine Weight Approx. 329kg
Package Dimensions (L × W × H) Approx. 1660 × 1130 × 2130mm
Package Weight Approx. 329kg
