ZONESUN ZS-YTCPD5 Ceramic Pump Micro Liquid Filling Machine
The ZS-YTCPD5 is a precision laboratory-grade filling machine equipped with five ceramic plunger pumps. Engineered for ultra-small volume dispensing, it delivers exceptional accuracy down to 0.01 mL per fill. Ideal for pharmaceuticals, cosmetics, and chemical research, this compact unit ensures consistent dosing and customizable nozzle configurations for specialized applications.
Product Specifications — Model ZS-YTCPD5
Parameter Details
Model ZS-YTCPD5
Voltage 220V / 110V, 50–60Hz
Power 800W

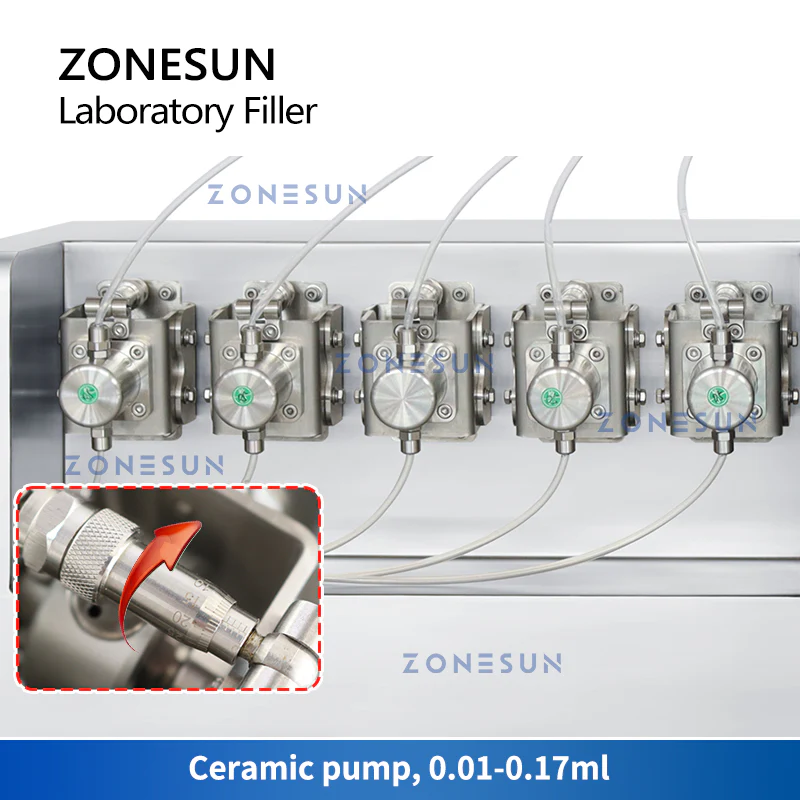

Filling Pump Type Ceramic Plunger Pump
Nozzles ID: Φ0.5 mm × 5 (customizable)
Filling Range (per pump) 0.01–0.17 mL
Filling Accuracy ≥99.5%
Machine Dimensions Approx. 860 × 410 × 405 mm
Machine Weight Approx. 44 kg
Package Dimensions Approx. 950 × 520 × 570 mm
Package Weight Approx. 63 kg
The ZS-YTCPD5 is a precision laboratory-grade filling machine equipped with five ceramic plunger pumps. Engineered for ultra-small volume dispensing, it delivers exceptional accuracy down to 0.01 mL per fill. Ideal for pharmaceuticals, cosmetics, and chemical research, this compact unit ensures consistent dosing and customizable nozzle configurations for specialized applications.
Product Specifications — Model ZS-YTCPD5
Parameter Details
Model ZS-YTCPD5
Voltage 220V / 110V, 50–60Hz
Power 800W
Filling Pump Type Ceramic Plunger Pump
Nozzles ID: Φ0.5 mm × 5 (customizable)
Filling Range (per pump) 0.01–0.17 mL
Filling Accuracy ≥99.5%
Machine Dimensions Approx. 860 × 410 × 405 mm
Machine Weight Approx. 44 kg
Package Dimensions Approx. 950 × 520 × 570 mm
Package Weight Approx. 63 kg
Original: $9,999.00
-70%$9,999.00
$2,999.70Description
The ZS-YTCPD5 is a precision laboratory-grade filling machine equipped with five ceramic plunger pumps. Engineered for ultra-small volume dispensing, it delivers exceptional accuracy down to 0.01 mL per fill. Ideal for pharmaceuticals, cosmetics, and chemical research, this compact unit ensures consistent dosing and customizable nozzle configurations for specialized applications.
Product Specifications — Model ZS-YTCPD5
Parameter Details
Model ZS-YTCPD5
Voltage 220V / 110V, 50–60Hz
Power 800W
Filling Pump Type Ceramic Plunger Pump
Nozzles ID: Φ0.5 mm × 5 (customizable)
Filling Range (per pump) 0.01–0.17 mL
Filling Accuracy ≥99.5%
Machine Dimensions Approx. 860 × 410 × 405 mm
Machine Weight Approx. 44 kg
Package Dimensions Approx. 950 × 520 × 570 mm
Package Weight Approx. 63 kg
