ZONESUN ZS-YTMP9C 9-Nozzle Magnetic Pump Liquid Filling Machine
The ZONESUN ZS-YTMP9C is a high-performance liquid filling machine equipped with 9 magnetic pumps and 9 diving nozzles for precise, splash-free filling. Designed for versatility, it supports a wide range of bottle sizes and filling volumes from 3ml to 1000ml. Each pump delivers up to 5500ml/min, enabling a working speed of 45 bottles per minute (based on 250ml). The 316 stainless steel magnetic pumps ensure durability and hygiene, making it ideal for cosmetics, pharmaceuticals, chemicals, and food-grade liquids. Customizable lifting devices are available to match your specific bottle requirements—ZONESUN delivers reliable solutions for every packaging need.
Machine Specifications
Model: ZS-YTMP9C
Power Supply: 110/220V, 50–60Hz
Maximum Flow: Velocity 5500ml/min (per pump)
Working Speed：45 bottles/min (based on 250ml volume)

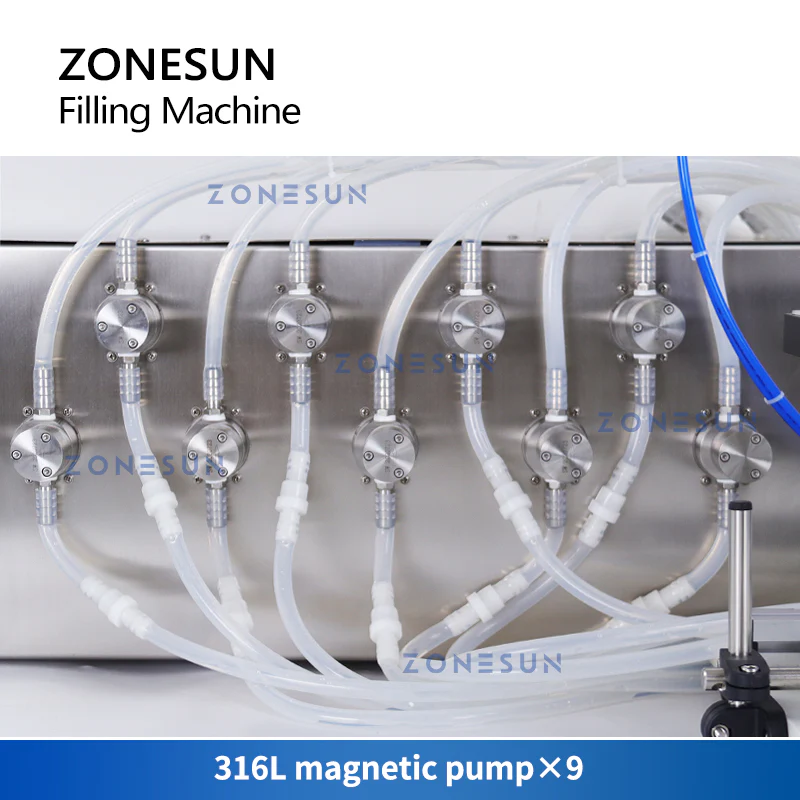

Pump Type：316 Stainless Steel Magnetic Pump
Filling Nozzle：Diameter 6mm / 8mm
Delay Range：0.01–999.9 seconds
Count Range：1–99,999 times
Filling Volume：3–1000ml
Air Compressor Connector Outer Diameter: 8mm
The ZONESUN ZS-YTMP9C is a high-performance liquid filling machine equipped with 9 magnetic pumps and 9 diving nozzles for precise, splash-free filling. Designed for versatility, it supports a wide range of bottle sizes and filling volumes from 3ml to 1000ml. Each pump delivers up to 5500ml/min, enabling a working speed of 45 bottles per minute (based on 250ml). The 316 stainless steel magnetic pumps ensure durability and hygiene, making it ideal for cosmetics, pharmaceuticals, chemicals, and food-grade liquids. Customizable lifting devices are available to match your specific bottle requirements—ZONESUN delivers reliable solutions for every packaging need.
Machine Specifications
Model: ZS-YTMP9C
Power Supply: 110/220V, 50–60Hz
Maximum Flow: Velocity 5500ml/min (per pump)
Working Speed：45 bottles/min (based on 250ml volume)
Pump Type：316 Stainless Steel Magnetic Pump
Filling Nozzle：Diameter 6mm / 8mm
Delay Range：0.01–999.9 seconds
Count Range：1–99,999 times
Filling Volume：3–1000ml
Air Compressor Connector Outer Diameter: 8mm
Original: $2,780.00
-70%$2,780.00
$834.00Description
The ZONESUN ZS-YTMP9C is a high-performance liquid filling machine equipped with 9 magnetic pumps and 9 diving nozzles for precise, splash-free filling. Designed for versatility, it supports a wide range of bottle sizes and filling volumes from 3ml to 1000ml. Each pump delivers up to 5500ml/min, enabling a working speed of 45 bottles per minute (based on 250ml). The 316 stainless steel magnetic pumps ensure durability and hygiene, making it ideal for cosmetics, pharmaceuticals, chemicals, and food-grade liquids. Customizable lifting devices are available to match your specific bottle requirements—ZONESUN delivers reliable solutions for every packaging need.
Machine Specifications
Model: ZS-YTMP9C
Power Supply: 110/220V, 50–60Hz
Maximum Flow: Velocity 5500ml/min (per pump)
Working Speed：45 bottles/min (based on 250ml volume)
Pump Type：316 Stainless Steel Magnetic Pump
Filling Nozzle：Diameter 6mm / 8mm
Delay Range：0.01–999.9 seconds
Count Range：1–99,999 times
Filling Volume：3–1000ml
Air Compressor Connector Outer Diameter: 8mm
