ZONESUN ZS-YTW250L Drum Filling Machine with Gear Pump & Scale

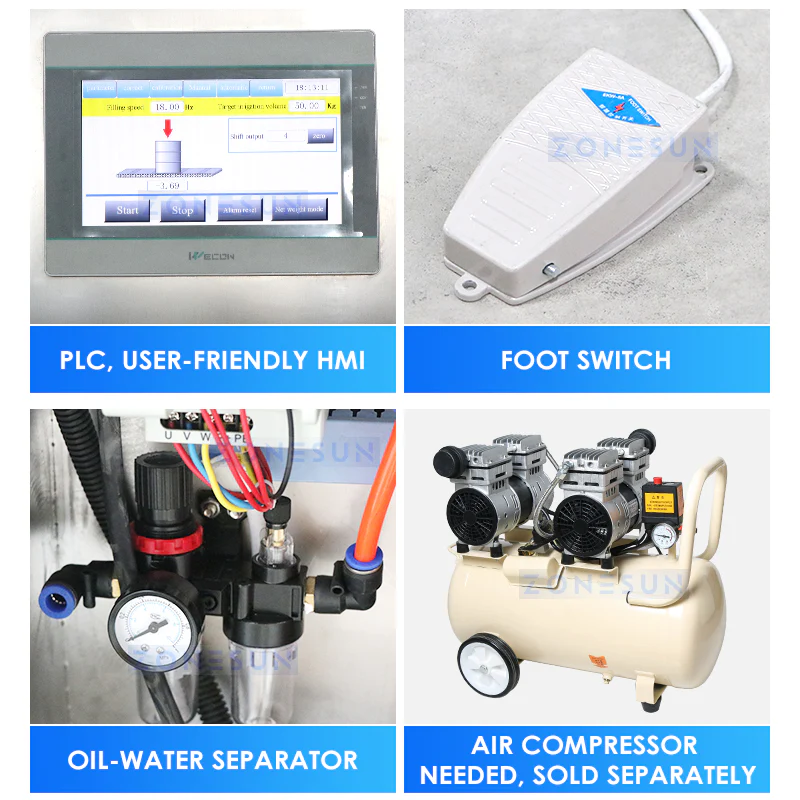

The ZS-YTW250L is a high-efficiency filling machine designed for drums and barrels. It features a roller conveyor for smooth transport and a built-in weighing system for precise filling. Operated by footswitch, it uses a large-flow gear pump and slows down at the end of each fill to prevent splashing. Ideal for industrial liquid handling.
Parameter Details
Model ZS-YTW250L
Voltage 380V / 50Hz
Power 11.5 kW
Filling Pump Gear Pump
Number of Filling Heads 1
Filling Range 100–250 Liters
Conveyor Length 5 meters (customizable)
Output Capacity ≤45 drums/hour (based on 200L drums)
Required Air Source 0.6 MPa
Filling Accuracy ≥±99.8% (material-dependent)
Machine Dimensions Approx. 450 × 1000 × 1700 mm
Package Dimensions Approx. 1360 × 1100 × 1840 mm
Package Weight Approx. 420 kg
The ZS-YTW250L is a high-efficiency filling machine designed for drums and barrels. It features a roller conveyor for smooth transport and a built-in weighing system for precise filling. Operated by footswitch, it uses a large-flow gear pump and slows down at the end of each fill to prevent splashing. Ideal for industrial liquid handling.
Parameter Details
Model ZS-YTW250L
Voltage 380V / 50Hz
Power 11.5 kW
Filling Pump Gear Pump
Number of Filling Heads 1
Filling Range 100–250 Liters
Conveyor Length 5 meters (customizable)
Output Capacity ≤45 drums/hour (based on 200L drums)
Required Air Source 0.6 MPa
Filling Accuracy ≥±99.8% (material-dependent)
Machine Dimensions Approx. 450 × 1000 × 1700 mm
Package Dimensions Approx. 1360 × 1100 × 1840 mm
Package Weight Approx. 420 kg
Original: $7,800.00
-70%$7,800.00
$2,340.00Description
The ZS-YTW250L is a high-efficiency filling machine designed for drums and barrels. It features a roller conveyor for smooth transport and a built-in weighing system for precise filling. Operated by footswitch, it uses a large-flow gear pump and slows down at the end of each fill to prevent splashing. Ideal for industrial liquid handling.
Parameter Details
Model ZS-YTW250L
Voltage 380V / 50Hz
Power 11.5 kW
Filling Pump Gear Pump
Number of Filling Heads 1
Filling Range 100–250 Liters
Conveyor Length 5 meters (customizable)
Output Capacity ≤45 drums/hour (based on 200L drums)
Required Air Source 0.6 MPa
Filling Accuracy ≥±99.8% (material-dependent)
Machine Dimensions Approx. 450 × 1000 × 1700 mm
Package Dimensions Approx. 1360 × 1100 × 1840 mm
Package Weight Approx. 420 kg
