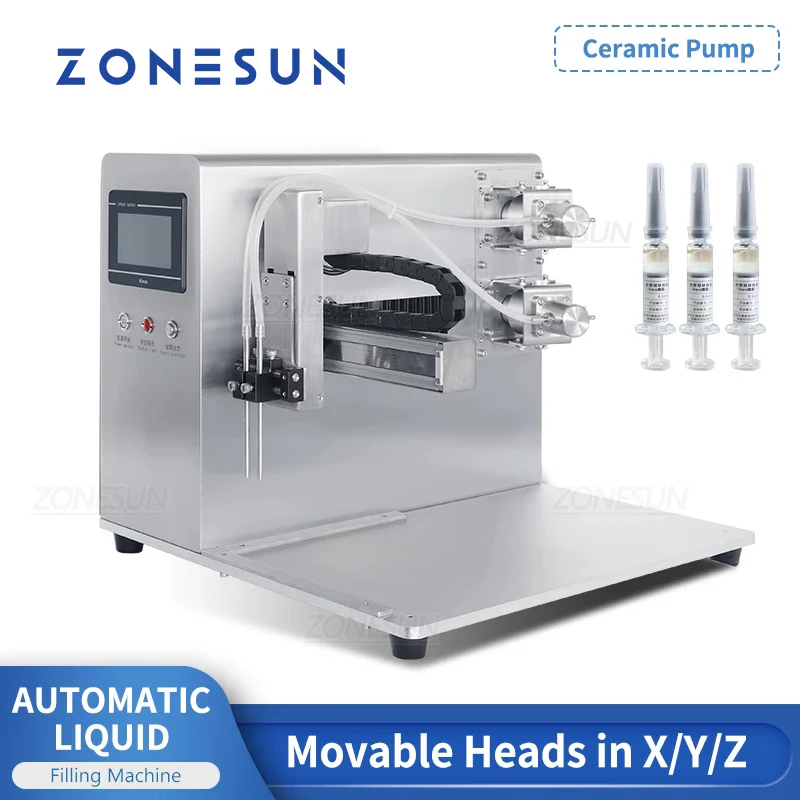

ZONESUN ZS-YTXY2Z Ceramic Pump Small-dose Liquid Filling Machine
The ZONESUN ZS-YTXY2Z is a precision-engineered liquid filling machine designed for small-dose applications such as chemical reagents, essences, and oral liquids. Equipped with a ceramic plunger pump and up to four filling heads, it delivers consistent performance with adjustable filling ranges and speeds up to 100 bottles per minute. Its intelligent X-Y-Z axis movement ensures accurate positioning, while the customizable bottle holder adapts to various container sizes. Ideal for pharmaceutical, cosmetic, and daily chemical industries, this compact machine offers high efficiency and easy parameter control.
ZS-YTXY2Z Ceramic Plunger Pump Liquid Filling Machine – Technical Specification
Item Specification
Machine Model ZS-YTXY2Z
Voltage 220V / 110V, 50–60Hz
Machine Pump Type Ceramic Plunger Pump
Number of Filling Heads 1 / 2 / 3 / 4
Filling Range 0.2–1.5ml / 0.3–2.8ml / 0.6–6ml / 1–12ml / 2–25ml
Filling Speed Approx. 0–100 bottles/min (depends on liquid & bottle size)
Filling Accuracy ±200% (Please confirm if this is a typo)
Moving Distance (X×Y×Z) 230mm × 200mm × 70mm
Machine Dimensions Approx. 520mm × 470mm × 435mm
Machine Weight Approx. 37kg
The ZONESUN ZS-YTXY2Z is a precision-engineered liquid filling machine designed for small-dose applications such as chemical reagents, essences, and oral liquids. Equipped with a ceramic plunger pump and up to four filling heads, it delivers consistent performance with adjustable filling ranges and speeds up to 100 bottles per minute. Its intelligent X-Y-Z axis movement ensures accurate positioning, while the customizable bottle holder adapts to various container sizes. Ideal for pharmaceutical, cosmetic, and daily chemical industries, this compact machine offers high efficiency and easy parameter control.
ZS-YTXY2Z Ceramic Plunger Pump Liquid Filling Machine – Technical Specification
Item Specification
Machine Model ZS-YTXY2Z
Voltage 220V / 110V, 50–60Hz
Machine Pump Type Ceramic Plunger Pump
Number of Filling Heads 1 / 2 / 3 / 4
Filling Range 0.2–1.5ml / 0.3–2.8ml / 0.6–6ml / 1–12ml / 2–25ml
Filling Speed Approx. 0–100 bottles/min (depends on liquid & bottle size)
Filling Accuracy ±200% (Please confirm if this is a typo)
Moving Distance (X×Y×Z) 230mm × 200mm × 70mm
Machine Dimensions Approx. 520mm × 470mm × 435mm
Machine Weight Approx. 37kg
Original: $9,149.00
-70%$9,149.00
$2,744.70Description
The ZONESUN ZS-YTXY2Z is a precision-engineered liquid filling machine designed for small-dose applications such as chemical reagents, essences, and oral liquids. Equipped with a ceramic plunger pump and up to four filling heads, it delivers consistent performance with adjustable filling ranges and speeds up to 100 bottles per minute. Its intelligent X-Y-Z axis movement ensures accurate positioning, while the customizable bottle holder adapts to various container sizes. Ideal for pharmaceutical, cosmetic, and daily chemical industries, this compact machine offers high efficiency and easy parameter control.
ZS-YTXY2Z Ceramic Plunger Pump Liquid Filling Machine – Technical Specification
Item Specification
Machine Model ZS-YTXY2Z
Voltage 220V / 110V, 50–60Hz
Machine Pump Type Ceramic Plunger Pump
Number of Filling Heads 1 / 2 / 3 / 4
Filling Range 0.2–1.5ml / 0.3–2.8ml / 0.6–6ml / 1–12ml / 2–25ml
Filling Speed Approx. 0–100 bottles/min (depends on liquid & bottle size)
Filling Accuracy ±200% (Please confirm if this is a typo)
Moving Distance (X×Y×Z) 230mm × 200mm × 70mm
Machine Dimensions Approx. 520mm × 470mm × 435mm
Machine Weight Approx. 37kg
