ZONESUN ZS-YTZL500S Vacuum Perfume Filling Machine Single Nozzle

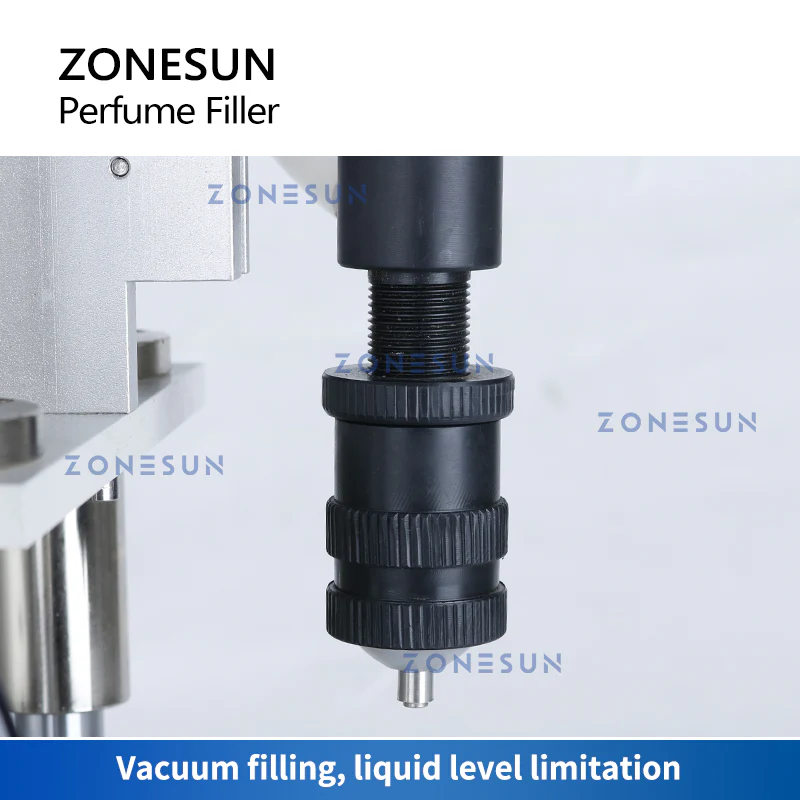

The ZONESUN ZS-YTZL500S is a compact pneumatic vacuum filling machine designed for precise and splash-free filling of perfumes and other low-viscosity liquids. Featuring a single nozzle and vacuum suction system, it prevents overflow and ensures clean, consistent fills. With a filling range of 5–500 ml and adjustable liquid level control, it supports bottles up to 200 mm in height and 22 mm in mouth diameter. Ideal for cosmetic and fragrance production, this tabletop unit offers quiet operation, easy setup, and reliable performance for small-scale bottling lines.
ZS-YTZL500S Liquid Filling Machine – Technical Specifications
Item Specification
Machine Model ZS-YTZL500S
Number of Filling Nozzles 1
Machine Power Approx. 15W
Filling Range Approx. 5–500 ml
Filling Speed Approx. 5–15 bottles/min
Air Pressure 0.4–0.8 MPa
Applicable Bottle Height <200 mm
Applicable Bottle Mouth Dia. <22 mm
Adjustable Liquid Level Range 5–20 mm
Machine Size Approx. 300 × 330 × 690 mm
Machine Weight Approx. 15.5 kg
Package Size Approx. 420 × 360 × 745 mm
Package Weight Approx. 25 kg
The ZONESUN ZS-YTZL500S is a compact pneumatic vacuum filling machine designed for precise and splash-free filling of perfumes and other low-viscosity liquids. Featuring a single nozzle and vacuum suction system, it prevents overflow and ensures clean, consistent fills. With a filling range of 5–500 ml and adjustable liquid level control, it supports bottles up to 200 mm in height and 22 mm in mouth diameter. Ideal for cosmetic and fragrance production, this tabletop unit offers quiet operation, easy setup, and reliable performance for small-scale bottling lines.
ZS-YTZL500S Liquid Filling Machine – Technical Specifications
Item Specification
Machine Model ZS-YTZL500S
Number of Filling Nozzles 1
Machine Power Approx. 15W
Filling Range Approx. 5–500 ml
Filling Speed Approx. 5–15 bottles/min
Air Pressure 0.4–0.8 MPa
Applicable Bottle Height <200 mm
Applicable Bottle Mouth Dia. <22 mm
Adjustable Liquid Level Range 5–20 mm
Machine Size Approx. 300 × 330 × 690 mm
Machine Weight Approx. 15.5 kg
Package Size Approx. 420 × 360 × 745 mm
Package Weight Approx. 25 kg
Original: $559.10
-70%$559.10
$167.73Description
The ZONESUN ZS-YTZL500S is a compact pneumatic vacuum filling machine designed for precise and splash-free filling of perfumes and other low-viscosity liquids. Featuring a single nozzle and vacuum suction system, it prevents overflow and ensures clean, consistent fills. With a filling range of 5–500 ml and adjustable liquid level control, it supports bottles up to 200 mm in height and 22 mm in mouth diameter. Ideal for cosmetic and fragrance production, this tabletop unit offers quiet operation, easy setup, and reliable performance for small-scale bottling lines.
ZS-YTZL500S Liquid Filling Machine – Technical Specifications
Item Specification
Machine Model ZS-YTZL500S
Number of Filling Nozzles 1
Machine Power Approx. 15W
Filling Range Approx. 5–500 ml
Filling Speed Approx. 5–15 bottles/min
Air Pressure 0.4–0.8 MPa
Applicable Bottle Height <200 mm
Applicable Bottle Mouth Dia. <22 mm
Adjustable Liquid Level Range 5–20 mm
Machine Size Approx. 300 × 330 × 690 mm
Machine Weight Approx. 15.5 kg
Package Size Approx. 420 × 360 × 745 mm
Package Weight Approx. 25 kg
