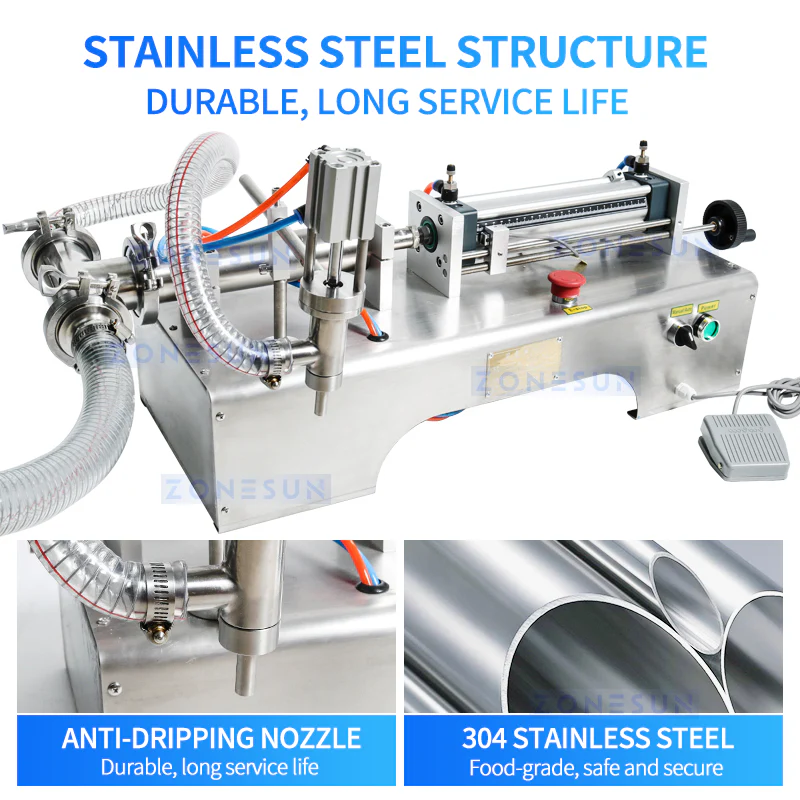

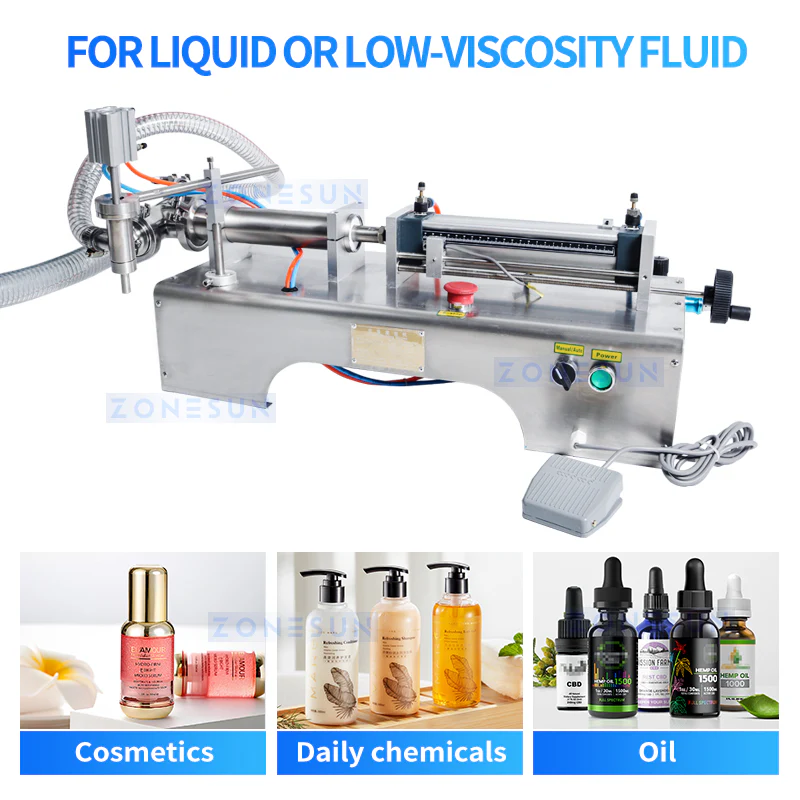

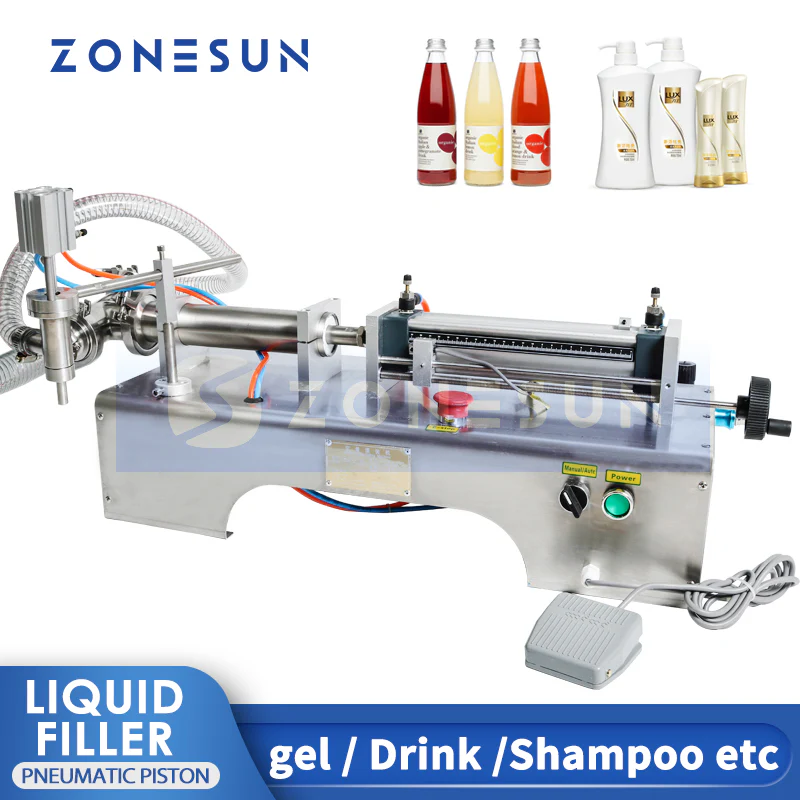

The ZONESUN ZS-YT1 is a high-precision pneumatic liquid filling machine designed for efficient bottling of low-viscosity liquids. Built with food-grade stainless steel and a rugged rotary valve system, it ensures sanitary operation and easy maintenance. Ideal for small to medium-scale production, it features adjustable piston feed speed, a no-drip system, and quick-connect pneumatic fittings. Whether you're filling beverages, chemicals, or cosmetic liquids, this machine offers reliable performance and user-friendly operation.

ZONESUN ZS-YT1 Liquid Filling Machine Specifications
Parameter Specification
Model ZS-YT1
Voltage 220V/50Hz or 110V/60Hz (Optional)
Power 750W
Filling Speed About 15–25 bottles/min
Filling Range 5–100ml / 10–200ml / 50–500ml / 100–1000ml / 500–2500ml / 1000–5000ml
Filling Accuracy ≥ ±1%
Air Pressure 0.4–0.6 MPa
Air Capacity >30L
