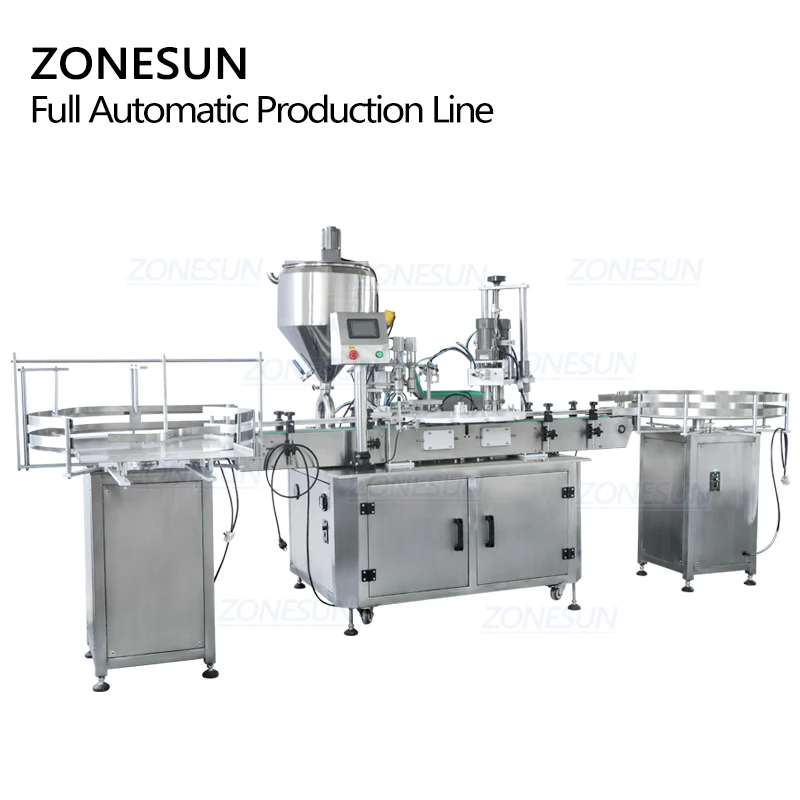

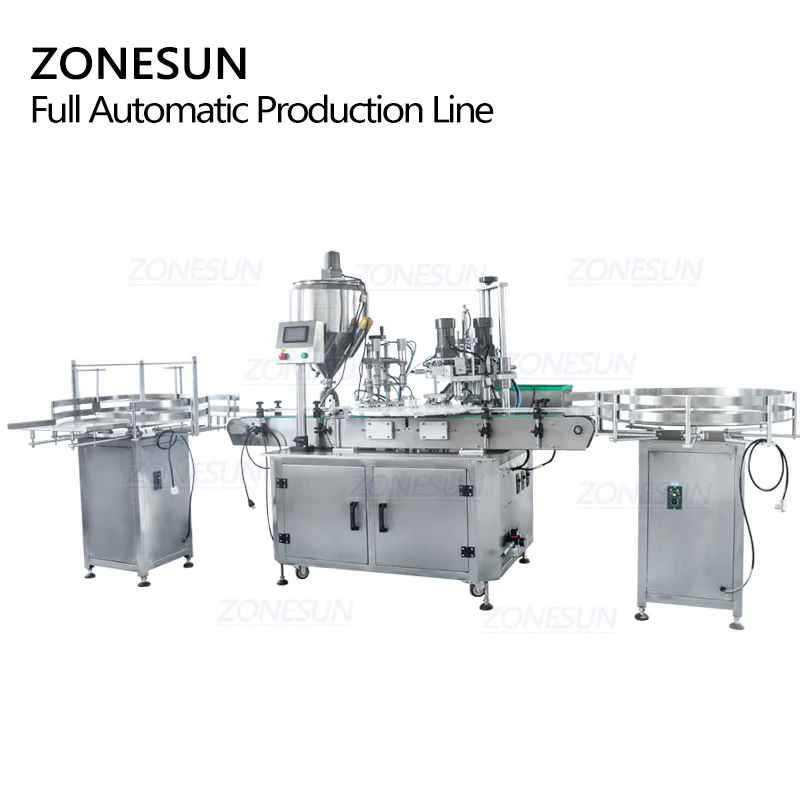

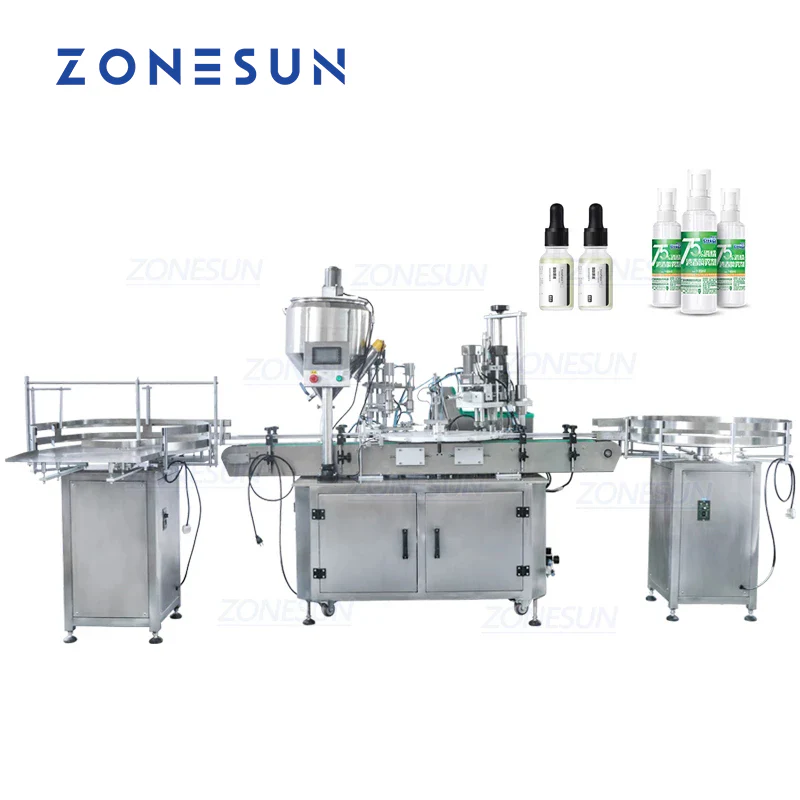

ZONESUN Automatic Liquid Filling and Capping Line for Bottles
This fully automatic production line integrates bottle unscrambling, liquid/paste filling, capping, and bottle collecting—streamlining your packaging process and boosting efficiency. It is suitable for filling a wide range of products including juice, cream, perfume, and more. Widely used in cosmetics, pharmaceuticals, beverages, and daily chemical industries, the system supports both square and round bottles and offers customizable configurations to meet specific production needs.
Bottle Unscrambler – Technical Specifications
| Parameter | ZS-LP800Z | ZS-LP1000Z |
|---|---|---|
| Turntable Diameter | 800mm | 1000mm |
| Suitable Bottle Diameter | 20–100mm | 20–100mm |
| Suitable Bottle Height | 30–120mm | 30–120mm |
| Working Speed | 40–60 bottles/min (depends on bottle size) | 40–60 bottles/min (depends on bottle size) |
| Power Supply | 220V / 110V, 50–60Hz, 50W | 220V / 110V, 50–60Hz, 50W |
| Package Size | About 115 × 100 × 132cm | About 135 × 131.5 × 123.5cm |
| Net Weight / Gross Weight | About 50kg / 65kg | About 135kg / 180kg |
Machine Model ZS-AFC3
Voltage 220V / 110V, 50–60Hz, 1.2kW
Filling Material Liquid and paste
Filling Range 5–50ml / 10–100ml / 50–300ml
Conveyor Size 1920mm × 100mm (L × W)
Bottle Diameter Customize
Temperature Range 0–180°C (Can be customized)
Bottle Cap Diameter ≥15mm
Working Speed About 20–30 bottles/min
Machine Size About 1210 × 910 × 1590mm
Package Size Main machine: About 2070 × 1040 × 1700mm <br> Cap feeder: About 845 × 700 × 1340mm
Net Weight / Gross Weight About 373.5kg / 488kg
Parameter Specification
Bottle Specifications Square bottle / Round bottle
Conveying Speed 0–20 revolutions per minute (adjustable)
Voltage 200V, 50Hz (110V can be customized)
Power Supply 50W
Turntable Diameter 800mm Available
Package Size About 1050 × 1000 × 1130mm
Net Weight / Gross Weight About 63kg / 73kg
This fully automatic production line integrates bottle unscrambling, liquid/paste filling, capping, and bottle collecting—streamlining your packaging process and boosting efficiency. It is suitable for filling a wide range of products including juice, cream, perfume, and more. Widely used in cosmetics, pharmaceuticals, beverages, and daily chemical industries, the system supports both square and round bottles and offers customizable configurations to meet specific production needs.
Bottle Unscrambler – Technical Specifications
| Parameter | ZS-LP800Z | ZS-LP1000Z |
|---|---|---|
| Turntable Diameter | 800mm | 1000mm |
| Suitable Bottle Diameter | 20–100mm | 20–100mm |
| Suitable Bottle Height | 30–120mm | 30–120mm |
| Working Speed | 40–60 bottles/min (depends on bottle size) | 40–60 bottles/min (depends on bottle size) |
| Power Supply | 220V / 110V, 50–60Hz, 50W | 220V / 110V, 50–60Hz, 50W |
| Package Size | About 115 × 100 × 132cm | About 135 × 131.5 × 123.5cm |
| Net Weight / Gross Weight | About 50kg / 65kg | About 135kg / 180kg |
Machine Model ZS-AFC3
Voltage 220V / 110V, 50–60Hz, 1.2kW
Filling Material Liquid and paste
Filling Range 5–50ml / 10–100ml / 50–300ml
Conveyor Size 1920mm × 100mm (L × W)
Bottle Diameter Customize
Temperature Range 0–180°C (Can be customized)
Bottle Cap Diameter ≥15mm
Working Speed About 20–30 bottles/min
Machine Size About 1210 × 910 × 1590mm
Package Size Main machine: About 2070 × 1040 × 1700mm <br> Cap feeder: About 845 × 700 × 1340mm
Net Weight / Gross Weight About 373.5kg / 488kg
Parameter Specification
Bottle Specifications Square bottle / Round bottle
Conveying Speed 0–20 revolutions per minute (adjustable)
Voltage 200V, 50Hz (110V can be customized)
Power Supply 50W
Turntable Diameter 800mm Available
Package Size About 1050 × 1000 × 1130mm
Net Weight / Gross Weight About 63kg / 73kg
Original: $14,329.00
-70%$14,329.00
$4,298.70Description
This fully automatic production line integrates bottle unscrambling, liquid/paste filling, capping, and bottle collecting—streamlining your packaging process and boosting efficiency. It is suitable for filling a wide range of products including juice, cream, perfume, and more. Widely used in cosmetics, pharmaceuticals, beverages, and daily chemical industries, the system supports both square and round bottles and offers customizable configurations to meet specific production needs.
Bottle Unscrambler – Technical Specifications
| Parameter | ZS-LP800Z | ZS-LP1000Z |
|---|---|---|
| Turntable Diameter | 800mm | 1000mm |
| Suitable Bottle Diameter | 20–100mm | 20–100mm |
| Suitable Bottle Height | 30–120mm | 30–120mm |
| Working Speed | 40–60 bottles/min (depends on bottle size) | 40–60 bottles/min (depends on bottle size) |
| Power Supply | 220V / 110V, 50–60Hz, 50W | 220V / 110V, 50–60Hz, 50W |
| Package Size | About 115 × 100 × 132cm | About 135 × 131.5 × 123.5cm |
| Net Weight / Gross Weight | About 50kg / 65kg | About 135kg / 180kg |
Machine Model ZS-AFC3
Voltage 220V / 110V, 50–60Hz, 1.2kW
Filling Material Liquid and paste
Filling Range 5–50ml / 10–100ml / 50–300ml
Conveyor Size 1920mm × 100mm (L × W)
Bottle Diameter Customize
Temperature Range 0–180°C (Can be customized)
Bottle Cap Diameter ≥15mm
Working Speed About 20–30 bottles/min
Machine Size About 1210 × 910 × 1590mm
Package Size Main machine: About 2070 × 1040 × 1700mm <br> Cap feeder: About 845 × 700 × 1340mm
Net Weight / Gross Weight About 373.5kg / 488kg
Parameter Specification
Bottle Specifications Square bottle / Round bottle
Conveying Speed 0–20 revolutions per minute (adjustable)
Voltage 200V, 50Hz (110V can be customized)
Power Supply 50W
Turntable Diameter 800mm Available
Package Size About 1050 × 1000 × 1130mm
Net Weight / Gross Weight About 63kg / 73kg
