ZONESUN ZS-FAL180A8 Automatic Liquid Filling Capping Labeling Line

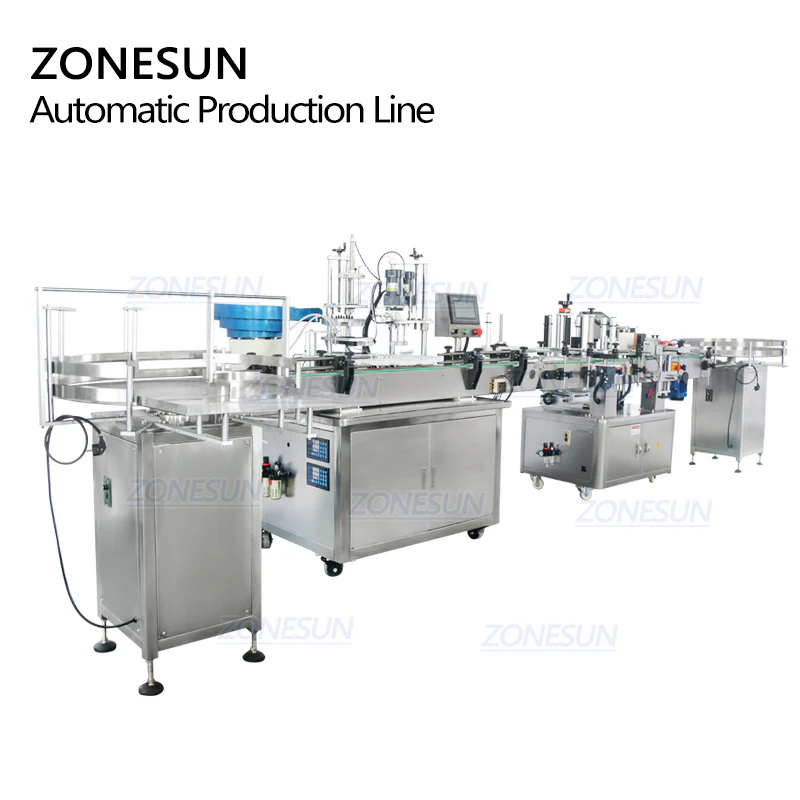

The ZONESUN ZS-FAL180A8 is a fully automatic production line integrating bottle unscrambling, magnetic pump liquid filling, capping, labeling, and bottle sorting. Designed for low-viscosity liquids such as perfume, juice, vinegar, and sauce, it features dual filling nozzles with independent speed control for precise dosing. The high-quality capping head accommodates various cap shapes, while the labeling system supports single or double-sided labeling on round bottles using a positioning method for accuracy. A PLC control panel simplifies operation, and the chain conveyor ensures smooth transport of large-volume containers. With an automatic cap feeder and customizable configurations, this line is ideal for pharmaceutical, cosmetic, and daily chemical industries.
Bottle Turntable – Model Comparison
| Specification | ZS-LP800Z | ZS-LP1000Z |
|---|---|---|
| Turntable Diameter | 80 cm | 100 cm |
| Suitable Bottle Diameter | 20–100 mm | 20–100 mm |
| Suitable Bottle Height | 30–320 mm | 30–320 mm |
| Working Speed | 40–60 bottles/min (depends on bottle size) | 40–60 bottles/min (depends on bottle size) |
| Power Supply | 220V / 110V, 50–60Hz, 50W | 220V / 110V, 50–60Hz, 50W |
| Package Size | Approx. 115 × 100 × 132 cm | Approx. 135 × 131.5 × 123.5 cm |
| Net Weight / Gross Weight | Approx. 50 kg / 65 kg | Approx. 135 kg / 180 kg |
Specification Details
Machine Model ZS-AFC1
Voltage AC220V / 110V, 50–60Hz
Max Power 300W
Bottle Diameter 25–50 mm (customizable)
Bottle Height 50–350 mm
Working Speed 0–40 bottles/min (depends on liquid, bottle & cap)
Air Pressure Required 0.4–0.6 MPa
Capping Torsion 4–9 kgf/cm
Conveyor Size Approx. 2000 × 100 mm (L × W)
Machine Dimensions Approx. 1015 × 800 × 1560 mm
Machine Weight Approx. 231 kg
Package Dimensions Approx. 2210 × 980 × 1740 mm
Package Weight Approx. 411 kg
Specification Details
Model ZS-TB260
Power Supply AC220V, 50/60Hz, 1500W
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1.0 mm
Suitable Bottle Diameter Φ30–100 mm
Label Size Range Length: 15–200 mm, Height: 15–150 mm
Roll Inner Diameter Φ76 mm
Roll Outer Diameter Φ350 mm
Conveyor Size 1950 × 100 mm (L × W)
Machine Dimensions Approx. 2000 × 1400 × 1300 mm (L × W × H)
Packing Dimensions Approx. 2120 × 940 × 1500 mm
