DESCRIPTION

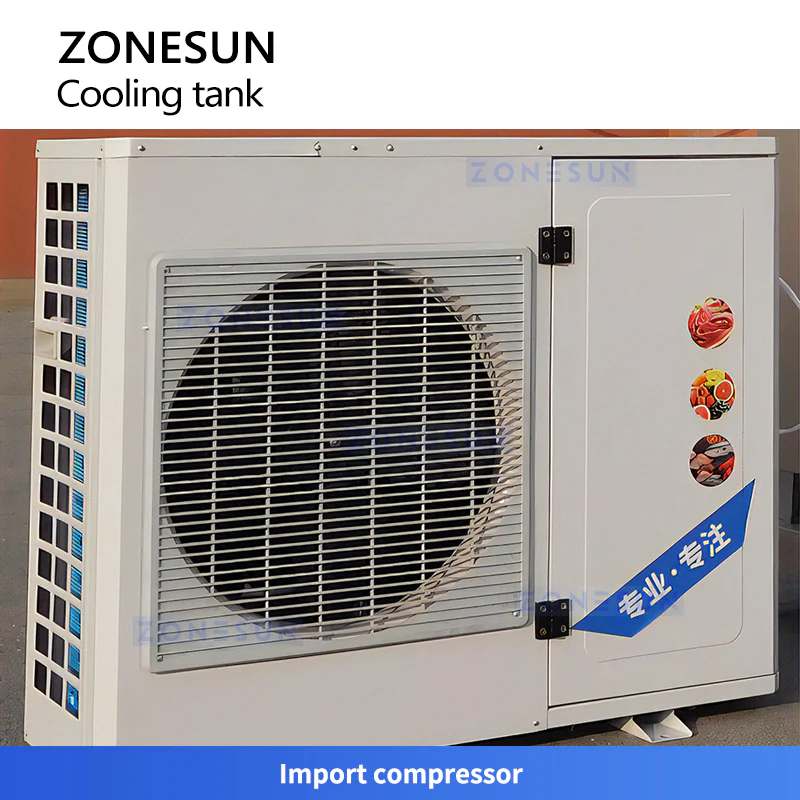

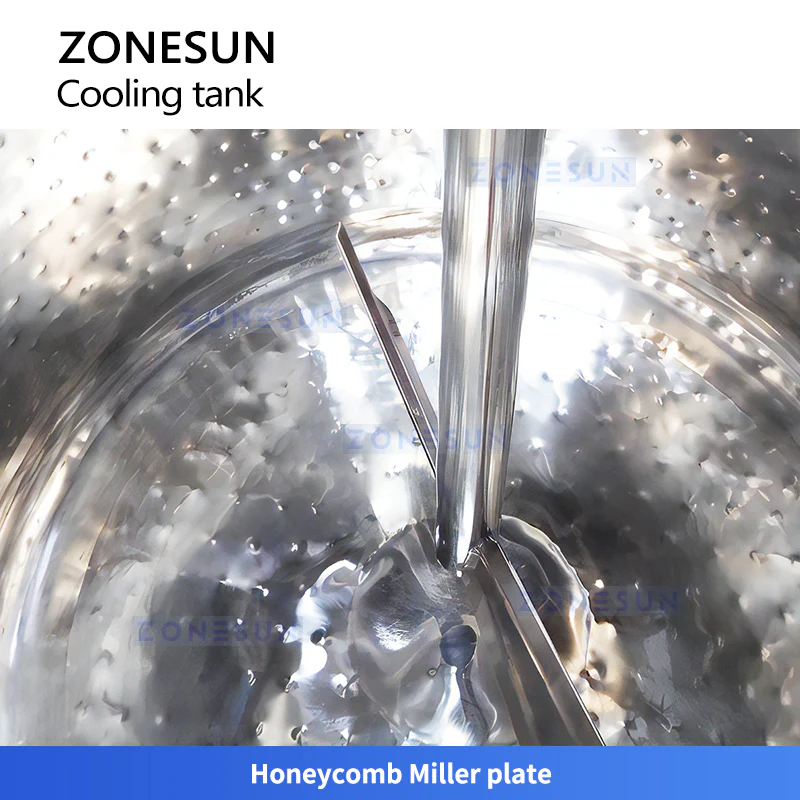

The ZS-CT200L is a high-performance refrigerated tank designed for liquid cooling and hygienic storage. Featuring honeycomb Miller plates for rapid heat exchange, a fully enclosed American compressor, and imported expansion valves, it ensures stable and energy-efficient operation. The SUS304 stainless steel body includes automatic stirring and CIP cleaning, making it ideal for dairy, beverage, and chemical industries.

PARAMETER

• Model：ZS-CT200L

• Tank Size：1550 × 1000 × 1350mm

• Unit Power：3P/set
• Refrigeration Temp：≥0°C
• Total Power：2kW

• Mixer Power：0.75kW

• Stirring Speed：36 rpm

• Plate Thickness：2mm


NOTE

Before use, please make sure the material temperature is below 45°C before feeding it into the cooling tank.
The compressor will start working only when the temperature is within this range, allowing the material to cool down to 2–6°C.
If the material is too hot, the compressor may fail to start or the cooling performance may be affected.
