DESCRIPTION

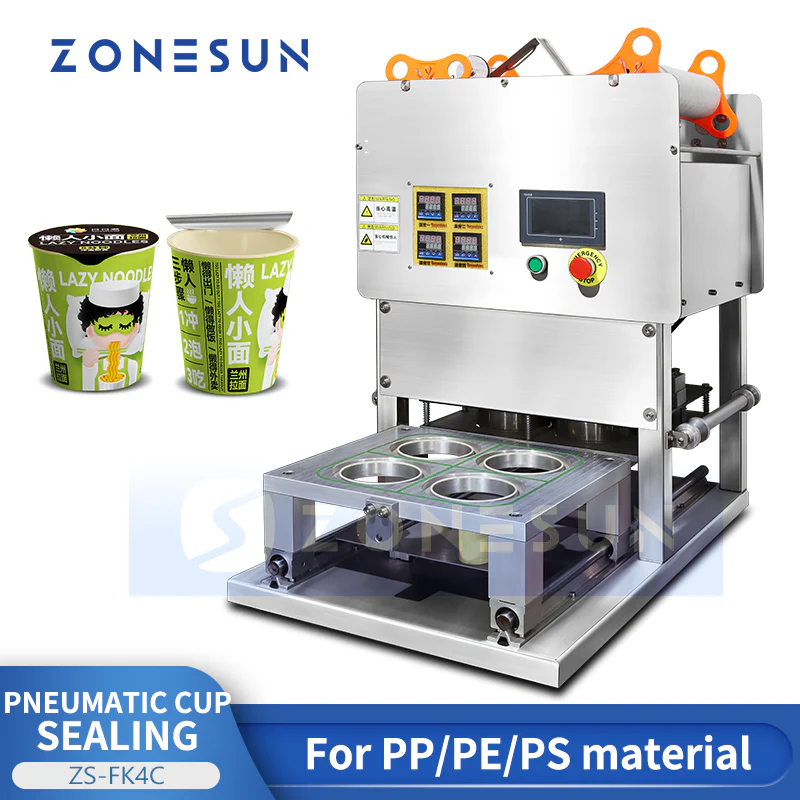

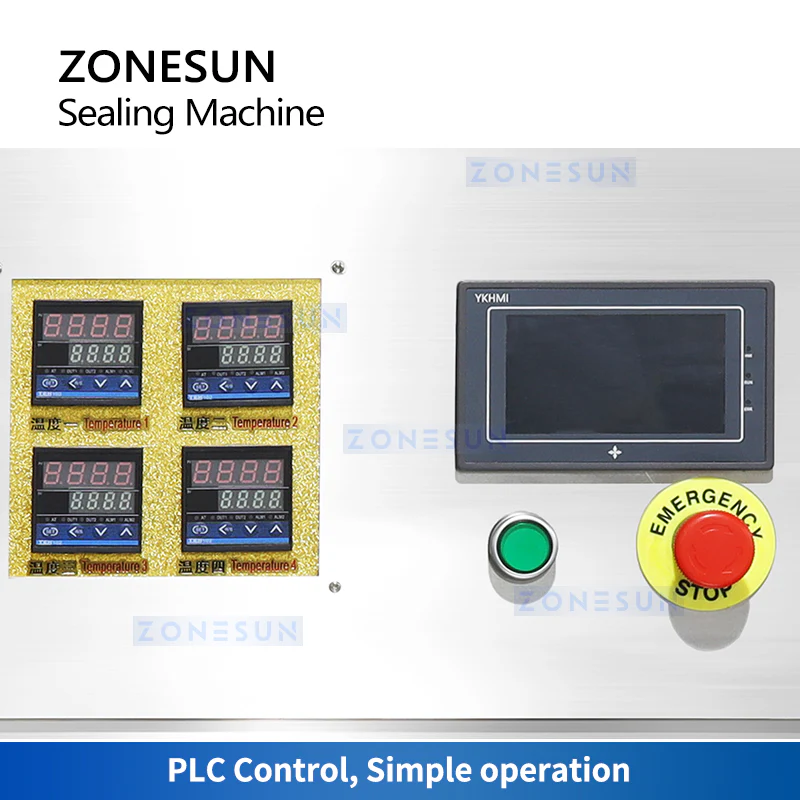

Introducing our semi-automatic sealing machine, equipped with a PCL intelligent control system that allows for regulating sealing time and temperature. With a strong and efficient sealing process, our machine can customize molds to adapt to various sizes, and shapes of trays for sealing cups, boxes, etc. It is widely used in soy milk, milk tea, fast food restaurants, snack shops, etc.

Whatever your packaging needs are, you can rely on ZONESUN.

ZS‑FK3530

• Mold Size: 350 × 300 × 20 mm
• Speed: 300–1000 pcs/h
• Voltage: 220 V / 50 Hz
• Power: 0.5–2 kW
• Temp Range: 0–300 °C
• Air Pressure: 0.5–0.7 MPa
• Air Consumption: 0.4 m³/h
• Size: 840 × 520 × 780 mm
• Weight: 80 kg

ZS‑FK4035

• Mold Size: 400 × 350 × 23 mm
• Speed: 400–1200 pcs/h
• Voltage: 220 V / 50 Hz
• Power: 1–2.5 kW
• Temp Range: 0–300 °C
• Air Pressure: 0.5–0.7 MPa
• Air Consumption: 0.4 m³/h
• Size: 950 × 570 × 790 mm
• Weight: 90 kg

ZS‑FK5040

• Mold Size: 500 × 400 × 25 mm
• Speed: 600–1200 pcs/h
• Voltage: 220 V / 50 Hz
• Power: 1–3 kW
• Temp Range: 0–300 °C
• Air Pressure: 0.5–0.7 MPa
• Air Consumption: 0.4 m³/h
• Size: 1050 × 670 × 840 mm
• Weight: 110 kg

Customizable molds of different shapes
