ZONESUN ZS-STB1 CCD Visual Flat Labeling Machine with Feeder System
DESCRIPTION
The Visual Inspection Labeling Machine with Feeder and Accumulator is a comprehensive solution for automated labeling of flat objects, designed for high-volume production lines. This machine features an integrated feeder system to automatically feed products into the labeling area, followed by a vision inspection system that accurately identifies the product's position and orientation. The labeling head then precisely applies labels to the specified location. Finally, an accumulator system collects the labeled products, ensuring a smooth and efficient workflow.
Parameter
- Model: ZS-STB1
- Capacity: 20–30 pieces/min
- Accuracy: ±0.05mm
- Qualified rate: ≥99.5%
- Label specifications:
- Length: 20–180mm
- Width: 22–104mm

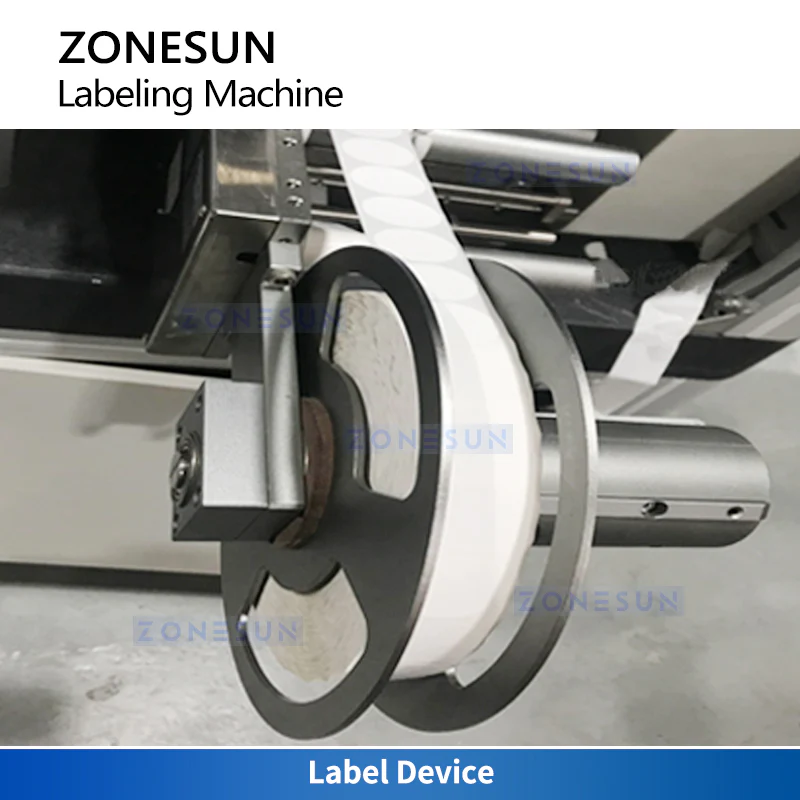

- Label diameter: Max 265mm (76mm reel core)
- Labeling accuracy: ±1mm
- Overall dimensions (L×W×H): 700×700×1700mm
- Overall weight: 350kg
- Power supply: AC100–240V, 5A, 50–60Hz
- Method of pasting labels: Real-time printing of labels
- Print resolution: 203 / 305 / 609dpi
DESCRIPTION
The Visual Inspection Labeling Machine with Feeder and Accumulator is a comprehensive solution for automated labeling of flat objects, designed for high-volume production lines. This machine features an integrated feeder system to automatically feed products into the labeling area, followed by a vision inspection system that accurately identifies the product's position and orientation. The labeling head then precisely applies labels to the specified location. Finally, an accumulator system collects the labeled products, ensuring a smooth and efficient workflow.
Parameter
- Model: ZS-STB1
- Capacity: 20–30 pieces/min
- Accuracy: ±0.05mm
- Qualified rate: ≥99.5%
- Label specifications:
- Length: 20–180mm
- Width: 22–104mm
- Label diameter: Max 265mm (76mm reel core)
- Labeling accuracy: ±1mm
- Overall dimensions (L×W×H): 700×700×1700mm
- Overall weight: 350kg
- Power supply: AC100–240V, 5A, 50–60Hz
- Method of pasting labels: Real-time printing of labels
- Print resolution: 203 / 305 / 609dpi
