DESCRIPTION

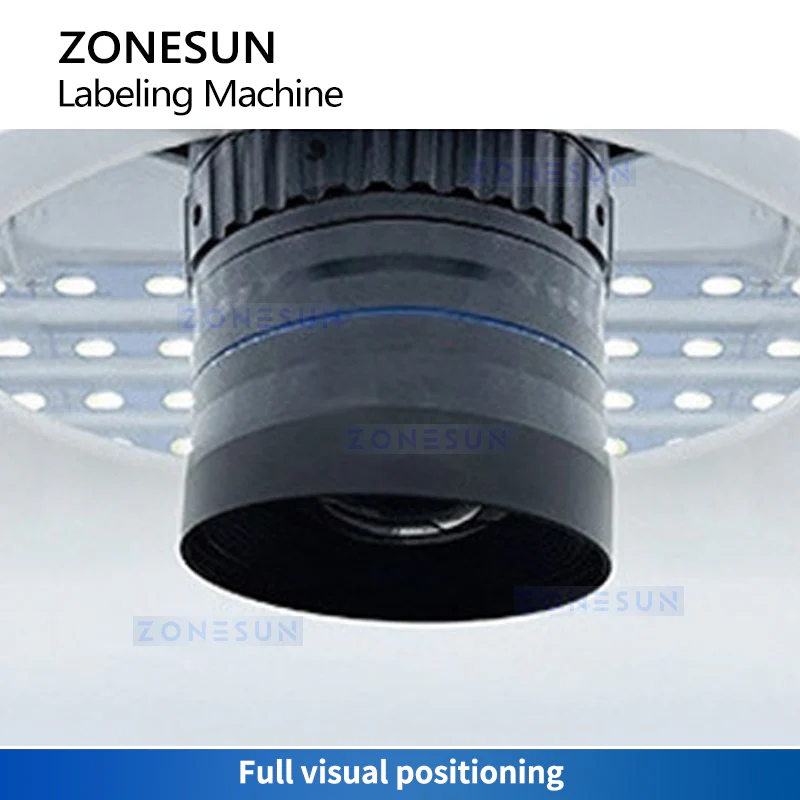

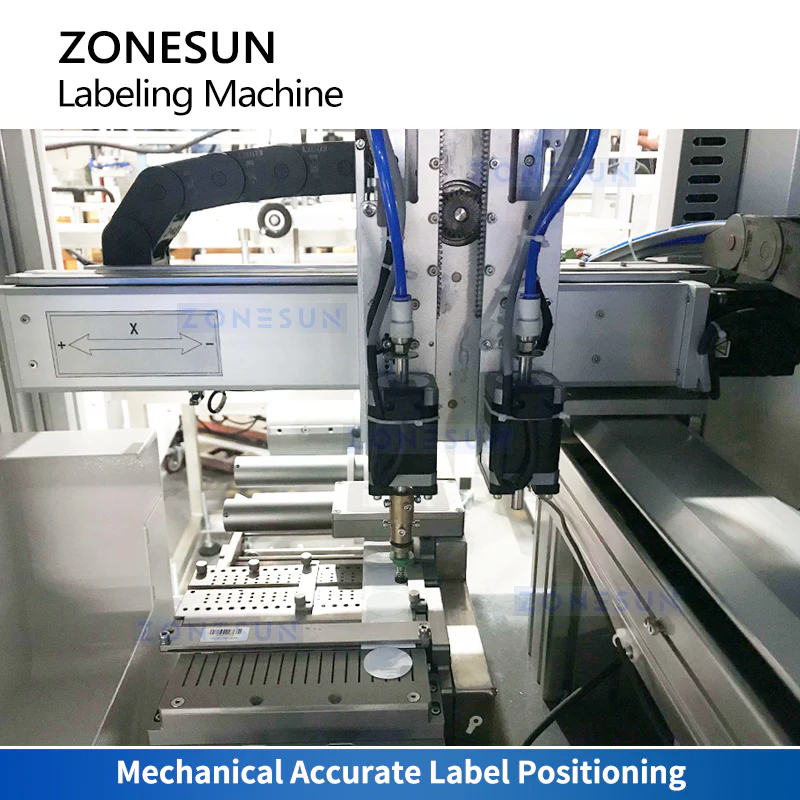

The CCD Vision Inspection Flat Labeling Machine is a compact and versatile labeling solution for automated label placement on flat objects. This machine incorporates a high-resolution CCD vision system that utilizes advanced image processing algorithms to accurately identify the product's position and orientation. This allows the labeling head to precisely apply labels to the specified location, eliminating the need for manual adjustments and significantly improving labeling accuracy and efficiency. The CCD vision system ensures consistent label placement, reducing human error and enhancing product quality. This user-friendly machine is ideal for businesses seeking to automate their labeling process and improve overall production efficiency.

Parameter

• Model: ZS-STB2
• Capacity: 20–30 pieces/min
• Labeling accuracy: ±0.5mm (excluding product error)
• Machine dimensions (L×W×H): Approximately 1500×700×1700mm
• Machine weight: Approximately 350kg
• Applicable product size: Width ≥450mm
• Applicable label size: Width ≥250mm
• Power supply: 220V / 50Hz
• Power consumption: 1200W / AC220V
• Air pressure: 0.4–0.6MPa
