DESCRIPTION

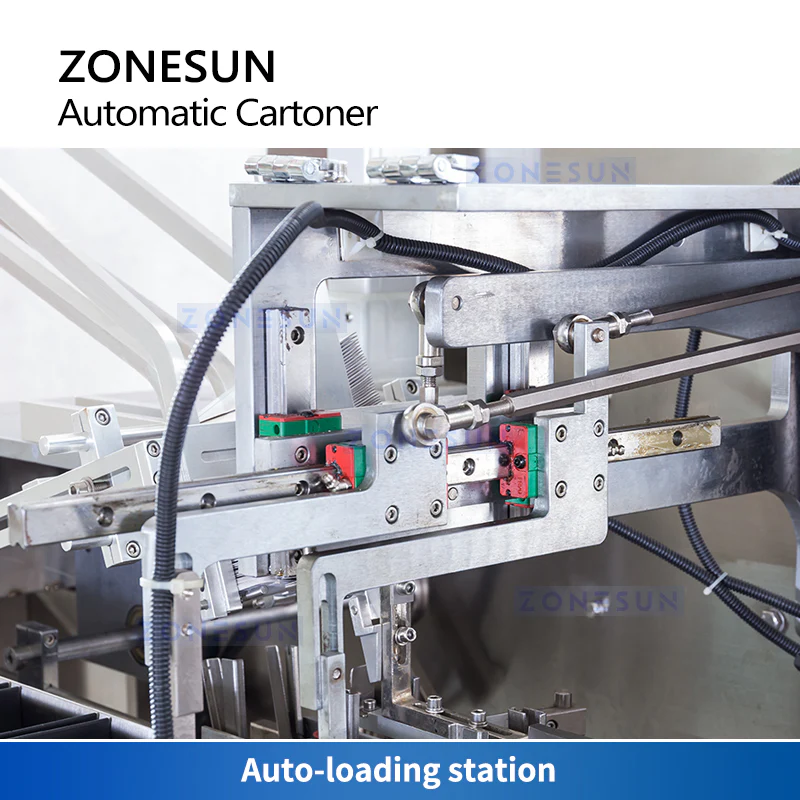

This state-of-the-art Automatic Cartoner is designed to streamline your packaging process with its horizontal, side load conveyor system. It effortlessly handles the automatic erection of cartons, folding them with precision and offering an optional gluing function for added security. With a remarkable capacity of up to 6000 cartons per hour, our Automatic Cartoner ensures efficient and high-speed packaging for your products.

Whatever your packaging needs are, you can rely on ZONESUN.

Type	A	B	C	E	F
Capacity	15-80 boxes/min	15-100 boxes/min	15-100 boxes/min	15-80 boxes/min	15-80 boxes/min
Max boxing size	220×90×60mm	220×90×60mm	220×90×60mm	220×90×60mm	220×90×60mm
Min boxing size	70×20×20mm	70×20×20mm	50×25×15mm	50×25×15mm	50×25×15mm
Air consumption	20m³/h, 0.5–0.7MPa	20m³/h, 0.5–0.7MPa	20m³/h, 0.5–0.7MPa	20m³/h, 0.5–0.7MPa	20m³/h, 0.5–0.7MPa
Power	1.5kW	1.5kW	1.5kW	1.5kW	1.5kW
Power supply	AC380V/220V 50Hz	AC380V/220V 50Hz	AC380V/220V 50Hz	AC380V/220V 50Hz	AC380V/220V 50Hz
Dimension	2600×1350×1650mm	2600×1350×1650mm	2600×1350×1650mm	2600×1350×1650mm	2600×1350×1650mm
Weight	1200kg	1250kg	1300kg	1250kg	1200kg
