ZONESUN ZS-ZHJ50D Automatic Cartoning Machine for Skincare & Chemical Boxes

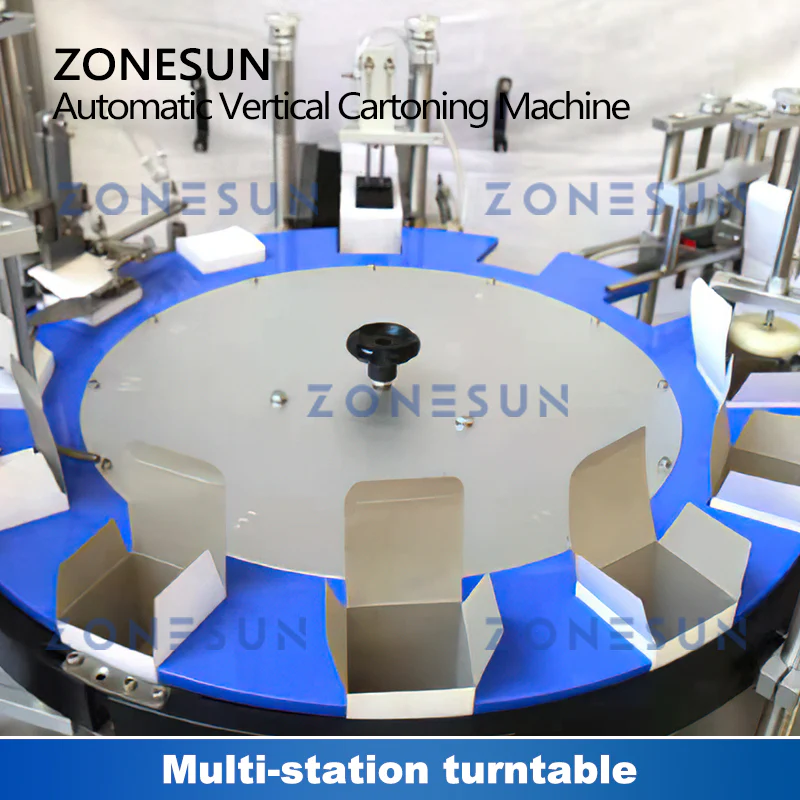

The ZONESUN ZS-ZHJ50D is a fully automatic cartoning machine designed for packaging skincare, daily chemical, and other consumer products. It features an integrated turntable system that performs carton erecting, forming, folding, coding, product insertion, flap tucking, and final sealing—all in one compact unit. With a working speed of 20–50 cartons per minute and customizable carton sizes, this machine offers high efficiency and space-saving design for streamlined production lines.
Technical Specifications
Parameter Specification
Power Supply Single Phase 220V / 50Hz or 60Hz
Motor Power 1.5 kW/h
Air Pressure Requirement 0.5–0.8 MPa
Air Consumption 150 L/min
Working Speed 20–50 cartons per minute
Max Carton Size 200 × 80 × 80 mm (Customizable)
Min Carton Size 60 × 20 × 20 mm (Customizable)
Carton Material Requirement 250–350 g/m³
Machine Size Approx. 41100 × 1500 × 1900 mm
Weight Approx. 450 kg
The ZONESUN ZS-ZHJ50D is a fully automatic cartoning machine designed for packaging skincare, daily chemical, and other consumer products. It features an integrated turntable system that performs carton erecting, forming, folding, coding, product insertion, flap tucking, and final sealing—all in one compact unit. With a working speed of 20–50 cartons per minute and customizable carton sizes, this machine offers high efficiency and space-saving design for streamlined production lines.
Technical Specifications
Parameter Specification
Power Supply Single Phase 220V / 50Hz or 60Hz
Motor Power 1.5 kW/h
Air Pressure Requirement 0.5–0.8 MPa
Air Consumption 150 L/min
Working Speed 20–50 cartons per minute
Max Carton Size 200 × 80 × 80 mm (Customizable)
Min Carton Size 60 × 20 × 20 mm (Customizable)
Carton Material Requirement 250–350 g/m³
Machine Size Approx. 41100 × 1500 × 1900 mm
Weight Approx. 450 kg
Original: $15,200.00
-70%$15,200.00
$4,560.00Description
The ZONESUN ZS-ZHJ50D is a fully automatic cartoning machine designed for packaging skincare, daily chemical, and other consumer products. It features an integrated turntable system that performs carton erecting, forming, folding, coding, product insertion, flap tucking, and final sealing—all in one compact unit. With a working speed of 20–50 cartons per minute and customizable carton sizes, this machine offers high efficiency and space-saving design for streamlined production lines.
Technical Specifications
Parameter Specification
Power Supply Single Phase 220V / 50Hz or 60Hz
Motor Power 1.5 kW/h
Air Pressure Requirement 0.5–0.8 MPa
Air Consumption 150 L/min
Working Speed 20–50 cartons per minute
Max Carton Size 200 × 80 × 80 mm (Customizable)
Min Carton Size 60 × 20 × 20 mm (Customizable)
Carton Material Requirement 250–350 g/m³
Machine Size Approx. 41100 × 1500 × 1900 mm
Weight Approx. 450 kg
