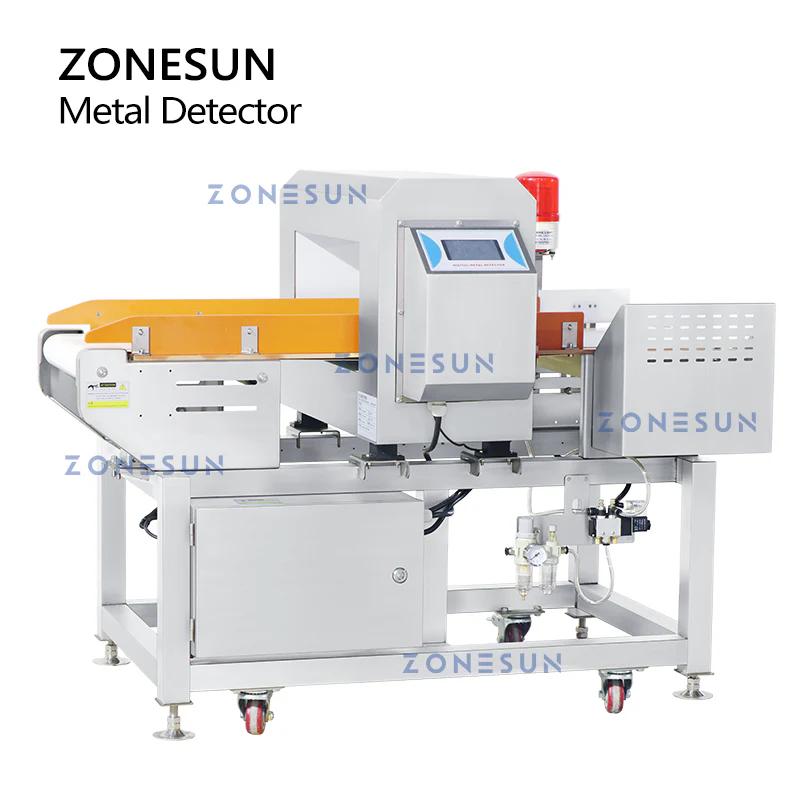

ZONESUN ZS-MD1 Conveyor Belt Metal Detector for Production Lines
The ZS-MD1 metal detector is designed to detect and reject metal contaminants during production. Ideal for food, cosmetics, and chemical industries, it identifies both magnetic and non-magnetic metals—even those sealed inside products. By integrating with automatic rejection systems, it protects downstream equipment, ensures product quality, and minimizes costly downtime. A smart investment for any high-integrity production line.
Parameter Details
Model ZS-MD1
Voltage 220V, 50–60Hz
Power 90W
Conveyor Width 400 mm (customizable)
Maximum Load 15 kg
Detection Height 200 mm (customizable)
Applicable Metals • Ferrous: ≥φ1.2 mm <br> • Non-ferrous: ≥φ1.8 mm <br> • Stainless steel: ≥φ2.3 mm
Detection Speed 25–30 m/min
Machine Weight Approx. 220 kg
Machine Dimensions Approx. 133 × 72 × 100 cm
The ZS-MD1 metal detector is designed to detect and reject metal contaminants during production. Ideal for food, cosmetics, and chemical industries, it identifies both magnetic and non-magnetic metals—even those sealed inside products. By integrating with automatic rejection systems, it protects downstream equipment, ensures product quality, and minimizes costly downtime. A smart investment for any high-integrity production line.
Parameter Details
Model ZS-MD1
Voltage 220V, 50–60Hz
Power 90W
Conveyor Width 400 mm (customizable)
Maximum Load 15 kg
Detection Height 200 mm (customizable)
Applicable Metals • Ferrous: ≥φ1.2 mm <br> • Non-ferrous: ≥φ1.8 mm <br> • Stainless steel: ≥φ2.3 mm
Detection Speed 25–30 m/min
Machine Weight Approx. 220 kg
Machine Dimensions Approx. 133 × 72 × 100 cm
Original: $3,700.00
-70%$3,700.00
$1,110.00Description
The ZS-MD1 metal detector is designed to detect and reject metal contaminants during production. Ideal for food, cosmetics, and chemical industries, it identifies both magnetic and non-magnetic metals—even those sealed inside products. By integrating with automatic rejection systems, it protects downstream equipment, ensures product quality, and minimizes costly downtime. A smart investment for any high-integrity production line.
Parameter Details
Model ZS-MD1
Voltage 220V, 50–60Hz
Power 90W
Conveyor Width 400 mm (customizable)
Maximum Load 15 kg
Detection Height 200 mm (customizable)
Applicable Metals • Ferrous: ≥φ1.2 mm <br> • Non-ferrous: ≥φ1.8 mm <br> • Stainless steel: ≥φ2.3 mm
Detection Speed 25–30 m/min
Machine Weight Approx. 220 kg
Machine Dimensions Approx. 133 × 72 × 100 cm
