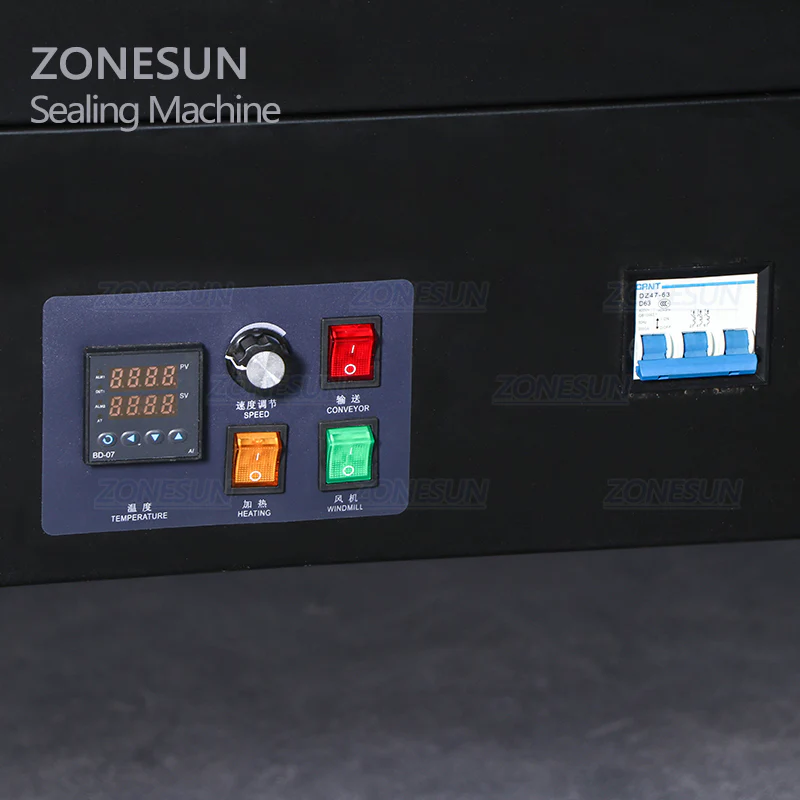

The ZONESUN ZS-BS Series Automatic Heat Shrinking Machines utilize infrared radiation for direct heating of PVC and POF shrink films, delivering flawless packaging without damaging the product. Equipped with electronic variable speed control and a solid-state temperature regulator, these machines offer reliable performance across food, beverage, cosmetics, hardware, and daily chemical industries. Available in multiple oven sizes and power levels, they support up to 10kg transport load and operate at speeds up to 10 m/min. Ideal for shrink wrapping boxes, bottles, and retail goods with consistent finish and efficiency.

Parameter

Model	ZS-BS4525 type	ZS-BS4535 type	ZS-BS6535 type
Voltage	380V 50/60Hz
Power	7kw	9kw	12kw
Size of shrink oven	900*450*250mm	1200*450*350mm	1200*650*350mm
Conveying speed	0-10 m/min
Transport load	10kg
Applicable shrink film	POF PVC
Dimensions	1200*650*830mm	1600*650*830mm	1600*850*830mm
Package weight	About 75kg	About 75kg	——

Temperature and time control

PVC  0.02-0.06MM  5-10S  110-130(Temperature)

POF  0.03-0.10MM  8-16S  130-170(Temperature)
