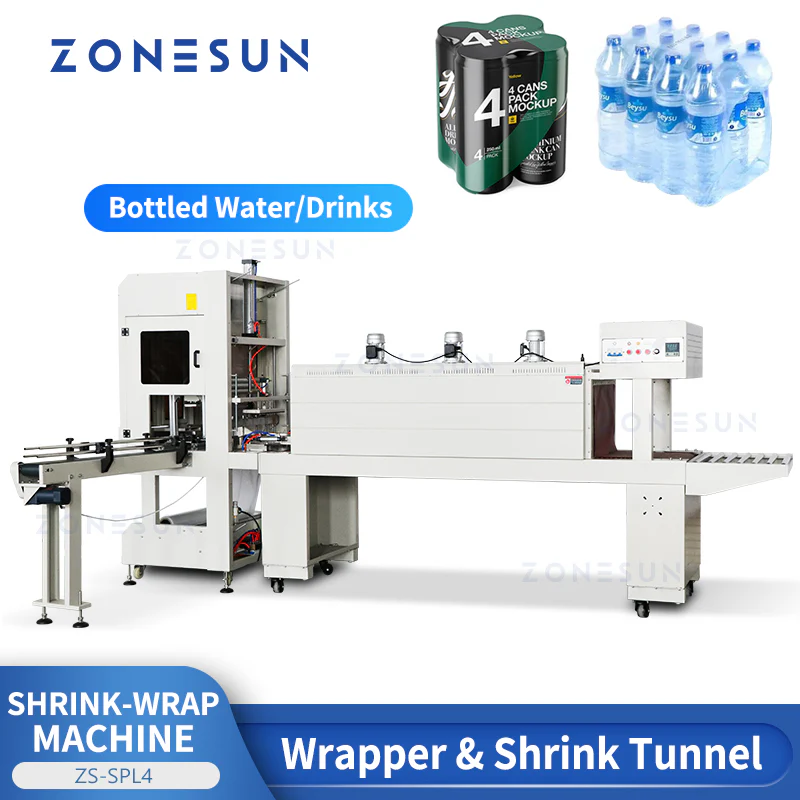

The ZONESUN ZS-SPL4 Automatic Bottles Wrapping and Shrinking Packaging Machine is a complete solution for high-efficiency beverage packaging. Designed to wrap and seal shrink film around bottled water, soft drinks, or similar products, it integrates seamlessly with fillers, cap sealers, and label applicators to form a fully automated production line. The ZS-QZD7040S handles precise film wrapping using PE shrink film, while the ZS-BSPN6040 shrink tunnel ensures a tight, professional finish with adjustable speed and multi-film compatibility. Built for industrial performance, this system delivers speed, consistency, and reliability.

ZS-QZD7040S PE Film Wrapping Machine

• Model：ZS-QZD7040S

• Voltage：220V, 50–60Hz

• Power Consumption：2 kW

• Packing Speed：0–6 packs per minute

• Bottle Size Range Diameter: 60–120 mm

• Height: 100–330 mm

• Max Package Size：400 × 120 × 330 mm

• Min Package Size：240 × 120 × 100 mm

• Payload Capacity：Up to 20 kg

• Film Roll Width：Max 560 mm

• Film Thickness：0.03–0.25 mm

• Applicable Film Type：PE shrink film only

• Machine Dimensions Approx.：2150 × 1200 × 2020 mm

• Machine Weight Approx.：350 kg

ZS-BSPN6040 Shrink Tunnel Machine

• Model：ZS-BSPN6040

• Voltage：380V, 50–60Hz

• Power Consumption：21 kW

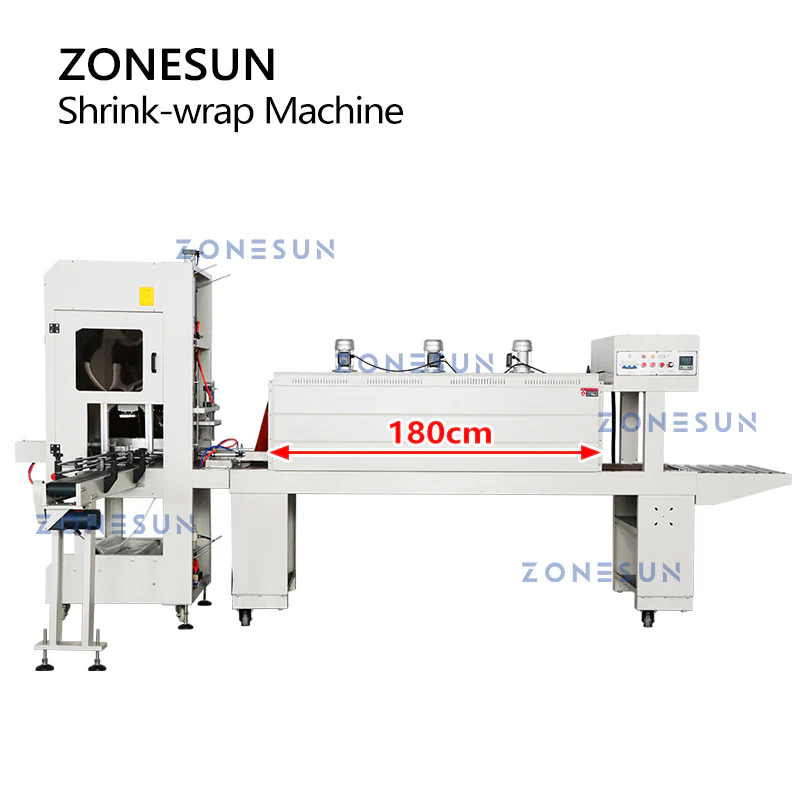

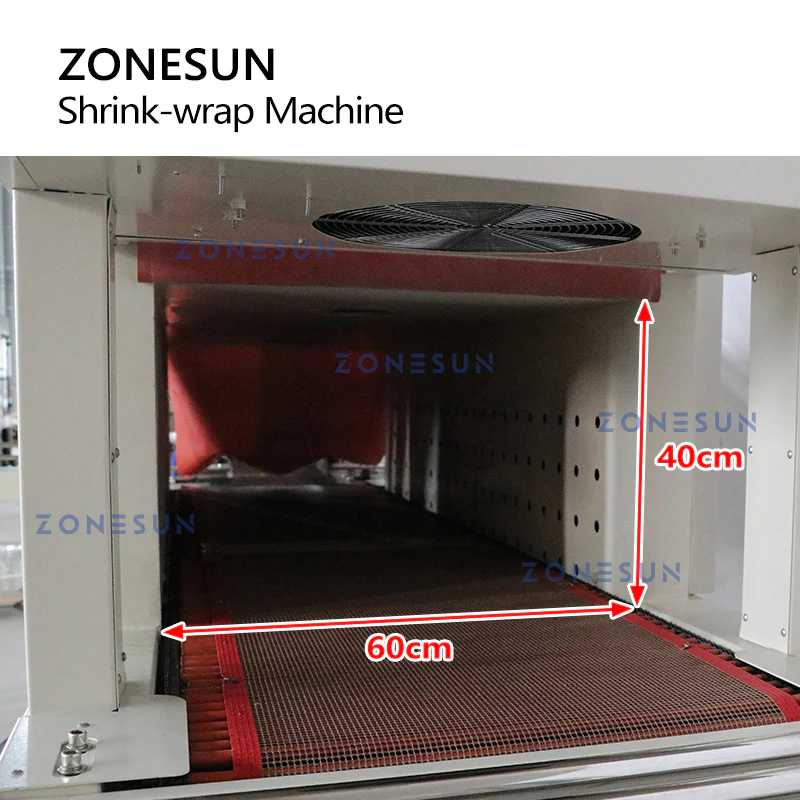

• Tunnel Dimensions：Approx. 1800 × 600 × 400 mm

• Conveying Speed：0–15 meters per minute

• Payload Capacity：Less than 35 kg

• Applicable Shrink Film：PVC / POF / PE

• Machine Dimensions Approx.：1800 × 850 × 1520 mm

• Machine Weight Approx.：207 kg

• Package Dimensions：Approx. 2880 × 930 × 1500 mm

• Package Weight Approx.：350 kg
