ZONESUN ZS-SPL6 Automatic Heat Shrink Tunnel Shrinking Wrapping Machine
DESCRIPTION
This automatic shrink wrap machine combines a side sealing system and heat shrink tunnel into one efficient unit. It automatically feeds POF, PE, or PVC shrink film, performs precise side sealing, and delivers a clean, tight package through the shrink tunnel. Ideal for packaging boxes, books, and electronics, this shrink packaging machine boosts productivity and ensures professional packaging results.
PARAMETER - ZS-BF750
- Model: ZS-BF750
- Power supply voltage: 220V 50-60Hz
- Air pressure: 0.5Mpa
- Power: 2.26Kw
- Packaging speed: 15–30 bag/min
- Cutter Size: 870mm × 770
- Maximum Package Size: W+H ≤ 700mm, L+H ≤ 800mm, H ≤ 150mm
- Conveyor Belt Width: 600mm
- Applicable shrink film: POF/PE
- Film shrinkage ratio: 60%
- Table height: 780mm (adjustable)
- Overall dimensions (L × W × H): 2350 × 1350 × 1630mm
- Machine weight: 440kg
- Conveyor Loading Weight: 15–20kg
PARAMETER - ZS-7540
- Model: ZS-7540
- Voltage: 380V 50/60Hz
- Power: 22KW
- Carrying capacity: 40kg max
- Furnace Road Size (mm): 1800 × 750 × 400mm
- Outline dimension (mm): 2100 × 1010 × 1470mm
- Transporting velocity: 0–15m/min
- Applicable shrink film: POF, PVC
Control panel
The simple control panel allows precise adjustment of various parameters. Easily monitor the packaging process, improve efficiency and reduce operating errors.

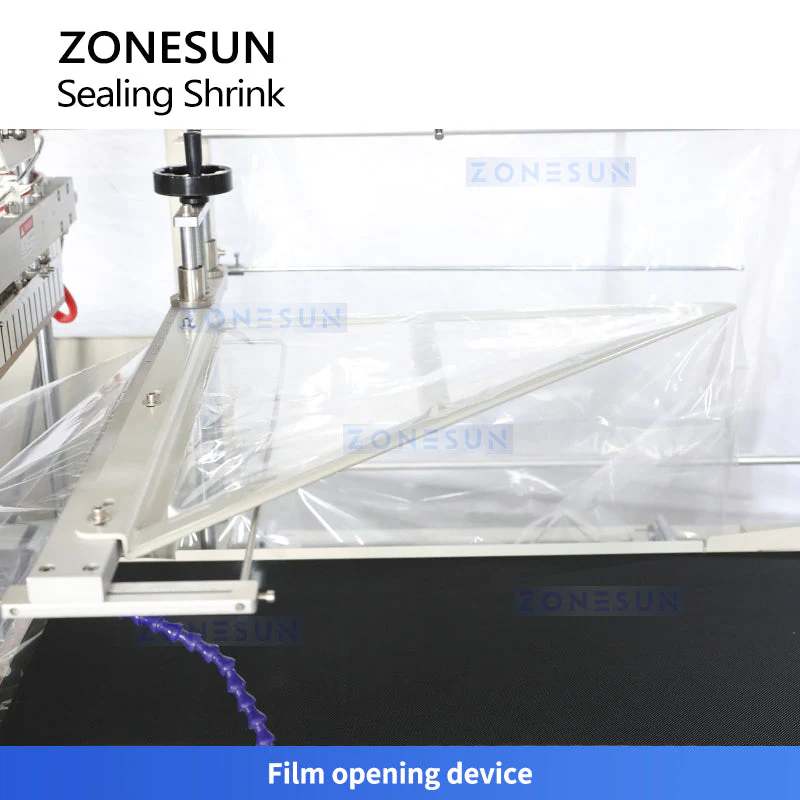

Film opening device
Automatically opens the shrink film for product insertion, improving packaging efficiency and reducing manual operations.

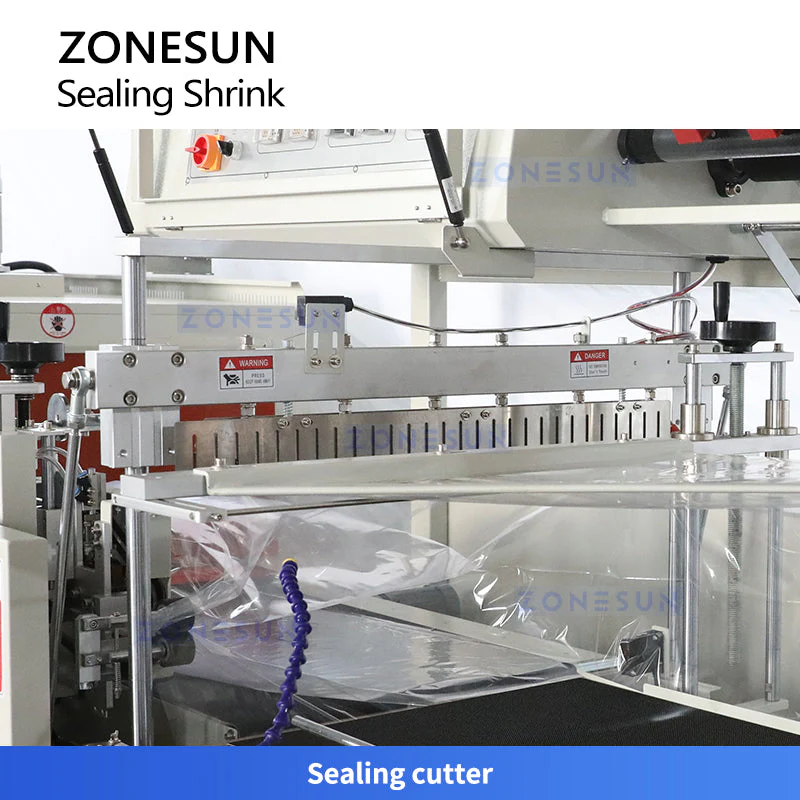

Sealing cutter
The high-precision heated blade ensures clean, firm and accurate cutting, achieving tight and neat sealing every time.

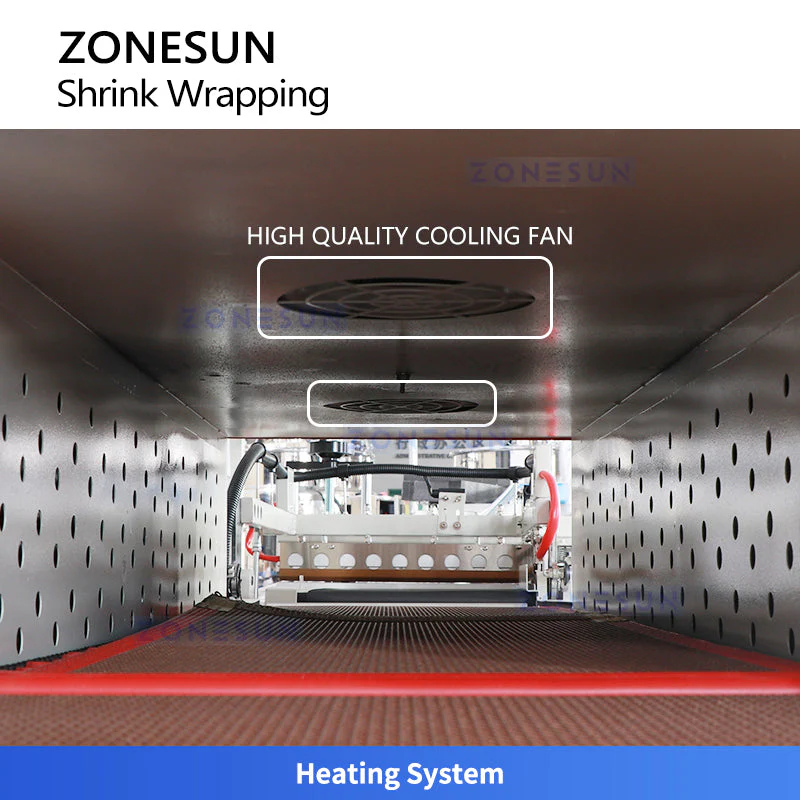

Heat System
High power fan
The fan creates a continuous circulation of hot air in the shrink tunnel, ensuring that the shrink film is heated evenly.
