ZONESUN ZS-CQ2 Gas filling machine For Aerosol Can
DESCRIPTION

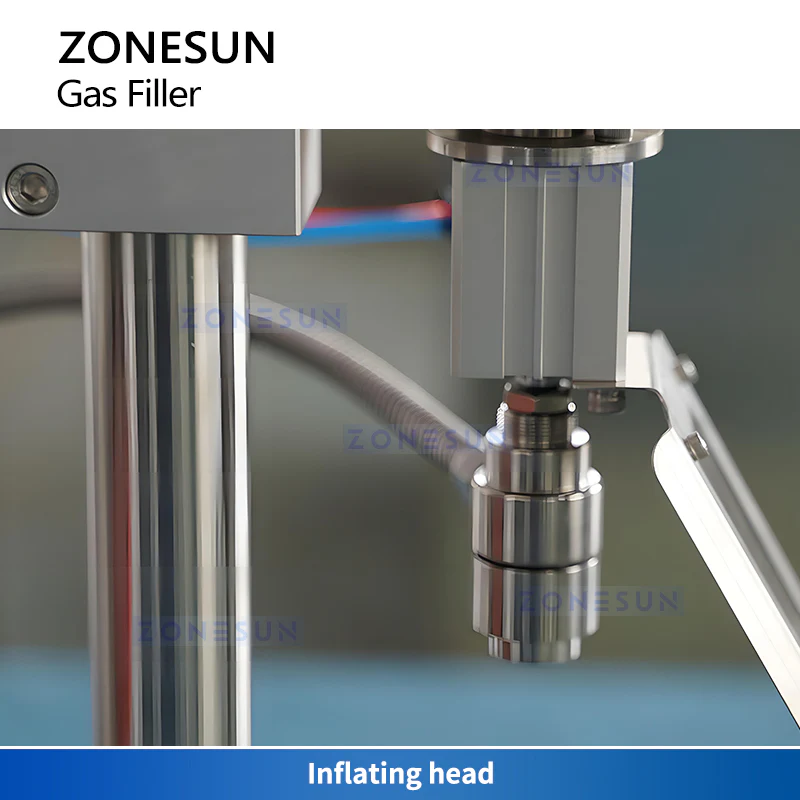

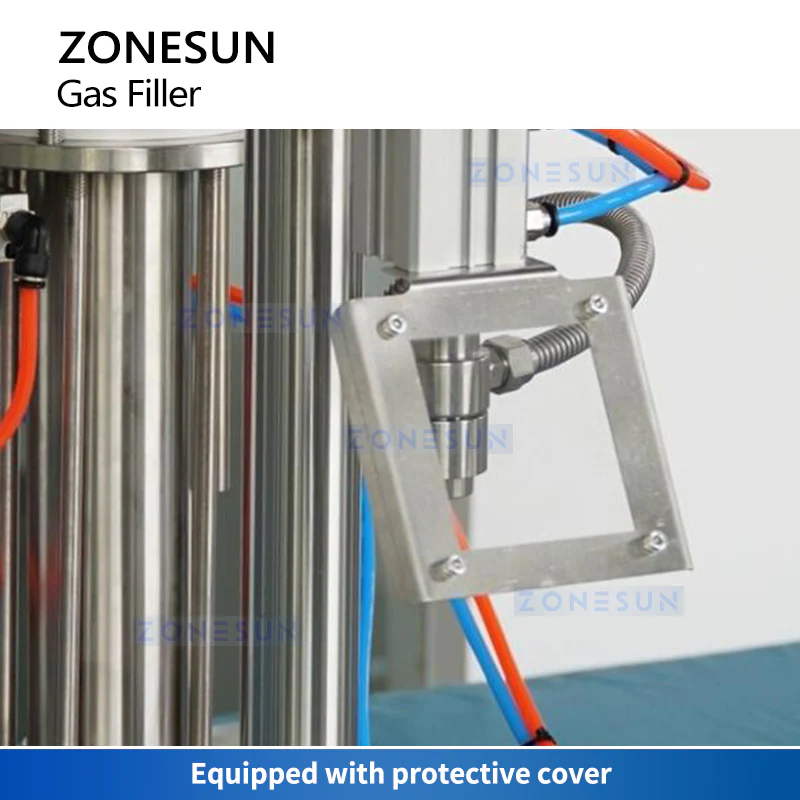

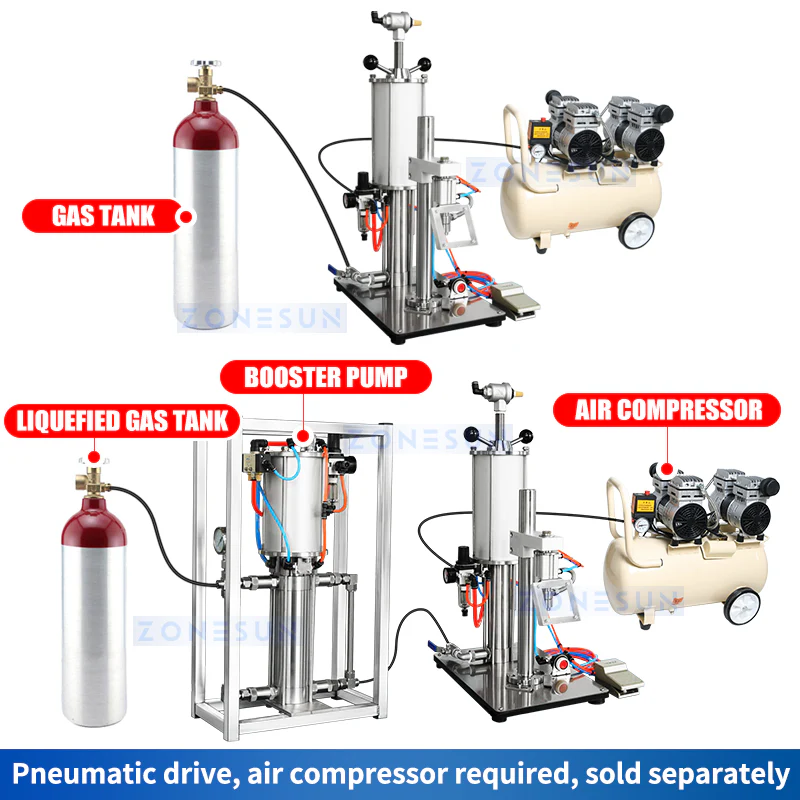

This professional desktop gas filling machine is designed for efficient and precise filling of aerosol cans with various propellants, including fluorocarbon propane-butane gas, dimethyl ether, carbon dioxide, nitrogen, oxygen, compressed air, and 134A. It requires an air compressor and gas tank for operation and features a convenient pneumatic foot pedal for effortless activation. The filling volume can be adjusted using the rotating handle on top, with corresponding reference **scale** values for accuracy. Additionally, the machine is equipped with an emergency stop button for safety. A protective cover is installed in front of the filling head to prevent accidental gas spills. For filling with liquefied gas, an additional booster pump is required (sold separately).
Parameter
- Model: ZS-CQ2
- Filling capacity: 30-500ml
- Filling accuracy: ≤±1%
- Production capacity: 1200-1500 cans/hour
- Applicable valve: 1 inch (25.4 mm)
- Working pressure: 0.5-1.0MPa
- Maximum air consumption: 0.5m³/min
- Product size: 50*30*75cm
- Weight: 55kg
