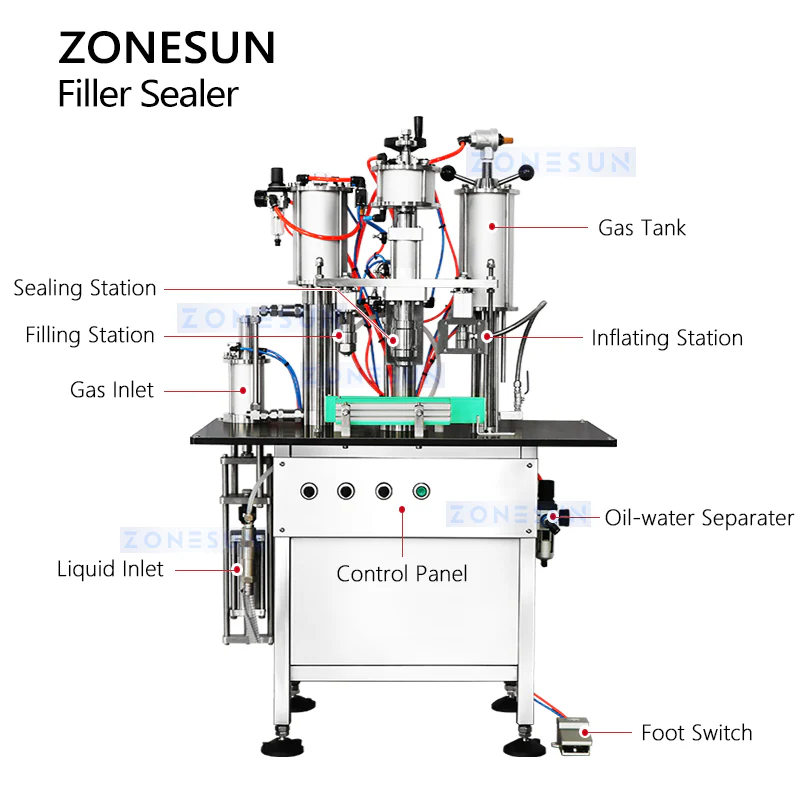

ZONESUN ZS‑QW254 Precision Aerosol Filling & Sealing Machine

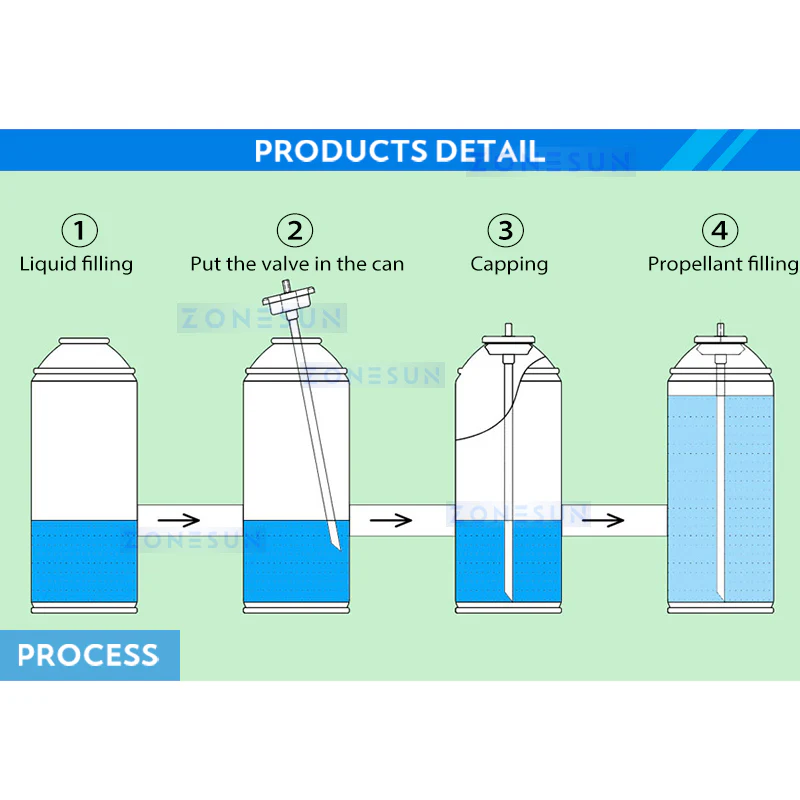

The ZONESUN ZS‑QW254 is a precision aerosol filling and sealing machine engineered for efficient, high‑volume production. Designed to handle both liquid and propellant filling, as well as mounting cup pressing, each function can be operated independently for process flexibility. Compatible with 1‑inch (25.4 mm) valves and a wide range of aerosol can sizes, it delivers exceptional accuracy (±1%) at speeds of up to 1200 bottles per hour. Built for industries including pharmaceuticals, hygiene, automotive, environmental protection, fire safety, and daily chemical products, the ZS‑QW254 combines durability, versatility, and consistent performance in a compact, industrial‑grade design.
ZS‑QW254 — Specifications
Parameter Details
Model ZS‑QW254
Applicable Valve Size 1 inch (25.4 mm)
Liquid Filling Range 50-450ml
Liquid Inlet Connector Ø6 mm
Propellant Filling Range 50-450 ml
Propellant Inlet Connector M22 × 1.5, anti‑threads
Filling Accuracy ±1%
Applicable Aerosol Can Height 70 – 330 mm
Applicable Aerosol Can Diameter Ø35 – Ø65 mm
Air Supply Pressure 0.5 – 1.0 MPa
Maximum Air Consumption 1 m³/min
Throughput ≤ 1200 bottles/hour (based on liquid and volume)
Packing Size Approx. 1220 × 590 × 1550 mm
Package Weight Approx. 180 kg
The ZONESUN ZS‑QW254 is a precision aerosol filling and sealing machine engineered for efficient, high‑volume production. Designed to handle both liquid and propellant filling, as well as mounting cup pressing, each function can be operated independently for process flexibility. Compatible with 1‑inch (25.4 mm) valves and a wide range of aerosol can sizes, it delivers exceptional accuracy (±1%) at speeds of up to 1200 bottles per hour. Built for industries including pharmaceuticals, hygiene, automotive, environmental protection, fire safety, and daily chemical products, the ZS‑QW254 combines durability, versatility, and consistent performance in a compact, industrial‑grade design.
ZS‑QW254 — Specifications
Parameter Details
Model ZS‑QW254
Applicable Valve Size 1 inch (25.4 mm)
Liquid Filling Range 50-450ml
Liquid Inlet Connector Ø6 mm
Propellant Filling Range 50-450 ml
Propellant Inlet Connector M22 × 1.5, anti‑threads
Filling Accuracy ±1%
Applicable Aerosol Can Height 70 – 330 mm
Applicable Aerosol Can Diameter Ø35 – Ø65 mm
Air Supply Pressure 0.5 – 1.0 MPa
Maximum Air Consumption 1 m³/min
Throughput ≤ 1200 bottles/hour (based on liquid and volume)
Packing Size Approx. 1220 × 590 × 1550 mm
Package Weight Approx. 180 kg
Original: $6,299.00
-70%$6,299.00
$1,889.70Description
The ZONESUN ZS‑QW254 is a precision aerosol filling and sealing machine engineered for efficient, high‑volume production. Designed to handle both liquid and propellant filling, as well as mounting cup pressing, each function can be operated independently for process flexibility. Compatible with 1‑inch (25.4 mm) valves and a wide range of aerosol can sizes, it delivers exceptional accuracy (±1%) at speeds of up to 1200 bottles per hour. Built for industries including pharmaceuticals, hygiene, automotive, environmental protection, fire safety, and daily chemical products, the ZS‑QW254 combines durability, versatility, and consistent performance in a compact, industrial‑grade design.
ZS‑QW254 — Specifications
Parameter Details
Model ZS‑QW254
Applicable Valve Size 1 inch (25.4 mm)
Liquid Filling Range 50-450ml
Liquid Inlet Connector Ø6 mm
Propellant Filling Range 50-450 ml
Propellant Inlet Connector M22 × 1.5, anti‑threads
Filling Accuracy ±1%
Applicable Aerosol Can Height 70 – 330 mm
Applicable Aerosol Can Diameter Ø35 – Ø65 mm
Air Supply Pressure 0.5 – 1.0 MPa
Maximum Air Consumption 1 m³/min
Throughput ≤ 1200 bottles/hour (based on liquid and volume)
Packing Size Approx. 1220 × 590 × 1550 mm
Package Weight Approx. 180 kg
