ZONESUN ZS-QW1600L Aerosol Canning Monoblock Filling Sealing Machine
DESCRIPTION

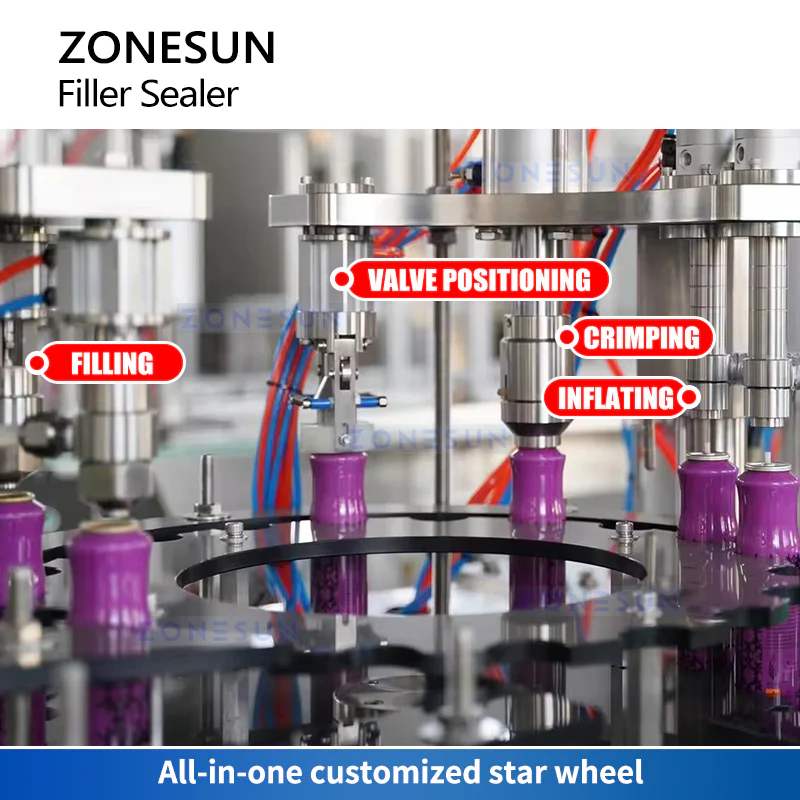

Introducing our state-of-the-art aerosol packaging machine designed for efficient and high-speed liquid filling. This dual-head machine is equipped with advanced features to streamline your packaging process. With its dual-stage liquid filling capability, it ensures faster filling speeds, ranging from 10ml to 500ml. The manual cap placement is followed by precise cap alignment and crimping stations. Furthermore, the machine incorporates a dual-head inflation system, allowing for accurate and controlled filling of 10ml to 500ml of gas, seamlessly connected to pre-prepared gas canisters.
Parameter
- Model: ZS-QW1600L
- Voltage: 110V/220V
- Liquid filling range: 2 heads, 10-250ml for each
- Gas filling range: 2 heads, 10-250ml for each
- Capacity: 30-40 cans/min
- Filling accuracy: <= ±1%
- Applicable valve: 1 inch (25.4mm)
- Crimping diameter: 26.9-27.3mm, ±1mm
- Crimping depth: 4.6-5.3mm, ±1mm
- Applicable can diameter: 35-65mm
- Applicable can height: 70-330mm
- Max. compressed air consumption: 3m³/min
- Compressed air working pressure: 0.6-0.7MPa
