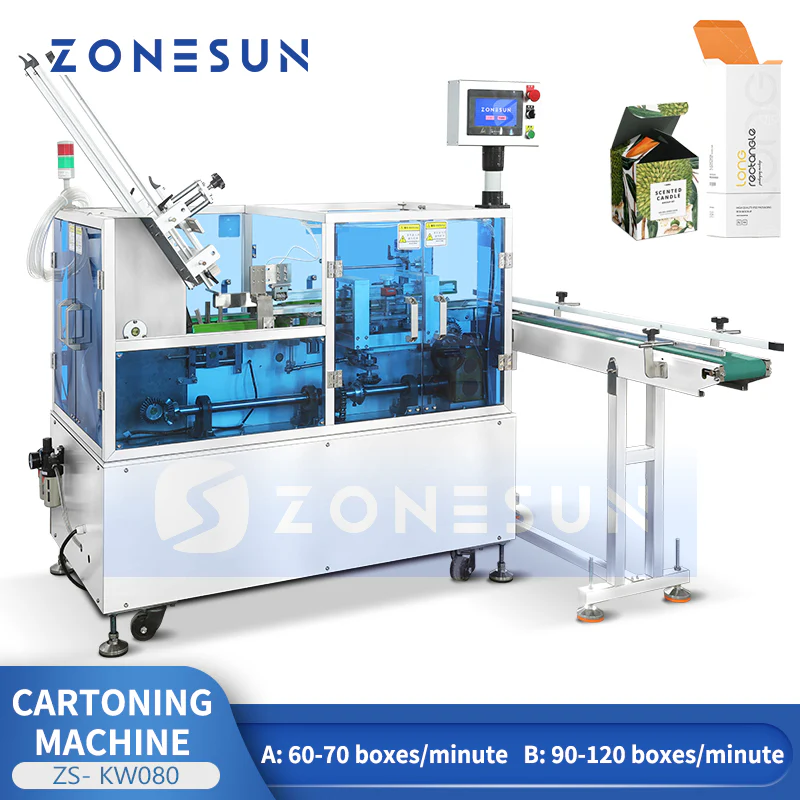

ZONESUN ZS-KW080 Top-Loading Cartoner for Cosmetics, Pharma & Small Goods Boxes

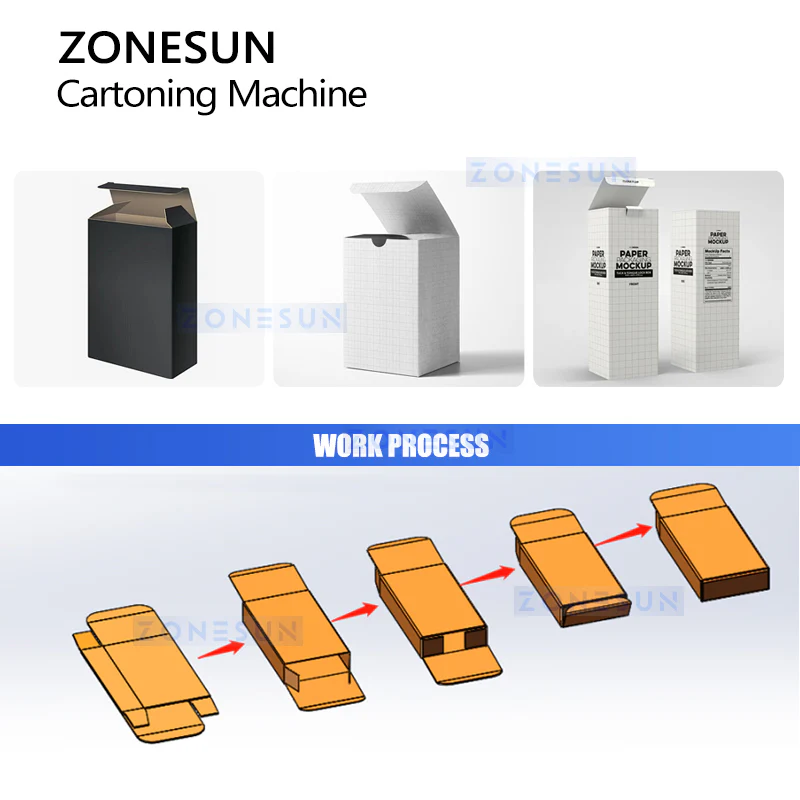

The ZONESUN ZS-KW080 Top-Loading Cartoner is designed for efficient box folding and product loading in automated packaging lines. It pre-folds one side of the carton bottom while leaving the other side open, allowing easy top-loading of items and seamless integration with downstream processes. With dual carton size modes (A and B) and adjustable speed up to 120 boxes per minute, it supports a wide range of applications including cosmetics, pharmaceuticals, electronics, and small consumer goods. Built for precision and speed, it ensures consistent folding quality with optimal paper and indentation standards.
Parameter
- Model: ZS-KW080
- Carton size range:
- A: Length 80–200mm × Width 80–160mm × Height 15–50mm
- B: Length 80–200mm × Width 25–80mm × Height 15–50mm
- (can be customized for non-standard products)
- Paper requirements:
- 300g/m² ≤ Most suitable: 350–450g/m²
- Carton requirements:
- Indentation ≥0.4mm with pre-folding effect
- Production capacity:
- A: 60–70 boxes/min
- B: 90–120 boxes/min
- Total power: 1.5kW
- Machine size (L×W×H): About 1550×1000×1400mm
- Machine weight: About 0.6 tons
