ZONESUN ZS-GTJH1 Pneumatic Paste Filling Machine with Mixer and Heater

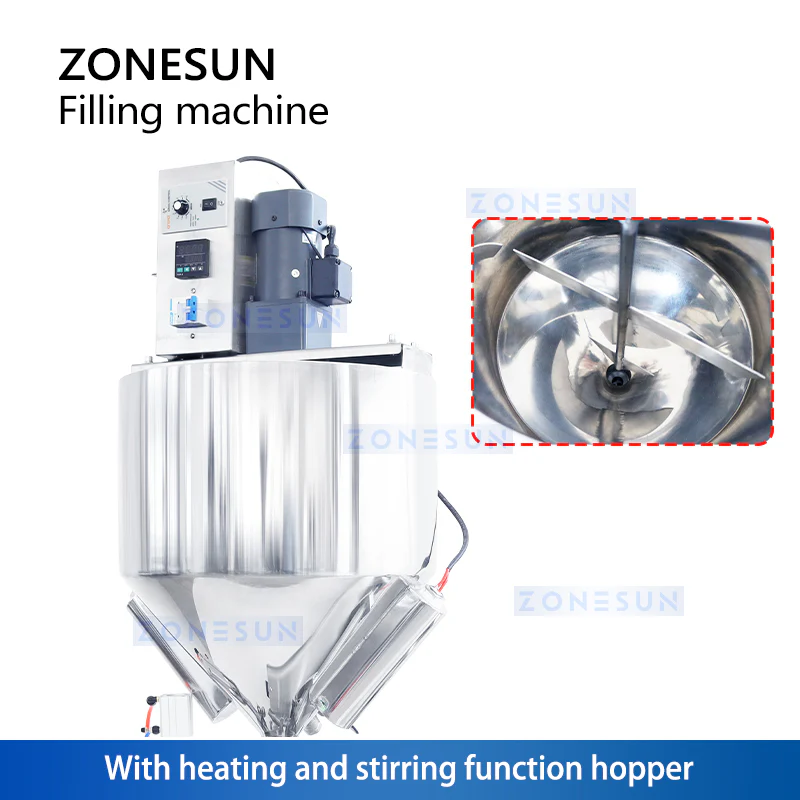

The ZONESUN ZS-GTJH1 is a high-performance pneumatic paste filling machine designed for thick, temperature-sensitive products like chocolate, sauces, creams, and more. Equipped with a mixer and heating system, it maintains consistent temperature and texture during filling. Its rugged rotary valve and food-grade stainless steel components (SS304/316) ensure hygiene and durability. The machine features adjustable piston feed speed, a no-drip system, and quick-connect pneumatic fittings for easy operation and maintenance. Ideal for semi-automatic production in food, cosmetics, and chemical industries, it supports customizable filling volumes from 10ml to 5000ml.
Item Specification
Machine Model ZS-GTJH1
Voltage 220V / 110V, 50–60Hz
Power 10W
Filling Range 10–100 / 10–200 / 30–300 / 50–500 / 100–1000 / 500–2500 / 1000–5000ml (Customizable)
Filling Speed Approx. 20–40 bottles/min
Filling Accuracy ≤ ±0.5%
Air Pressure 0.4–0.6MPa
Compressor Connector Size OD 8mm
Air Consumption ≥ 0.1m³/min
Quick Setup Instruction Video
The ZONESUN ZS-GTJH1 is a high-performance pneumatic paste filling machine designed for thick, temperature-sensitive products like chocolate, sauces, creams, and more. Equipped with a mixer and heating system, it maintains consistent temperature and texture during filling. Its rugged rotary valve and food-grade stainless steel components (SS304/316) ensure hygiene and durability. The machine features adjustable piston feed speed, a no-drip system, and quick-connect pneumatic fittings for easy operation and maintenance. Ideal for semi-automatic production in food, cosmetics, and chemical industries, it supports customizable filling volumes from 10ml to 5000ml.
Item Specification
Machine Model ZS-GTJH1
Voltage 220V / 110V, 50–60Hz
Power 10W
Filling Range 10–100 / 10–200 / 30–300 / 50–500 / 100–1000 / 500–2500 / 1000–5000ml (Customizable)
Filling Speed Approx. 20–40 bottles/min
Filling Accuracy ≤ ±0.5%
Air Pressure 0.4–0.6MPa
Compressor Connector Size OD 8mm
Air Consumption ≥ 0.1m³/min
Quick Setup Instruction Video
Original: $500.00
-70%$500.00
$150.00Description
The ZONESUN ZS-GTJH1 is a high-performance pneumatic paste filling machine designed for thick, temperature-sensitive products like chocolate, sauces, creams, and more. Equipped with a mixer and heating system, it maintains consistent temperature and texture during filling. Its rugged rotary valve and food-grade stainless steel components (SS304/316) ensure hygiene and durability. The machine features adjustable piston feed speed, a no-drip system, and quick-connect pneumatic fittings for easy operation and maintenance. Ideal for semi-automatic production in food, cosmetics, and chemical industries, it supports customizable filling volumes from 10ml to 5000ml.
Item Specification
Machine Model ZS-GTJH1
Voltage 220V / 110V, 50–60Hz
Power 10W
Filling Range 10–100 / 10–200 / 30–300 / 50–500 / 100–1000 / 500–2500 / 1000–5000ml (Customizable)
Filling Speed Approx. 20–40 bottles/min
Filling Accuracy ≤ ±0.5%
Air Pressure 0.4–0.6MPa
Compressor Connector Size OD 8mm
Air Consumption ≥ 0.1m³/min
