ZONESUN ZS-S100 Automatic Paste Filling Sealing Machine With Date Printer
DESCRIPTION
This is a filling and sealing machine for paste packaging. The sealing pattern can be customized in 3 ways, including the back sealing, three-side sealing, and four-side sealing. Equipped with a photoelectric eye and PLC controls, it can automatically control the process, including feeding, printing, filling, and sealing.
PARAMETER
|
Model |
ZS-S100 |
ZS-S200 |
ZS-S300 |
|
Bag length |
50-150mm |
50-250mm |
50-300mm |
|
Bag width |
25-120mm |
25-120mm |
70-190mm |
|
Film width |
50-240mm |
50-240mm |
140-380mm |
|
Bag volume |
5-100ml |
50-300ml |
100-1000ml |
|
Packing speed |
30-50 bags/min |
25-40 bags/min |
23-30 bags/min |
|
Power supply |
220V/AC 50Hz 1.5Kw |
220V/AC 50Hz 1.6Kw |
220V/AC 50Hz 1.8Kw |
|
Air requirements |
0.8Mpa, 150L/min |
0.8Mpa, 180L/min |
0.8Mpa, 250L/min |
|
Machine size |
760*1380*1700mm |
760*1380*1700mm |
900*1800*2040mm |
|
Machine weight |
300kg |
300kg |
500kg |
NOTICE
This machine can choose back seal, three side seal and four side seal. Please contact us for confirmation.
PRODUCT DETAILS
CONTROL PANEL
It is easy to operate with a touch screen control panel. It is available in English.

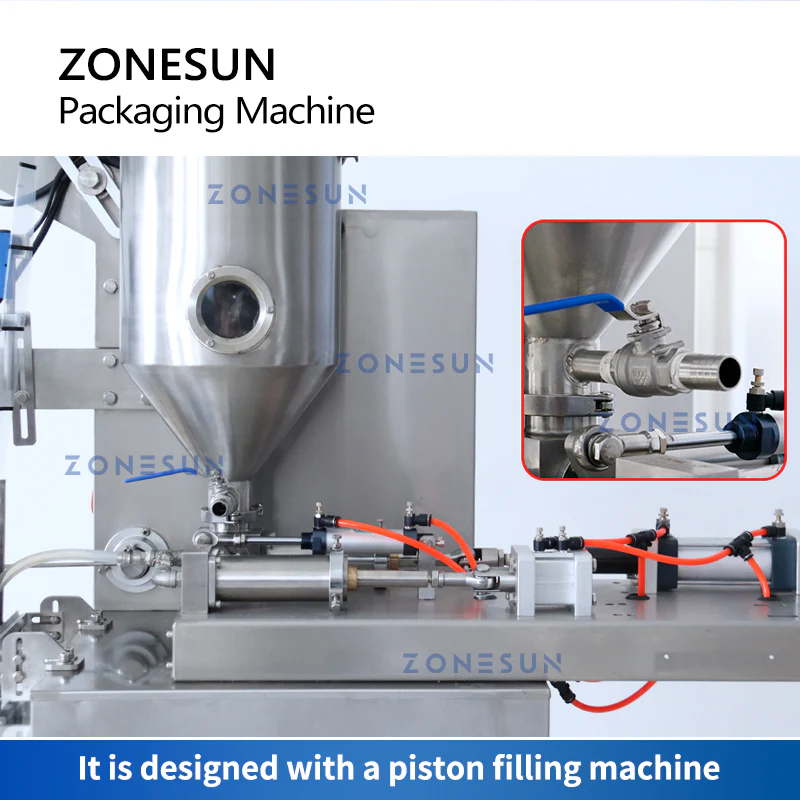

FILLER
It is designed with a piston-filling machine with a large hopper. There is a window on the hopper, which is easy to see the remaining material inside.

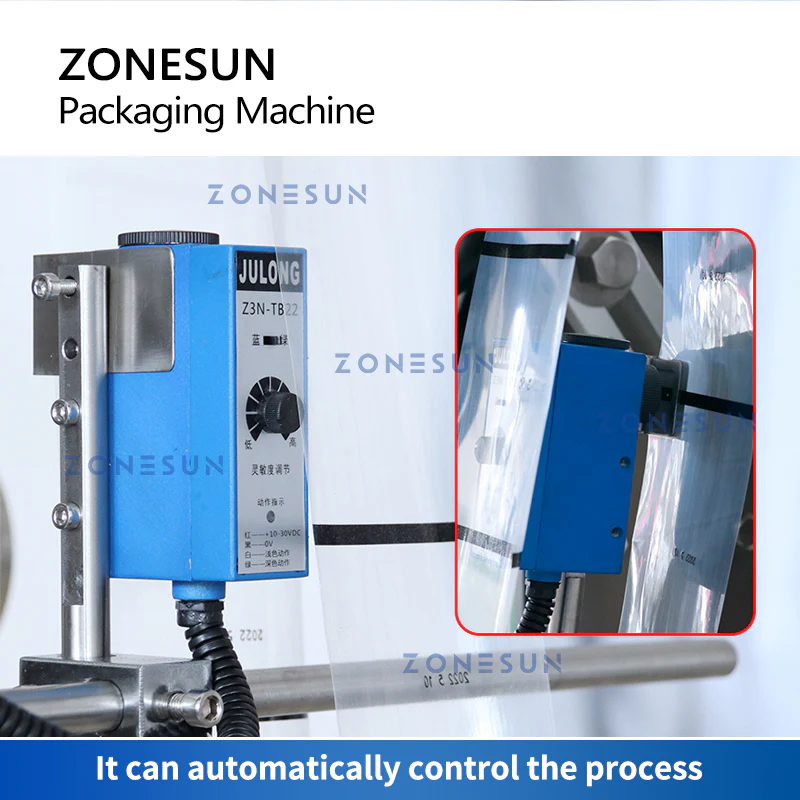

PHOTOELECTRIC EYE
It is equipped with a photoelectric eye. It can automatically control the process, including feeding, printing, filling, and sealing.

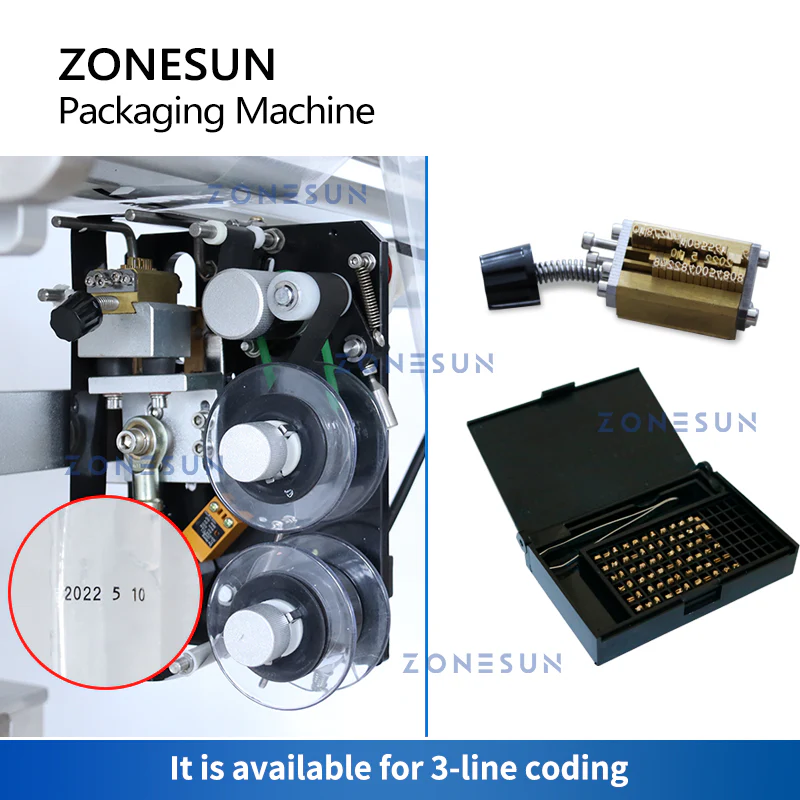

CODER
This machine comes with an optional coder with a set of dies. It is available for 3-line coding.
FORMING PART
The forming part helps shape the packets. It needs customization.
SEALING PART
The sealing parts include the vertical part and the horizontal part. The temperature is adjustable for both parts. They are made of heat-resistant material and have a long lifetime.
