ZONESUN ZS-GTU1 Pneumatic Paste Filling Machine With Mixer
DESCRIPTION

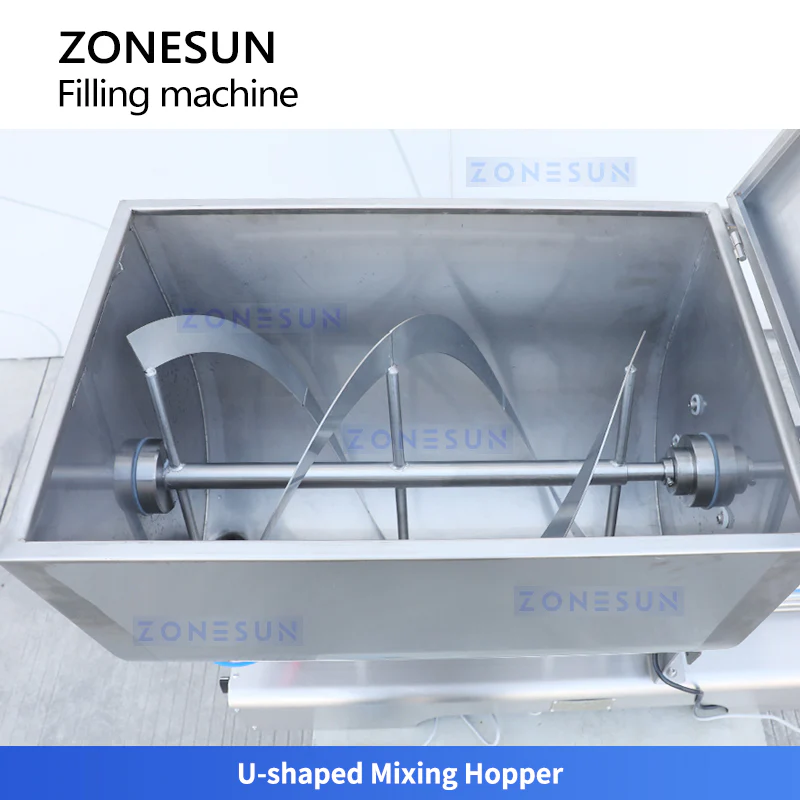

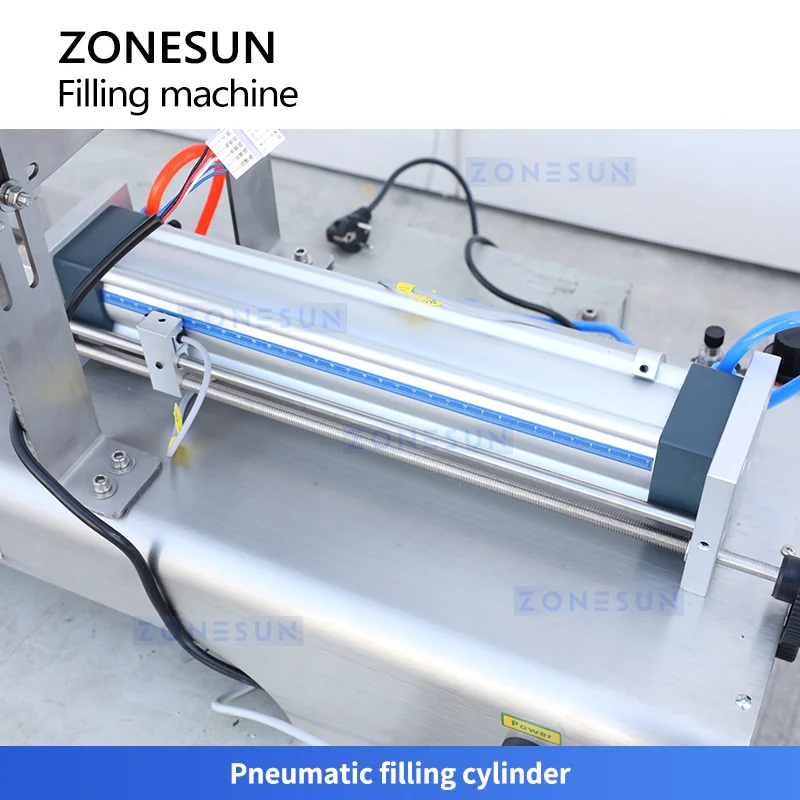

The ZONESUN ZS-GTU1 Pneumatic Paste Filling Machine is engineered for precision filling of high-viscosity materials such as honey, chili sauce, sesame paste, and thick condiments. Equipped with a built-in mixing function, it ensures consistent texture and flow during operation. Available with 1, 2, or 4 customizable filling nozzles, this machine supports a wide range of filling volumes from 10ml to 5000ml. Its pneumatic system delivers accurate dosing with ≤1% deviation, making it ideal for food, cosmetic, and chemical industries. Compact yet powerful, it operates at speeds of 8–25 bottles per minute and is compatible with both 110V and 220V power supplies.
PARAMETER
-
Machine Model：ZS-GTU1
-
Voltage：220V / 110V
-
Filling Nozzles：1 / 2 / 4 nozzles (customizable)
-
Filling Range：10–100 ml / 10–200 ml / 30–300 ml / 50–500 ml / 100–1000 ml / 500–2500 ml / 1000–5000 ml
-
Filling Speed：8–25 bottles/min
-
Filling Accuracy：≤1%
-
Air Pressure：0.4–0.6 MPa
-
Machine Size (L×W×H)：1130 × 315 × 740 mm
-
Net Weight：54.5 kg
-
Packing Size (L×W×H)：1280 × 515 × 810 mm
- Gross Weight：76 kg
DESCRIPTION
The ZONESUN ZS-GTU1 Pneumatic Paste Filling Machine is engineered for precision filling of high-viscosity materials such as honey, chili sauce, sesame paste, and thick condiments. Equipped with a built-in mixing function, it ensures consistent texture and flow during operation. Available with 1, 2, or 4 customizable filling nozzles, this machine supports a wide range of filling volumes from 10ml to 5000ml. Its pneumatic system delivers accurate dosing with ≤1% deviation, making it ideal for food, cosmetic, and chemical industries. Compact yet powerful, it operates at speeds of 8–25 bottles per minute and is compatible with both 110V and 220V power supplies.
PARAMETER
-
Machine Model：ZS-GTU1
-
Voltage：220V / 110V
-
Filling Nozzles：1 / 2 / 4 nozzles (customizable)
-
Filling Range：10–100 ml / 10–200 ml / 30–300 ml / 50–500 ml / 100–1000 ml / 500–2500 ml / 1000–5000 ml
-
Filling Speed：8–25 bottles/min
-
Filling Accuracy：≤1%
-
Air Pressure：0.4–0.6 MPa
-
Machine Size (L×W×H)：1130 × 315 × 740 mm
-
Net Weight：54.5 kg
-
Packing Size (L×W×H)：1280 × 515 × 810 mm
- Gross Weight：76 kg
