ZONESUN ZS-BFM2 Paper Carton Forming Folding Machine Carton Making Equipment
DESCRIPTION

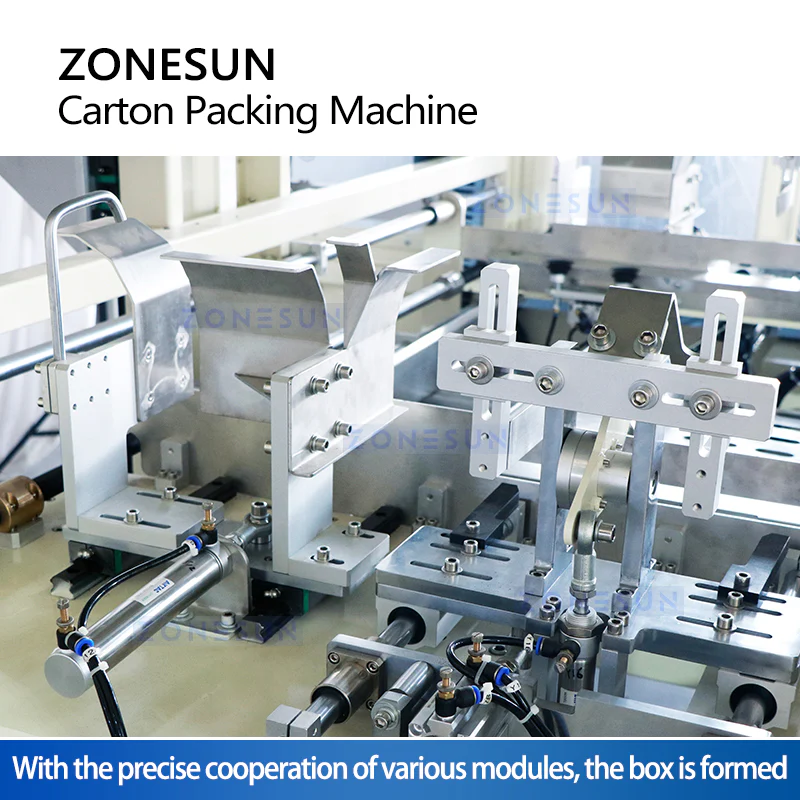

This carton box forming machine typically takes flat sheets of cardboard or paperboard as input and transforms them into three-dimensional boxes with predefined shapes and dimensions(boxes shaped can be customized as production need). The machine may perform several functions in the box-forming process, includes flat sheet feeding, folding and stapling. It is suitable for different kinds of industries like hardware accessories, daily chemical, daily necessities.
Parameter
- Machine model: ZS-BFM2
- Voltage power: 220V 60HZ 3.5KW
- Air pressure: 0.6–0.8MPa
- Air consumption: 450NL/min
- Applicable carton size: Customized
- Working capacity: 600–800 pcs/h
- Error range between cartons: ±0.2%
- Carton thickness: single-layer corrugated paper ≥ 2mm
- Carton strength: 1370KPa
- Machine size: About 2200×2200×2000mm (L×W×H)
- Machine weight: About 780kg
DESCRIPTION
This carton box forming machine typically takes flat sheets of cardboard or paperboard as input and transforms them into three-dimensional boxes with predefined shapes and dimensions(boxes shaped can be customized as production need). The machine may perform several functions in the box-forming process, includes flat sheet feeding, folding and stapling. It is suitable for different kinds of industries like hardware accessories, daily chemical, daily necessities.
Parameter
- Machine model: ZS-BFM2
- Voltage power: 220V 60HZ 3.5KW
- Air pressure: 0.6–0.8MPa
- Air consumption: 450NL/min
- Applicable carton size: Customized
- Working capacity: 600–800 pcs/h
- Error range between cartons: ±0.2%
- Carton thickness: single-layer corrugated paper ≥ 2mm
- Carton strength: 1370KPa
- Machine size: About 2200×2200×2000mm (L×W×H)
- Machine weight: About 780kg
Original: $29,499.00
-70%$29,499.00
$8,849.70Description
DESCRIPTION
This carton box forming machine typically takes flat sheets of cardboard or paperboard as input and transforms them into three-dimensional boxes with predefined shapes and dimensions(boxes shaped can be customized as production need). The machine may perform several functions in the box-forming process, includes flat sheet feeding, folding and stapling. It is suitable for different kinds of industries like hardware accessories, daily chemical, daily necessities.
Parameter
- Machine model: ZS-BFM2
- Voltage power: 220V 60HZ 3.5KW
- Air pressure: 0.6–0.8MPa
- Air consumption: 450NL/min
- Applicable carton size: Customized
- Working capacity: 600–800 pcs/h
- Error range between cartons: ±0.2%
- Carton thickness: single-layer corrugated paper ≥ 2mm
- Carton strength: 1370KPa
- Machine size: About 2200×2200×2000mm (L×W×H)
- Machine weight: About 780kg
