ZONESUN ZS-CSPM1 Automatic Carton Sealing Line with H-Type Tape Finish

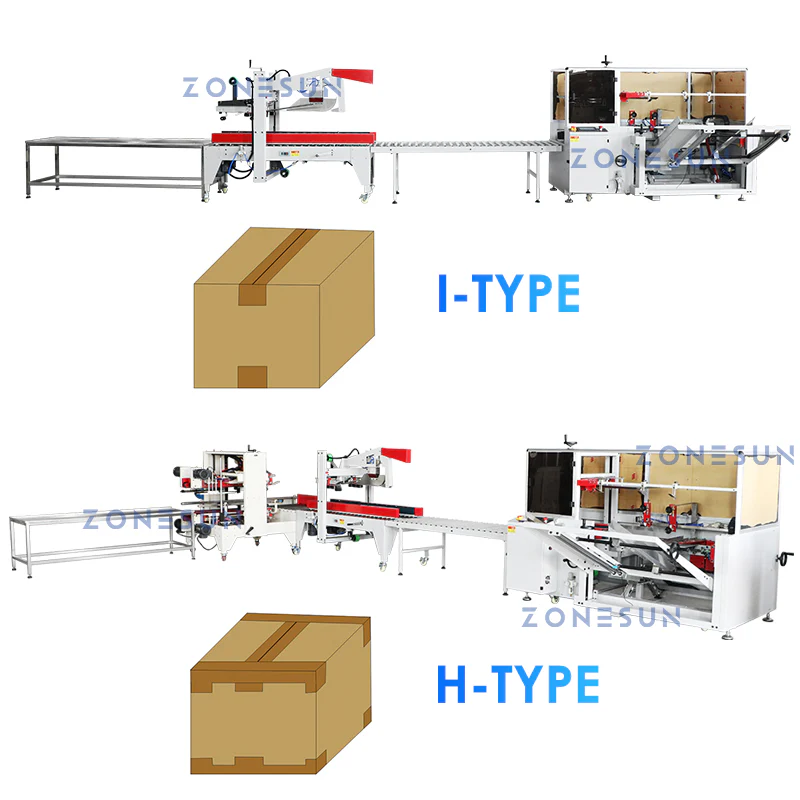

The ZONESUN ZS-CSPM1 is a fully automated carton sealing production line designed to streamline packaging operations. It includes a high-efficiency carton erector (ZS-CF50H) for forming and bottom sealing, followed by two precision carton sealers (ZS-FXC50 and ZS-FK8001) that apply top, bottom, and 4-edge tape patterns. This system ensures secure, consistent sealing with minimal material waste, delivering an H-type sealing effect ideal for shipping and logistics. With adjustable dimensions, fast throughput, and compatibility with various carton sizes, it’s a powerful solution for industrial packaging environments.
ZS-CF50H Carton Erector – Technical Specifications
Parameter Details
Model ZS-CF50H
Power Supply 220V / 50Hz
Maximum Carton Size 450 × 400 × 400 mm
Minimum Carton Size 250 × 200 × 150 mm
Working Height 600 mm
Sealing Speed 6–10 boxes per minute
Taping Pattern Bottom taping
Applicable Tape Size Width: 48–75 mm / Length: ≤914 mm
Machine Dimensions Approx. 2200 × 2050 × 1450 mm
Machine Weight Approx. 400 kg

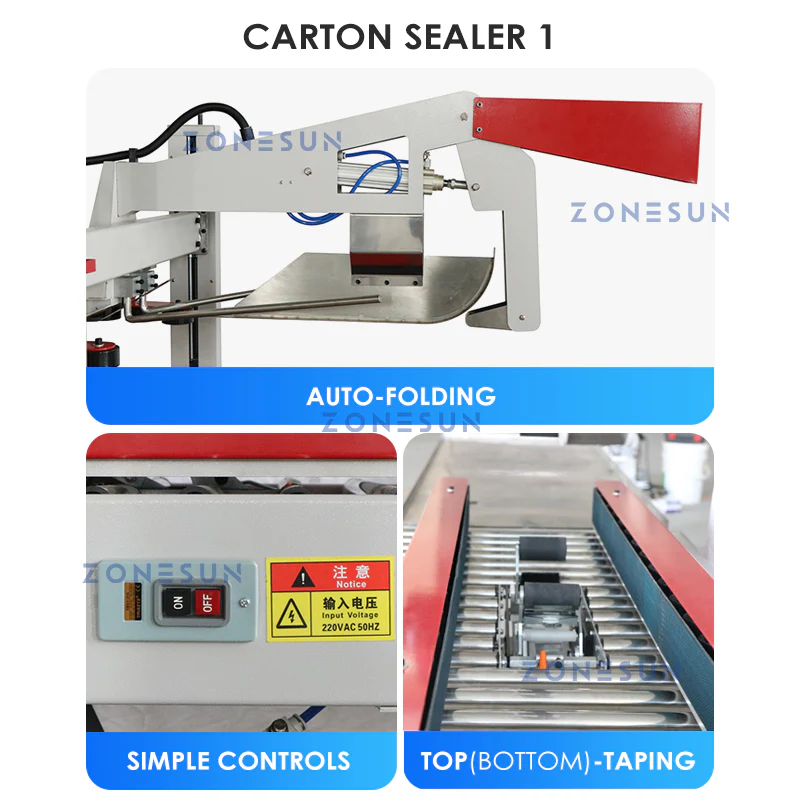

ZS-FXC50 Carton Sealer – Technical Specifications
Parameter Details
Model ZS-FXC50
Power Supply 220V / 50Hz
Power Consumption 240W
Maximum Carton Size 600 × 500 × 500 mm
Minimum Carton Size 250 × 180 × 180 mm
Conveying Speed 0–20 meters per minute
Taping Pattern Top & Bottom
Applicable Tape Width Approx. 67–100 mm
Machine Dimensions Approx. 1820 × 850 × 1450 mm
Machine Weight Approx. 130 kg

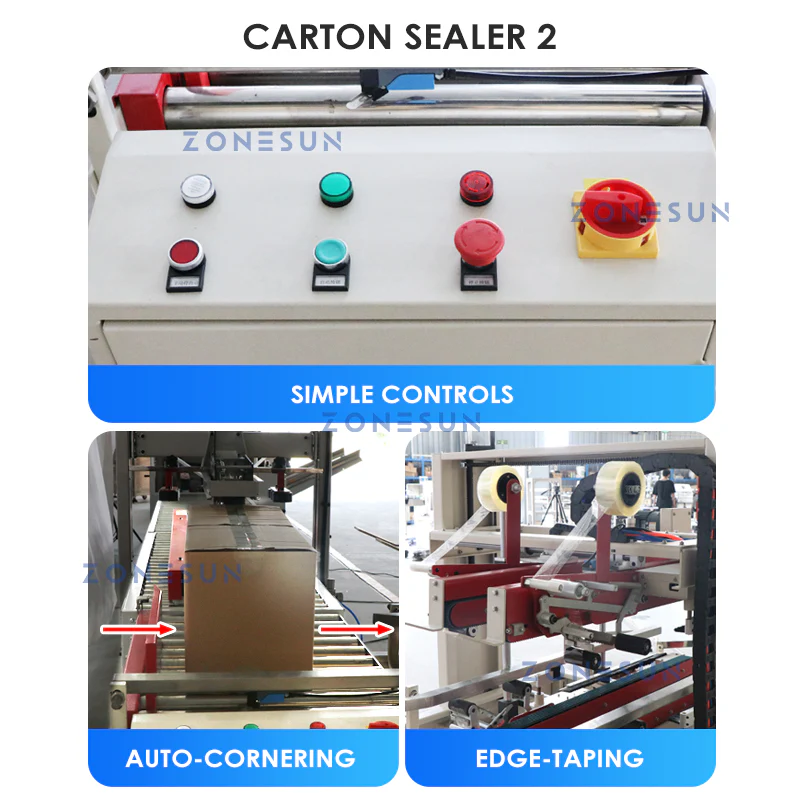

ZS-FK8001 Carton Sealer – Technical Specifications
Parameter Details
Model ZS-FK8001
Voltage 220V / 50–60Hz
Power Consumption 1000W
Sealing Speed 17.5 meters per minute
Taping Pattern 4-edge sealing
Applicable Tape Width 60–78 mm
Tape Head Size 50–70 mm (Adjustable)
Sealing Length Range 200–500 mm
Sealing Width Range 320–500 mm
Sealing Height Range 180–500 mm
Work Surface Height 660–740 mm (Adjustable)
Required Air Pressure 5–6 kg/cm²
Machine Dimensions Approx. 1970 × 1100 × 1470 mm
Machine Weight Approx. 400 kg
The ZONESUN ZS-CSPM1 is a fully automated carton sealing production line designed to streamline packaging operations. It includes a high-efficiency carton erector (ZS-CF50H) for forming and bottom sealing, followed by two precision carton sealers (ZS-FXC50 and ZS-FK8001) that apply top, bottom, and 4-edge tape patterns. This system ensures secure, consistent sealing with minimal material waste, delivering an H-type sealing effect ideal for shipping and logistics. With adjustable dimensions, fast throughput, and compatibility with various carton sizes, it’s a powerful solution for industrial packaging environments.
ZS-CF50H Carton Erector – Technical Specifications
Parameter Details
Model ZS-CF50H
Power Supply 220V / 50Hz
Maximum Carton Size 450 × 400 × 400 mm
Minimum Carton Size 250 × 200 × 150 mm
Working Height 600 mm
Sealing Speed 6–10 boxes per minute
Taping Pattern Bottom taping
Applicable Tape Size Width: 48–75 mm / Length: ≤914 mm
Machine Dimensions Approx. 2200 × 2050 × 1450 mm
Machine Weight Approx. 400 kg
ZS-FXC50 Carton Sealer – Technical Specifications
Parameter Details
Model ZS-FXC50
Power Supply 220V / 50Hz
Power Consumption 240W
Maximum Carton Size 600 × 500 × 500 mm
Minimum Carton Size 250 × 180 × 180 mm
Conveying Speed 0–20 meters per minute
Taping Pattern Top & Bottom
Applicable Tape Width Approx. 67–100 mm
Machine Dimensions Approx. 1820 × 850 × 1450 mm
Machine Weight Approx. 130 kg
ZS-FK8001 Carton Sealer – Technical Specifications
Parameter Details
Model ZS-FK8001
Voltage 220V / 50–60Hz
Power Consumption 1000W
Sealing Speed 17.5 meters per minute
Taping Pattern 4-edge sealing
Applicable Tape Width 60–78 mm
Tape Head Size 50–70 mm (Adjustable)
Sealing Length Range 200–500 mm
Sealing Width Range 320–500 mm
Sealing Height Range 180–500 mm
Work Surface Height 660–740 mm (Adjustable)
Required Air Pressure 5–6 kg/cm²
Machine Dimensions Approx. 1970 × 1100 × 1470 mm
Machine Weight Approx. 400 kg
Original: $12,999.00
-70%$12,999.00
$3,899.70Description
