ZONESUN ZS-FAL180B1 Liquid Filling Capping Labeling Cartoning Line

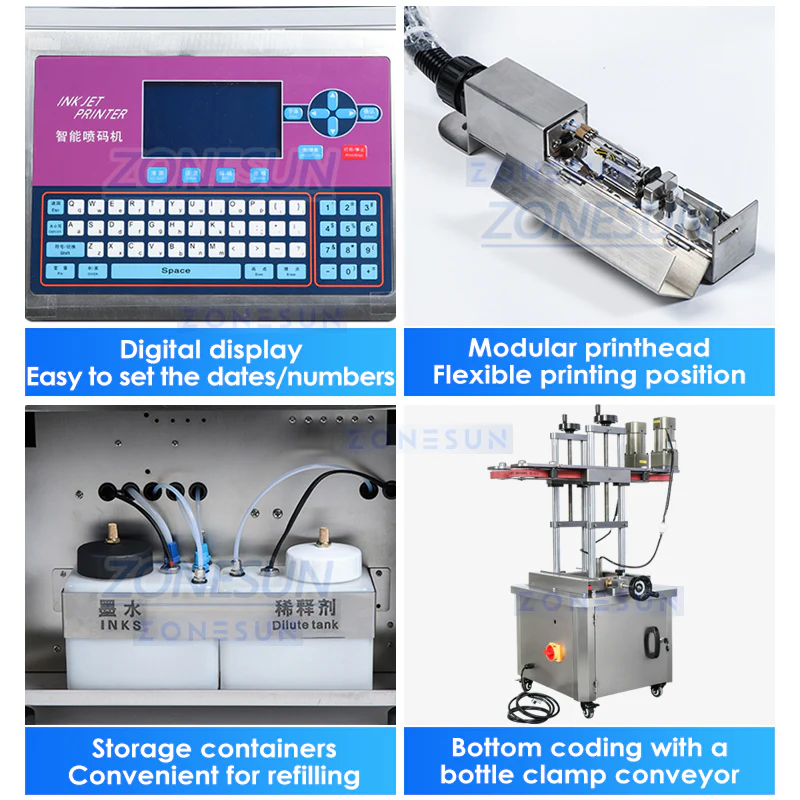

The ZS-FAL180B1 is a fully automatic packaging line that integrates bottle unscrambling, liquid filling, capping, labeling, coding, and cartoning into one seamless system. Designed for high efficiency and minimal labor input, it’s ideal for liquid bottling operations across industries such as cosmetics, pharmaceuticals, and food. ZONESUN delivers a complete solution to streamline your production and elevate packaging precision.
ZONESUN ZS-LP750 Bottle Unscrambler – Technical Specifications
Parameter Specification
Machine Model ZS-LP750
Voltage 110/220V, 50–60Hz
Machine Power < 500W
Rotary Plate Diameter 755mm
Suitable Bottle Diameter Customized to your bottle specifications
Working Speed 20–80 bottles/min
Machine Dimensions Approx. 570 × 685 × 1325 mm
Machine Weight Approx. 177 kg
Package Dimensions Approx. 1110 × 1080 × 1490 mm
Package Weight Approx. 208 kg
ZONESUN ZS-AFC13 Automatic Filling & Capping Machine – Technical Specifications
Parameter Specification
Machine Model ZS-AFC13
Voltage 220V / 110V, 50–60Hz
Power 1000W
Filling Pump Type Peristaltic Pump
Working Speed Approx. 15–20 bottles/min (depends on bottle & liquid)
Max Flow Rate 2L/min per nozzle (based on water)
Suitable Bottle Size Customizable
Bottle Cap Diameter Customizable
Air Pressure 0.6–0.8 MPa
Package Dimensions Approx. 1800 × 1070 × 1760 mm
Gross Weight Approx. 445 kg
ZONESUN ZS-TB260R Automatic Labeling Machine – Technical Specifications
Parameter Specification
Model ZS-TB260R
Power Supply AC 220V, 50/60Hz, 1000W
Labeling Capacity 25–50 bottles/min (depends on bottle size)
Labeling Accuracy ±1.0 mm
Suitable Bottle Diameter Φ12–100 mm
Label Size Length: 20–300 mm, Height: 15–150 mm (customizable)
Label Roll Inner Diameter Φ76 mm
Label Roll Outer Diameter Φ350 mm
Conveyor Size (W × L) 112 × 2000 mm
Machine Dimensions (L × W × H) Approx. 2000 × 820 × 1380 mm
Machine Weight Approx. 180 kg
Packing Dimensions (L × W × H) Approx. 2100 × 980 × 1520 mm
Package Weight Approx. 250 kg
ZONESUN ZS-MSZH50 Automatic Cartoner – Technical Specifications
Parameter Specification
Model ZS-MSZH50
Power Supply 110V / 220V / 380V
Power Approx. 0.75 kW
Workflow Material feeding → Box opening → Product insertion → Flap tucking → Box sealing → Finished product output
Efficiency Approx. 30–60 pcs/min
Paper Box Requirements 300–450g/m³; indentation ≥0.4mm; pre-folded; no glue leakage
Suitable Box Size Skincare: 120–200 × 30–70 × 20–50 mm (L×W×H) <br> Facial masks: 135–200 × 100–150 × 20–40 mm (L×W×H) <br> (Customizable)
Air Pressure Approx. 0.6–0.8 MPa
Air Consumption Approx. 130 L/h
