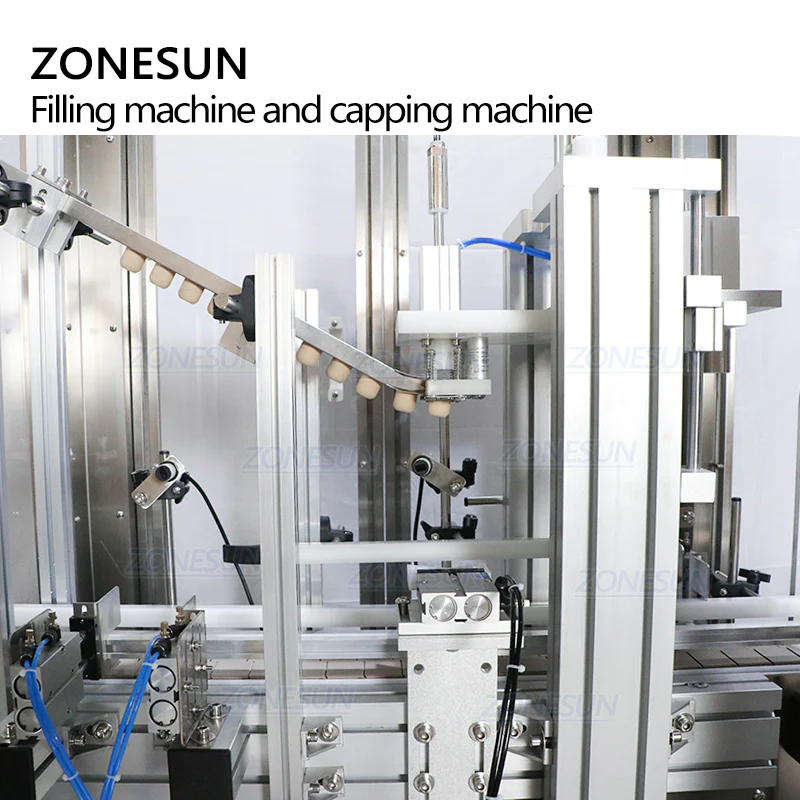

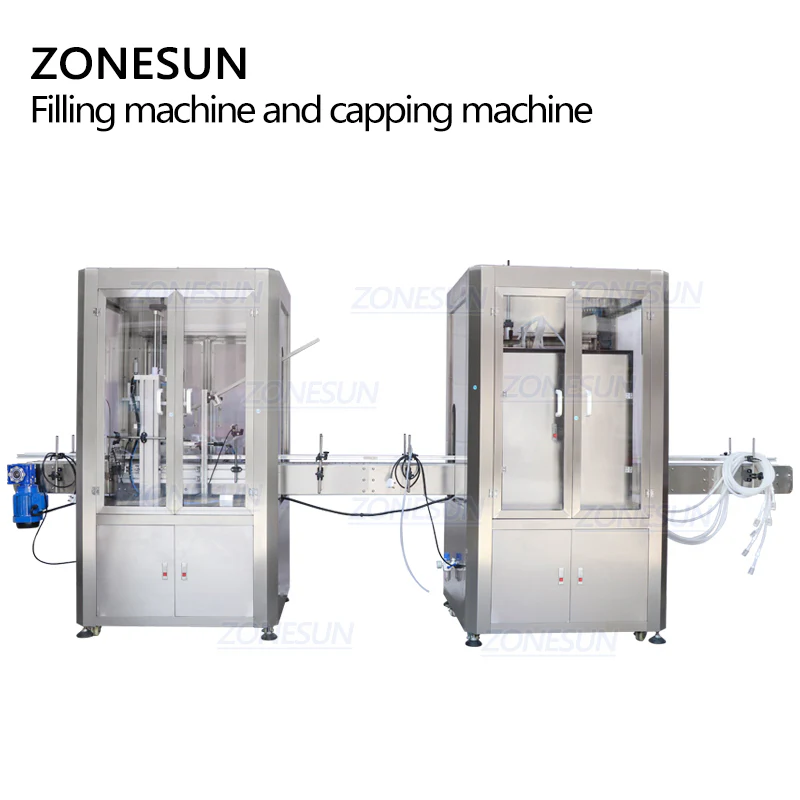

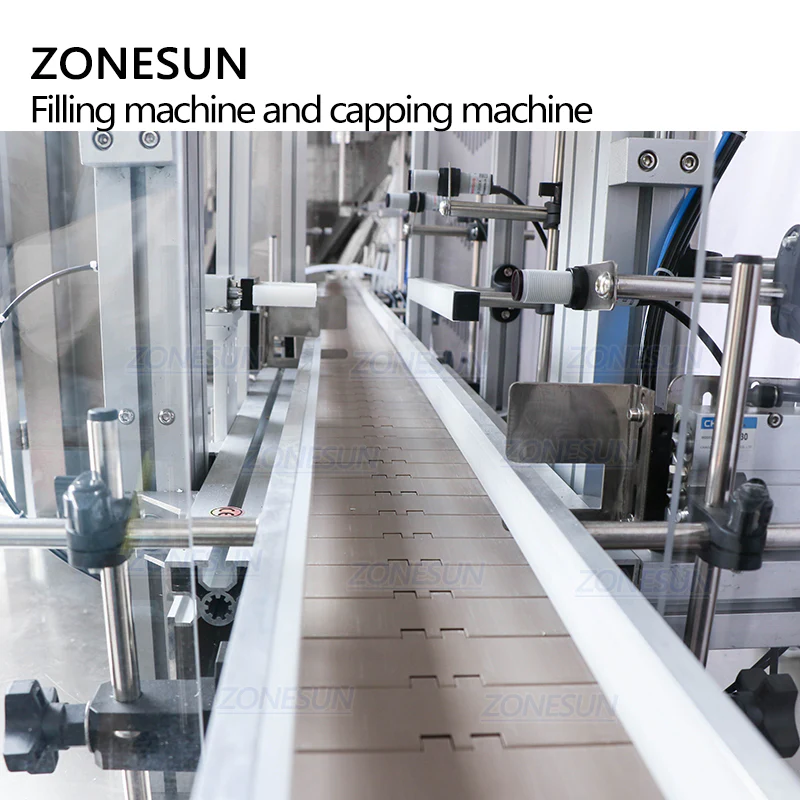

ZONESUN 6-Head Liquid Filling & Cork Capping Machine with Cover
The ZONESUN 6-Head Liquid Filling and Cork Pressing Capping Machine is a compact, automated production line combining high-speed liquid filling and precise cork pressing. Equipped with a dust cover to ensure hygiene and product quality, this system is ideal for pharmaceutical, cosmetic, and beverage industries. The ZS-VTMP80D filling unit offers multiple flow rate options and high accuracy, while the ZS-XG16D capping unit handles a wide range of bottle and cap sizes. Both machines are customizable to meet specific production needs and can be integrated with an automatic labeling machine for full automation.
Parameter Specification
Machine Model ZS-VTMP80D Filling Machine
Container Size φ20–100mm, Height 30–300mm
Max Flow Rate 5500ml/min, 7500ml/min, 12000ml/min
Pump Material 304 Stainless Steel / 316 Stainless Steel
Filling Accuracy ≤100ml: deviation ≤1ml<br>>100ml: deviation ≤1% (based on water)
Filling Speed 20–50 pcs/min<br>25–60 pcs/min<br>50–70 pcs/min<br>(depends on bottle and liquid type)
Power Supply 220V-50Hz / 110V-60Hz
Total Machine Power 2000W
Air Compressor Connector 8mm
Machine Weight Approx. 285kg
Packing Weight Approx. 390kg
Packing Size Approx. 1970 × 1020 × 2050mm
Product Specifications: ZS-XG16D Automatic Capping Machine
Parameter Specification
Machine Model ZS-XG16D
Bottle Height 30–300mm
Cap Diameter 18–70mm
Bottle Diameter 20–160mm
Working Voltage AC220V / 110V, 50–60Hz
Working Pressure 0.4–0.6MPa
Working Speed 20–60 bottles/min (depends on bottle & cap size/shape)
Machine Dimensions Approx. 1000 × 900 × 1800mm
Packing Size Approx. 1970 × 1020 × 2030mm
Net/Gross Weight Approx. 243kg / 350kg
The ZONESUN 6-Head Liquid Filling and Cork Pressing Capping Machine is a compact, automated production line combining high-speed liquid filling and precise cork pressing. Equipped with a dust cover to ensure hygiene and product quality, this system is ideal for pharmaceutical, cosmetic, and beverage industries. The ZS-VTMP80D filling unit offers multiple flow rate options and high accuracy, while the ZS-XG16D capping unit handles a wide range of bottle and cap sizes. Both machines are customizable to meet specific production needs and can be integrated with an automatic labeling machine for full automation.
Parameter Specification
Machine Model ZS-VTMP80D Filling Machine
Container Size φ20–100mm, Height 30–300mm
Max Flow Rate 5500ml/min, 7500ml/min, 12000ml/min
Pump Material 304 Stainless Steel / 316 Stainless Steel
Filling Accuracy ≤100ml: deviation ≤1ml<br>>100ml: deviation ≤1% (based on water)
Filling Speed 20–50 pcs/min<br>25–60 pcs/min<br>50–70 pcs/min<br>(depends on bottle and liquid type)
Power Supply 220V-50Hz / 110V-60Hz
Total Machine Power 2000W
Air Compressor Connector 8mm
Machine Weight Approx. 285kg
Packing Weight Approx. 390kg
Packing Size Approx. 1970 × 1020 × 2050mm
Product Specifications: ZS-XG16D Automatic Capping Machine
Parameter Specification
Machine Model ZS-XG16D
Bottle Height 30–300mm
Cap Diameter 18–70mm
Bottle Diameter 20–160mm
Working Voltage AC220V / 110V, 50–60Hz
Working Pressure 0.4–0.6MPa
Working Speed 20–60 bottles/min (depends on bottle & cap size/shape)
Machine Dimensions Approx. 1000 × 900 × 1800mm
Packing Size Approx. 1970 × 1020 × 2030mm
Net/Gross Weight Approx. 243kg / 350kg
Original: $10,599.00
-70%$10,599.00
$3,179.70Description
The ZONESUN 6-Head Liquid Filling and Cork Pressing Capping Machine is a compact, automated production line combining high-speed liquid filling and precise cork pressing. Equipped with a dust cover to ensure hygiene and product quality, this system is ideal for pharmaceutical, cosmetic, and beverage industries. The ZS-VTMP80D filling unit offers multiple flow rate options and high accuracy, while the ZS-XG16D capping unit handles a wide range of bottle and cap sizes. Both machines are customizable to meet specific production needs and can be integrated with an automatic labeling machine for full automation.
Parameter Specification
Machine Model ZS-VTMP80D Filling Machine
Container Size φ20–100mm, Height 30–300mm
Max Flow Rate 5500ml/min, 7500ml/min, 12000ml/min
Pump Material 304 Stainless Steel / 316 Stainless Steel
Filling Accuracy ≤100ml: deviation ≤1ml<br>>100ml: deviation ≤1% (based on water)
Filling Speed 20–50 pcs/min<br>25–60 pcs/min<br>50–70 pcs/min<br>(depends on bottle and liquid type)
Power Supply 220V-50Hz / 110V-60Hz
Total Machine Power 2000W
Air Compressor Connector 8mm
Machine Weight Approx. 285kg
Packing Weight Approx. 390kg
Packing Size Approx. 1970 × 1020 × 2050mm
Product Specifications: ZS-XG16D Automatic Capping Machine
Parameter Specification
Machine Model ZS-XG16D
Bottle Height 30–300mm
Cap Diameter 18–70mm
Bottle Diameter 20–160mm
Working Voltage AC220V / 110V, 50–60Hz
Working Pressure 0.4–0.6MPa
Working Speed 20–60 bottles/min (depends on bottle & cap size/shape)
Machine Dimensions Approx. 1000 × 900 × 1800mm
Packing Size Approx. 1970 × 1020 × 2030mm
Net/Gross Weight Approx. 243kg / 350kg
