ZONESUN ZS-FAL180C9 Automatic Square Bottle Filling Capping Labeling Line

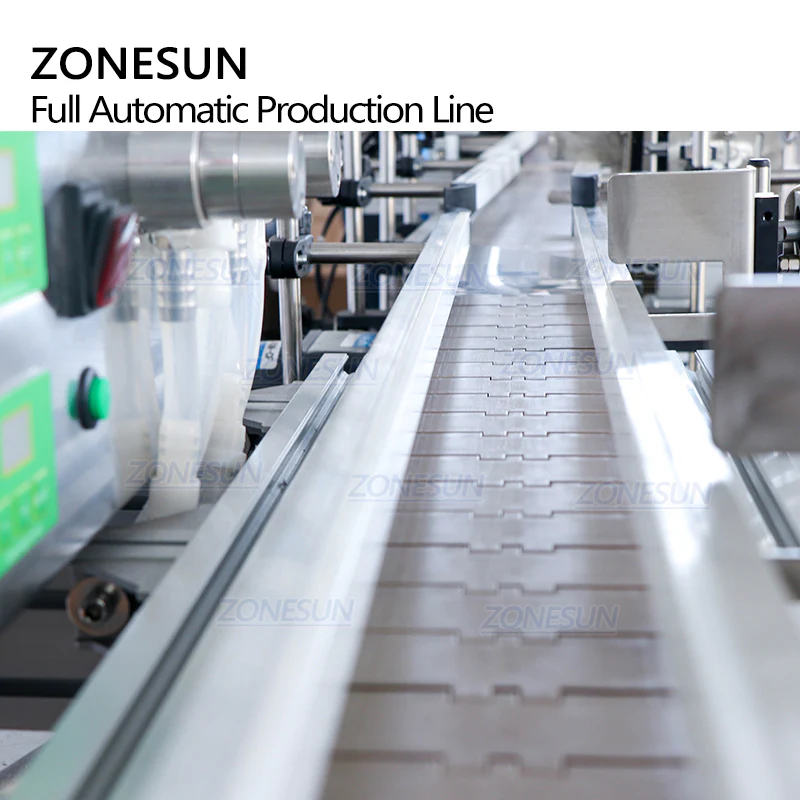

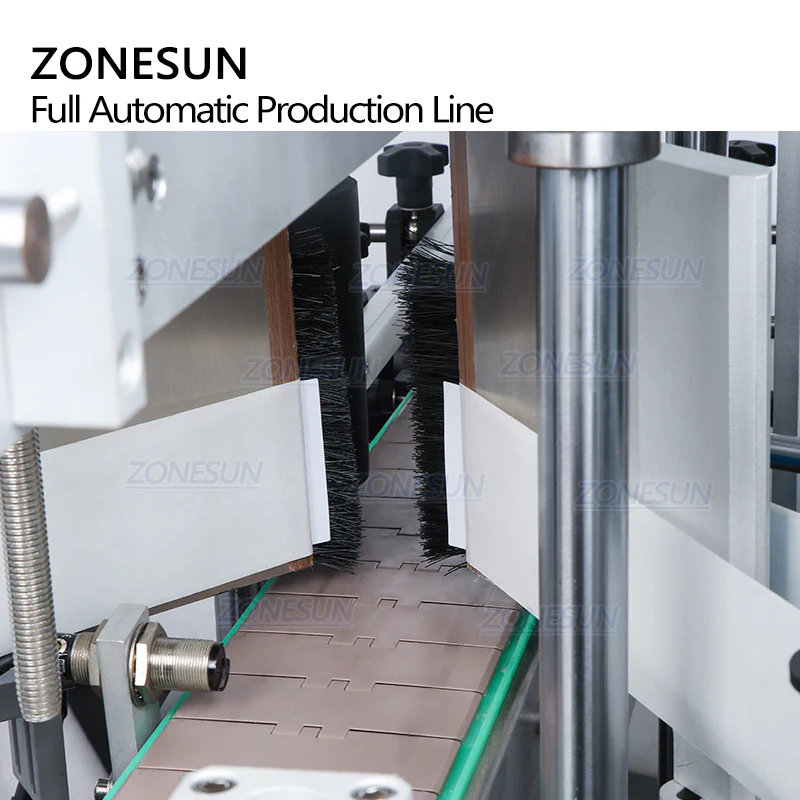

The ZONESUN ZS-FAL180C9 is a fully automatic production line designed for square bottle packaging of low-viscosity liquids such as perfume, essential oil, and milk. It integrates a magnetic pump filling machine, capping machine, and double-side labeling system into one streamlined solution. The PLC control panel allows easy parameter setup, while the high-quality chain conveyor ensures smooth transport of large-volume containers. Equipped with intelligent electric eye detection and four independently controlled magnetic pump heads, the system delivers precise, efficient filling. The versatile capping head accommodates various cap shapes, and the labeling unit ensures accurate positioning for single or double-sided labeling. Ideal for cosmetic, pharmaceutical, and beverage industries.
Liquid Filling Machine Specifications – Model ZS-DTMP4Y
Specification Details
Model ZS-DTMP4Y
Power Supply 110V / 220V, 50–60Hz, 300W
Max Flow Rate 5500 ml/min per nozzle (based on water)
Working Speed 20–30 bottles/min
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤±1% (for water)
Filling Nozzle Diameter Standard: 8 mm & 6 mm
Delay Range 0–9999 ms
Count Range 1–99999 times
Air Compressor Connector Size OD 6 mm / 8 mm
Package Size (L×W×H) Approx. 1150 × 650 × 820 mm
Net Weight / Gross Weight Approx. 59 kg / 89 kg

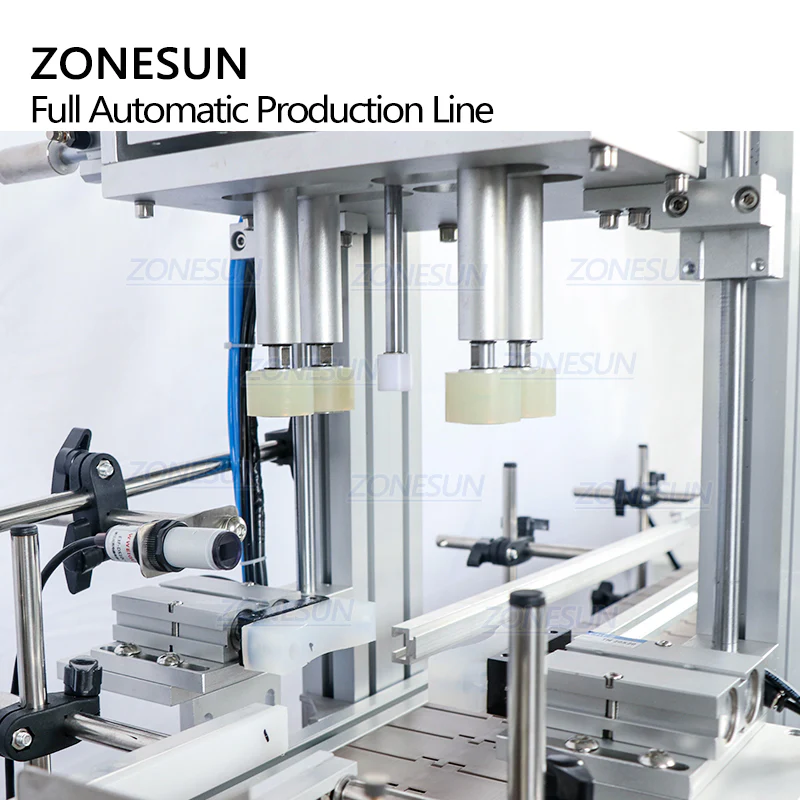

Bottle Capping Machine – Technical Specifications
Specification Details
Applicable Bottle Height 60–270 mm
Cap Diameter Range 18–70 mm
Working Speed 20–40 bottles/min (varies by bottle & cap)
Power Supply AC 220V / 110V, 50–60Hz
Air Pressure Requirement 0.4–0.6 MPa
Conveyor Length 1117 mm
Air Compressor Connector Size Outer Diameter 8 mm (OD 8 mm)
Machine Dimensions (L×W×H) Approx. 1120 × 580 × 1110 mm
Package Dimensions (L×W×H) Approx. 1160 × 610 × 1140 mm
Net Weight / Gross Weight Approx. 69 kg / 97 kg
Labeling Machine Specifications – Model ZS-TB300M
Specification Details
Model ZS-TB300M
Voltage 110V–60Hz / 220V–50Hz
Power 3100W
Working Speed 30–100 bottles/min
Labeling Accuracy ±0.5 mm
Max Label Size ≤200 mm (Width) – Customizable
Label Roll Inner Diameter Φ75 mm
Label Roll Outer Diameter Φ250 mm
Applicable Bottle Size Diameter ≤100 mm, Height ≤350 mm
Conveyor Dimensions Approx. 1800 × 100 mm
Machine Dimensions (L×W×H) Approx. 1800 × 1130 × 1300 mm
Machine Weight Approx. 208 kg
