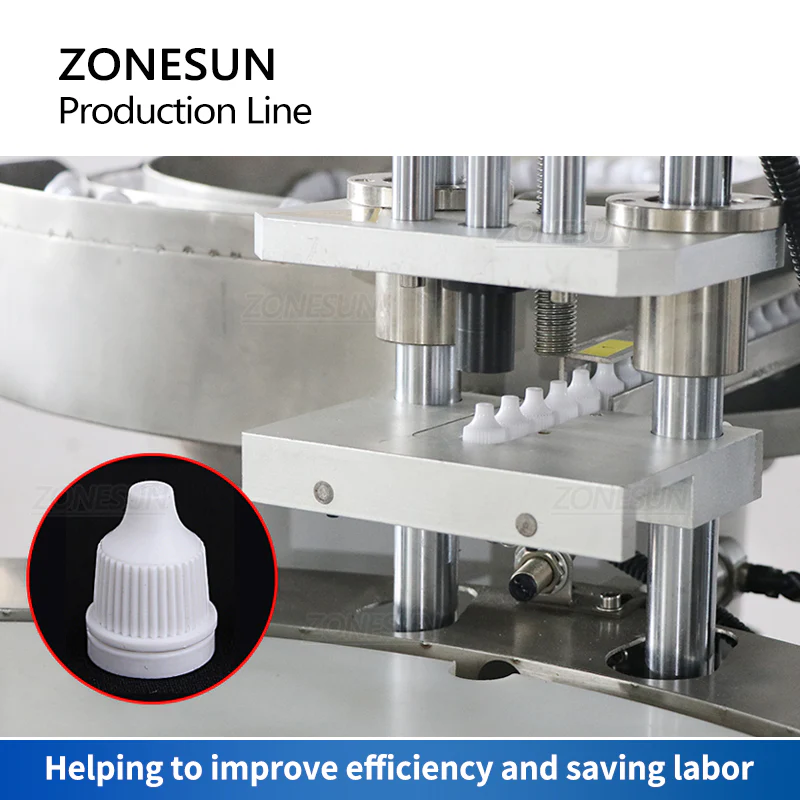

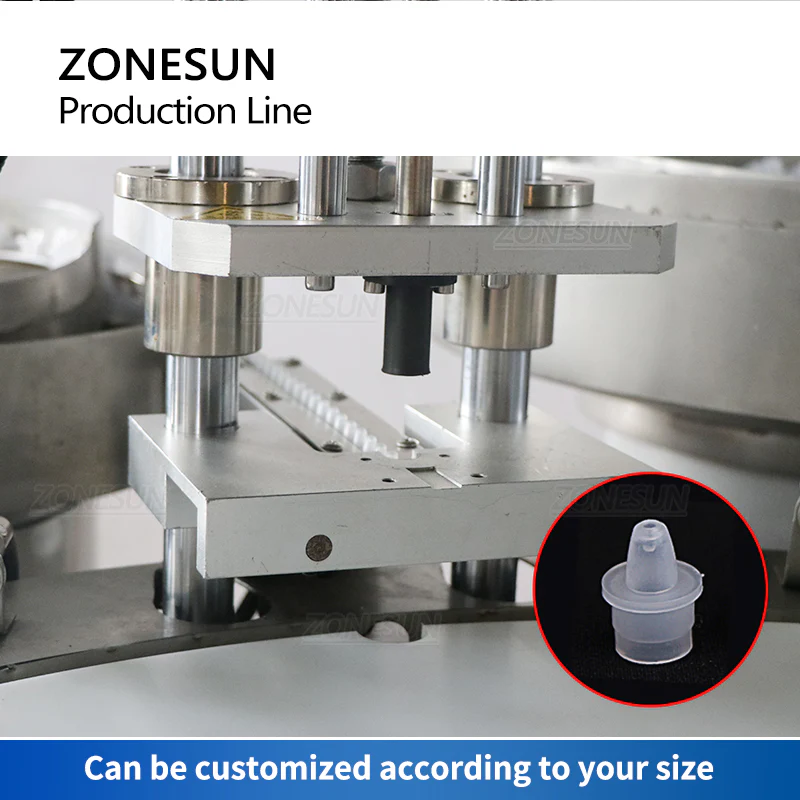

ZONESUN ZS-FAL180A10 Liquid Filling Line for Essential Oils & Eye Drops
The ZONESUN ZS-FAL180A10 is a fully automatic liquid production line equipped with a peristaltic pump system for hygienic and precise filling. Designed for high-efficiency operations, it integrates bottle arranging, liquid filling, plug and cap feeding, capping, and labeling into one streamlined process. Ideal for essential oils, eye drops, and other small-dose liquid products, this machine supports customization for various container sizes and cap types. With a working speed of 15–20 bottles per minute and a max flow rate of 2L/min per nozzle, it offers reliable performance for pharmaceutical, cosmetic, and chemical industries.Note: Bottle size and cap diameter are customizable. Air compressor required.
ZONESUN ZS-AFC13 Automatic Liquid Filling Machine
Technical Specifications
Parameter Specification
Machine Model ZS-AFC13
Voltage 220V / 110V, 50–60Hz
Power 1000W
Filling Pump Type Peristaltic Pump
Working Speed Approx. 15–20 bottles/min (varies by size)
Max Flow Rate 2L/min per nozzle (based on water)
Bottle Size Customizable
Cap Diameter Customizable
Air Pressure 0.6–0.8 MPa
Package Dimensions Approx. 1800 × 1070 × 1760 mm
Gross Weight Approx. 445 kg
The ZONESUN ZS-FAL180A10 is a fully automatic liquid production line equipped with a peristaltic pump system for hygienic and precise filling. Designed for high-efficiency operations, it integrates bottle arranging, liquid filling, plug and cap feeding, capping, and labeling into one streamlined process. Ideal for essential oils, eye drops, and other small-dose liquid products, this machine supports customization for various container sizes and cap types. With a working speed of 15–20 bottles per minute and a max flow rate of 2L/min per nozzle, it offers reliable performance for pharmaceutical, cosmetic, and chemical industries.Note: Bottle size and cap diameter are customizable. Air compressor required.
ZONESUN ZS-AFC13 Automatic Liquid Filling Machine
Technical Specifications
Parameter Specification
Machine Model ZS-AFC13
Voltage 220V / 110V, 50–60Hz
Power 1000W
Filling Pump Type Peristaltic Pump
Working Speed Approx. 15–20 bottles/min (varies by size)
Max Flow Rate 2L/min per nozzle (based on water)
Bottle Size Customizable
Cap Diameter Customizable
Air Pressure 0.6–0.8 MPa
Package Dimensions Approx. 1800 × 1070 × 1760 mm
Gross Weight Approx. 445 kg
Original: $17,699.00
-70%$17,699.00
$5,309.70Description
The ZONESUN ZS-FAL180A10 is a fully automatic liquid production line equipped with a peristaltic pump system for hygienic and precise filling. Designed for high-efficiency operations, it integrates bottle arranging, liquid filling, plug and cap feeding, capping, and labeling into one streamlined process. Ideal for essential oils, eye drops, and other small-dose liquid products, this machine supports customization for various container sizes and cap types. With a working speed of 15–20 bottles per minute and a max flow rate of 2L/min per nozzle, it offers reliable performance for pharmaceutical, cosmetic, and chemical industries.Note: Bottle size and cap diameter are customizable. Air compressor required.
ZONESUN ZS-AFC13 Automatic Liquid Filling Machine
Technical Specifications
Parameter Specification
Machine Model ZS-AFC13
Voltage 220V / 110V, 50–60Hz
Power 1000W
Filling Pump Type Peristaltic Pump
Working Speed Approx. 15–20 bottles/min (varies by size)
Max Flow Rate 2L/min per nozzle (based on water)
Bottle Size Customizable
Cap Diameter Customizable
Air Pressure 0.6–0.8 MPa
Package Dimensions Approx. 1800 × 1070 × 1760 mm
Gross Weight Approx. 445 kg
