DESCRIPTION

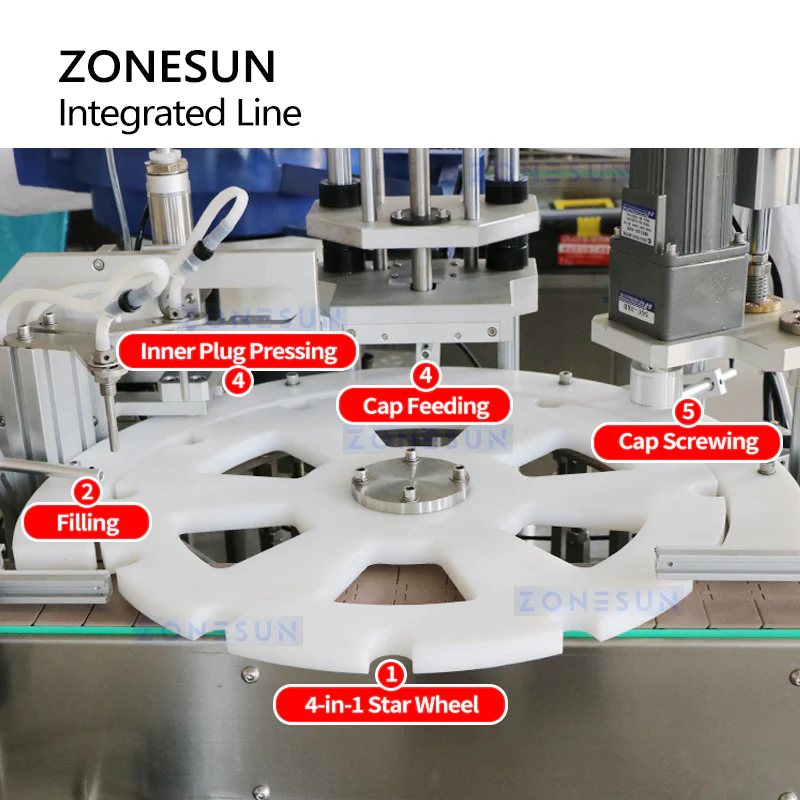

This bottle packaging line is a complete solution for businesses looking to improve their packaging process. The line includes a high-quality filling and capping 4-in-1 machine, a reliable sleeve labeling machine, and a precision shrink tunnel. With this packaging line, you can efficiently package your bottles with ease and accuracy. Whatever your packaging needs are, you can rely on ZONESUN.

Parameter - ZS-TB602

• Machine Model: ZS-TB602
• Voltage: 220V, 50–60Hz
• Labeling Speed: Approx. 30–60 pcs/min (depending on product and label size)
• Label Size: Customizable
• Suitable Product Size: Customizable
• Machine Size: Approx. 2410 × 879 × 1511mm
• Package Size: Approx. 2100 × 900 × 1600mm
• Net Weight / Gross Weight: Approx. 220kg / 352kg

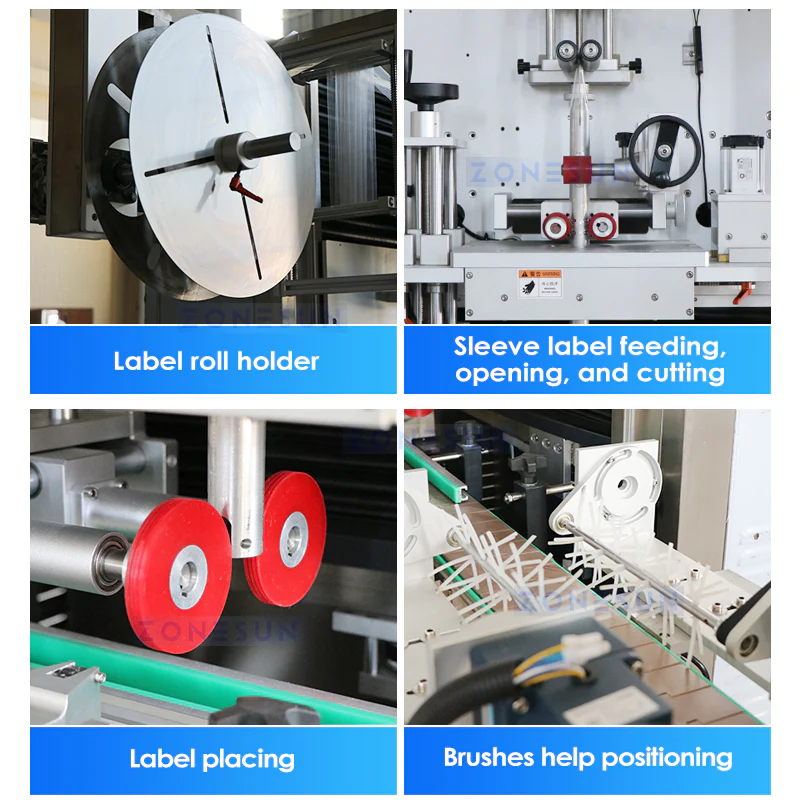

Parameter - ZS-STB150

• Sleeve Labeling Machine: ZS-STB150
• Bottle Diameter Range: φ28mm–φ125mm (customizable)
• Bottle Height: 30mm–280mm (customizable)
• Label Length: 30mm–250mm (customizable)
• Label Thickness: 0.03mm–0.13mm (PVC, PET, OPS)
• Sleeve Standard Error: ±1.5mm
• Paper Tube Inner Diameter: 5"–10" (adjustable)
• Machine Speed: 150 bottles/min (based on label length)
• Voltage: 220V, Single Phase
• Power: 1.5kW
• Conveyor Belt: Standard 2M
• Machine Size: Approx. 2950 × 1030 × 1870mm
• Machine Weight: Approx. 464kg
• Package Size: Approx. 2250 × 1250 × 2140mm
• Package Weight: Approx. 493kg

Parameter - Tunnel

• Tunnel Length: Approx. 1800mm
• Tunnel Width: Approx. 395mm
• Tunnel Height: Approx. 360mm
• Suitable Bottle Diameter: ≤80mm
• Conveyor Height: Approx. 900mm
• Machine Size: Approx. 3050 × 480 × 1330mm
• Machine Weight: Approx. 86kg
• Package Size: Approx. 1905 × 610 × 1720mm
• Package Weight: Approx. 143kg
