ZONESUN ZS-FAL180S Tabletop Liquid Filling Capping Sealing Line

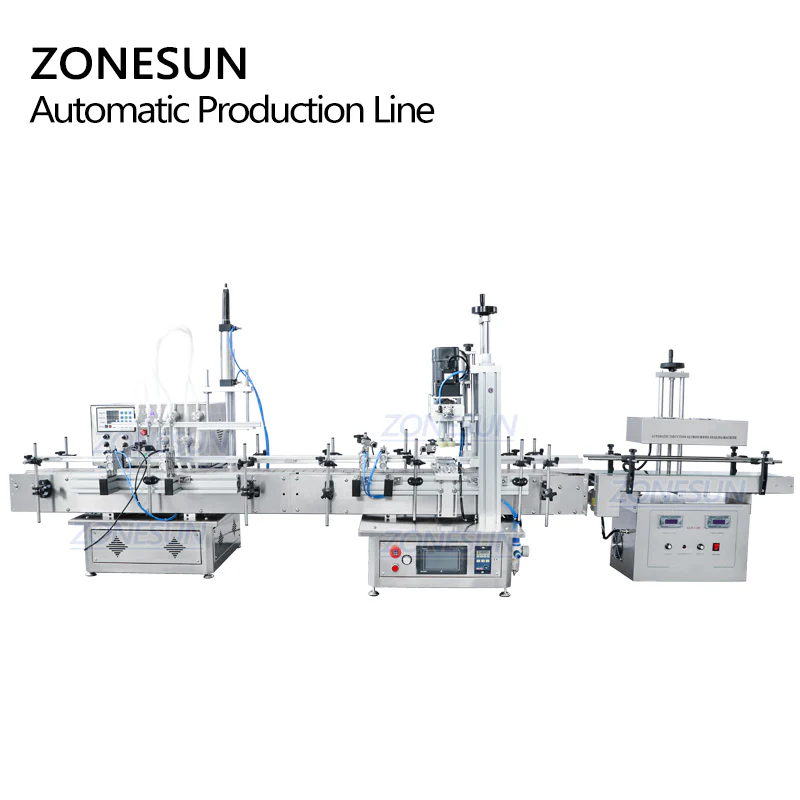

The ZONESUN ZS-FAL180S is a compact, fully automated tabletop production line that integrates liquid filling, bottle capping, and induction sealing into one streamlined system. Equipped with four diving nozzles, it efficiently handles foamy and low-viscosity liquids such as essential oils, juice, milk, and ink. Magnetic pumps ensure precise filling, while the capping unit accommodates various cap shapes and sizes. The induction sealing machine applies secure aluminum foil seals to plastic bottles, enhancing product safety and shelf life. With intelligent bottle detection via electric eye and customizable bottle height options, this line is ideal for small-scale pharmaceutical, cosmetic, and beverage production.
ZS-DTMP4AL Technical Specification Table
Item Specification
Machine Model ZS-DTMP4AL
Power Supply 110/220V, 50–60Hz, 300W
Max Flow Velocity 5500mL/min (per nozzle, based on water)
Working Speed 20–30 bottles/min
Air Pressure 0.3–0.4MPa
Filling Accuracy ≤±1% (based on water)
Filling Nozzle Diameter 6/8mm
Delay Range 0.01–999.9s
Counting Range 1–99999 times
Filling Volume 3–1000mL
Air Compressor Connector Size OD 8mm
Bottle Height <220mm (customizable, max 300mm)
Machine Dimensions Approx. 1110mm × 580mm × 1110mm
Package Dimensions Approx. 1150mm × 610mm × 1210mm
Net/Gross Weight Approx. 50kg / 83kg
Capping Machine
Bottle Height 60–270mm
Bottle Cap Diameter 18–70mm
Working Speed 20–40 bottles/min (depends on bottle and cap size)
Working Voltage AC 220V/110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Conveyor Length 1117mm
Air Compressor Connector Size OD 8mm
Machine Dimensions Approx. 1110mm × 580mm × 1070mm
Package Dimensions Approx. 1150mm × 610mm × 800mm
Net/Gross Weight Approx. 67kg / 97kg
ZS-FK1300 Induction Sealing Machine – Technical Specification
Item Specification
Machine Model ZS-FK1300
Voltage AC 220V/110V, 50–60Hz
Max Power 1300W
Sealing Diameter Φ10–70mm
Suitable Bottle Height 20–300mm
Suitable Bottle Diameter Within 150mm
Max Sealing Speed 2400 bottles/hour (depends on bottle size & material)
Conveyor Size 150mm (W) × 760mm (L)
Cooling Method Air cooling
Machine Material Stainless Steel
Machine Dimensions Approx. 790mm × 330mm × 860mm
Package Dimensions Approx. 900mm × 410mm × 510mm
Net/Gross Weight Approx. 27kg / 30kg
