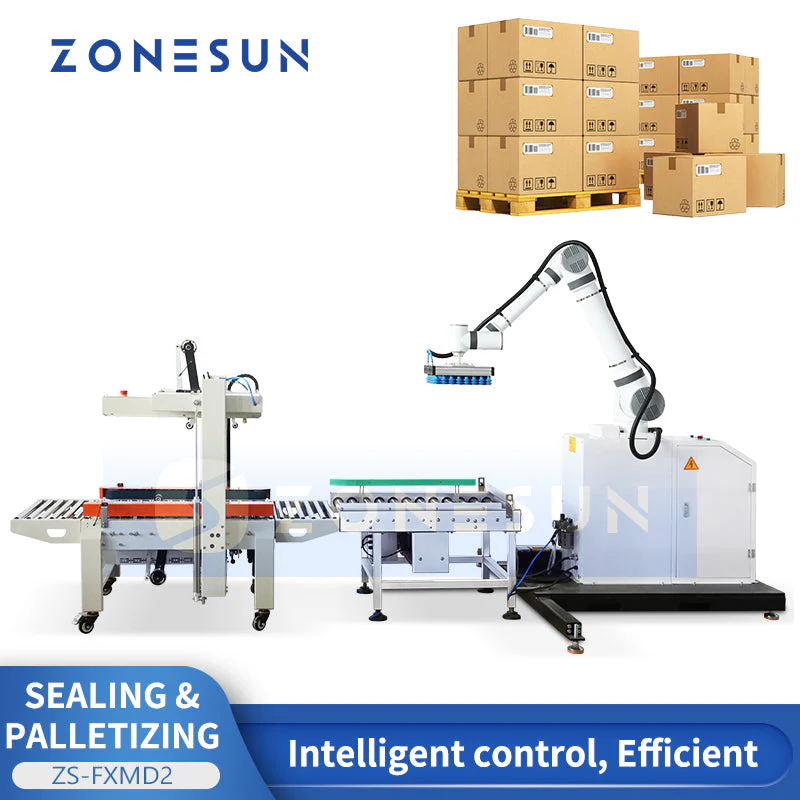

Automated Case Sealing and Palletizing Production Line

This production line integrates an automatic case sealing machine with a robotic palletizer, offering a fully automated end-of-line packaging solution. After products are packed into cartons, the case sealer automatically seals the carton flaps with high efficiency and consistency. The sealed cartons are then conveyed to the palletizer, which systematically stacks them onto pallets based on a preset pattern, ensuring stable and space-efficient loads.

PLC control system with user-friendly touchscreen interface

Ideal for industries such as food & beverage, daily chemicals, pharmaceuticals, and logistics

This automated solution significantly reduces labor costs, increases packaging speed, and enhances overall production efficiency.

PARAMETER

Model  : ZS-FKC5040X Cartoning Machine

• Machine Power  :  110/220V, 50-60Hz, 240W

• Conveyor Speed  :  18m/min

• Tape Width  :  ≤60m

• Transmission mode  :  Conveyor belt transmission on both sides

• Max Carton Size  :  432*508mm (W*H)

• Min Carton Size  :  355*305*127mm (L*W*H)

• Package Size  :  About 110*100*172mm

Model  :  ZS-MD20A Palletizing System

• Power  :  220V

• permissible load   : 20kg

• working radius  :  1525mm

• Maximum arm exhibition   : 1730mm

• Work speed   : 1.0m/s

• Repeat positioning accuracy  :  ±0.1mm

• Weight   : 85kg

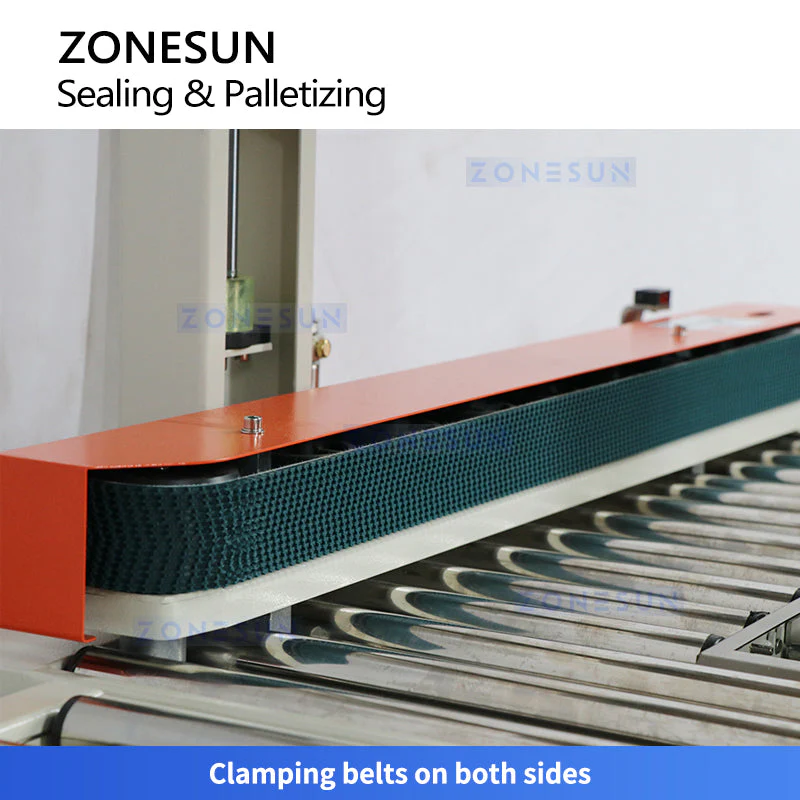

Clamping Belt

Sealing

Taping Mechanism

End Effector
